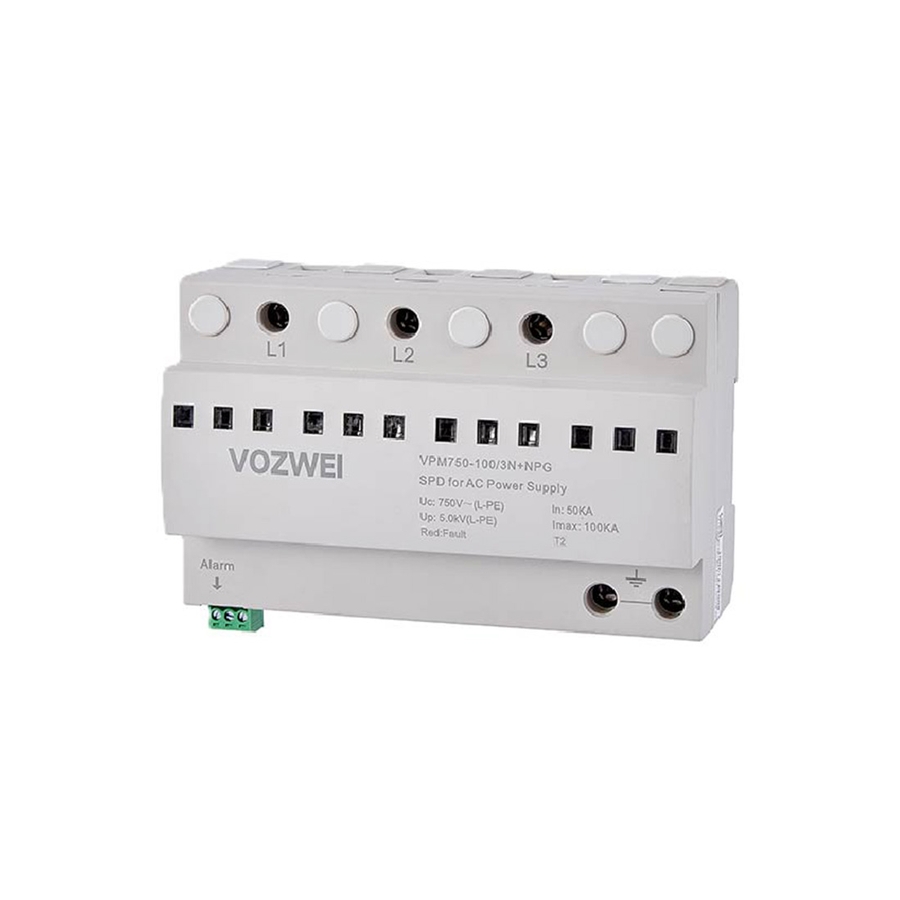

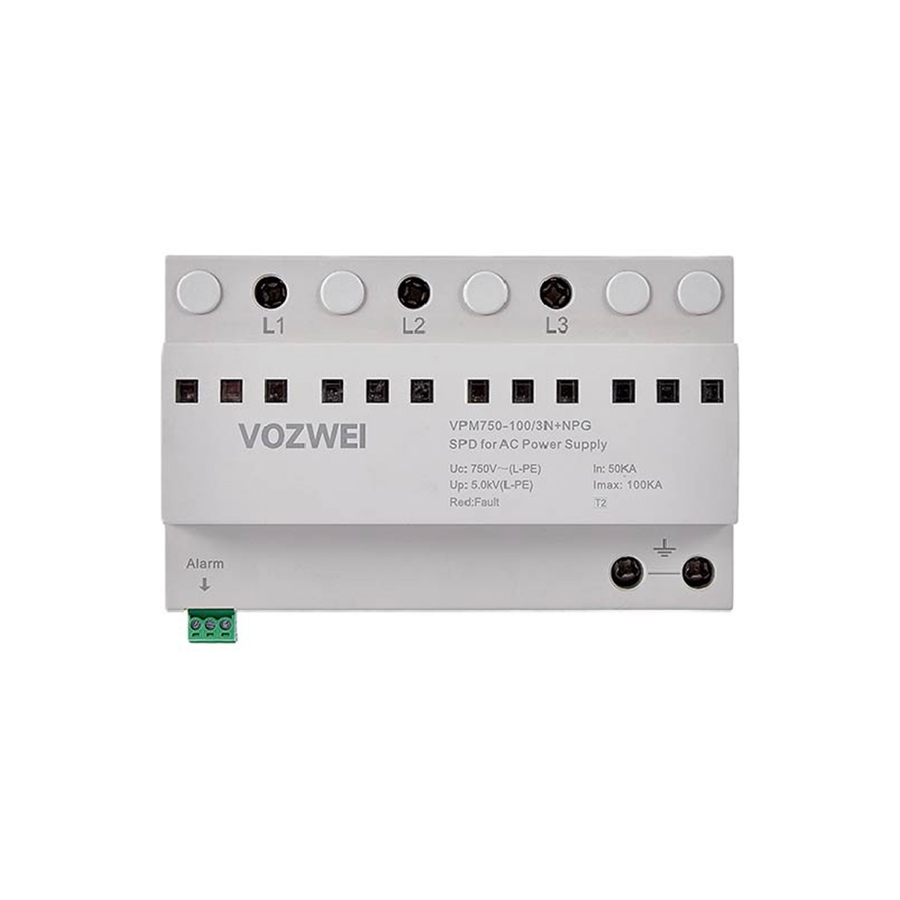

VPM750-100/3N+NPG, AC750V SPD

  • Nominal discharge current In (8/20 μs): 50kA
  • Selectable circuit protection modes: 3+1 mode
  • Rated for 690V AC systems
  • Utilizing high-performance metal oxide varistor (MOV) technology, the device offers high temporary overvoltage (TOV) withstand capability and provides excellent voltage limiting performance
  • Modular pluggable anti-loosening structure, enabling simple installation and easy maintenance
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 2
Protection mode3+1 mode
Nominal operating voltage UnAC 690V 50/60Hz
Max. continuous operating voltage UcAC 750V 50/60Hz
Nominal discharge current In(8/20 μs)50kA
Max. discharge current Imax(8/20 μs)100kA
Voltage protection level Up≤5.0kV
Leakage current≤20 μA
Response time≤100 ns
Max. backup fuse160A gL/gG
Cross-sectional area6~35mm 2
Stripping length terminals12.5mm
Tightening torque3N·m
Normal/Fault IndicationGreen/Red
Remote signaling modeRSC: Remote Signal contact, NC-COM-NO contact
Performances of remote signal contactAC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Remote cross-sectional areaMax. 1.5mm 2
Installation method35mm DIN rail
Housing materialUL94-V0
Protection classIP20
Outline dimensions (without terminal)90mm×144mm×65.5mm (tolerance±1mm)
Module pluggable/
Internal protection deviceThe lightning protection unit has a built-in thermal trip device
