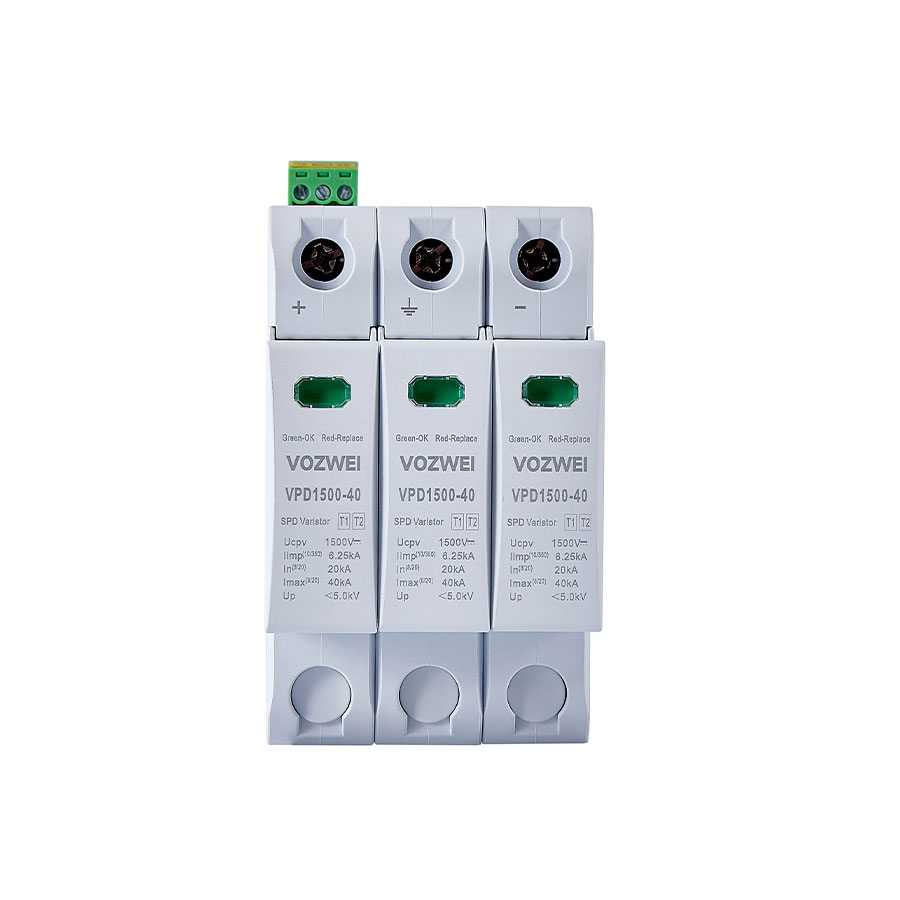

VPD1500, DC1500V SPD

  • Type 1+Type 2 combined protection for high-voltage DC systems
  • Rated up to DC1500V with 6.25kA impulse current and 40kA maximum discharge capacity
  • Fast response below 25ns and low leakage current
  • Pluggable modular design for convenient replacement and maintenance
  • Remote signaling output for centralized monitoring
  • Designed for photovoltaic power systems, energy storage units, and DC distribution networks
Contact us

Technical parameters

Item No.VPD1500-40/3P(T1+T2)
SPD according to EN 50539-11/IEC 61643-31Type1+Type 2 (T1+T2)
Protection mode+/-, +/PE, -/PE
Nominal operating voltage UnDC1250V
Max. continuous operating voltage UcpvDC1500V
Impulse current Iimp(10/350μs)6.25kA
Nominal discharge current In(8/20μs)20kA
Max. discharge current Imax(8/20μs)40kA
Voltage protection level Up≤5.0kV
Rated short-circuit current Iscpv1000A
Response time≤25ns
Max. backup fuse250A gL/gG
Cross-sectional area6~25mm²
Leakage current≤20μA
Tightening torque3N·m
Failure indicatorThe lightning protection module has an indication window, which turns red in the fault state

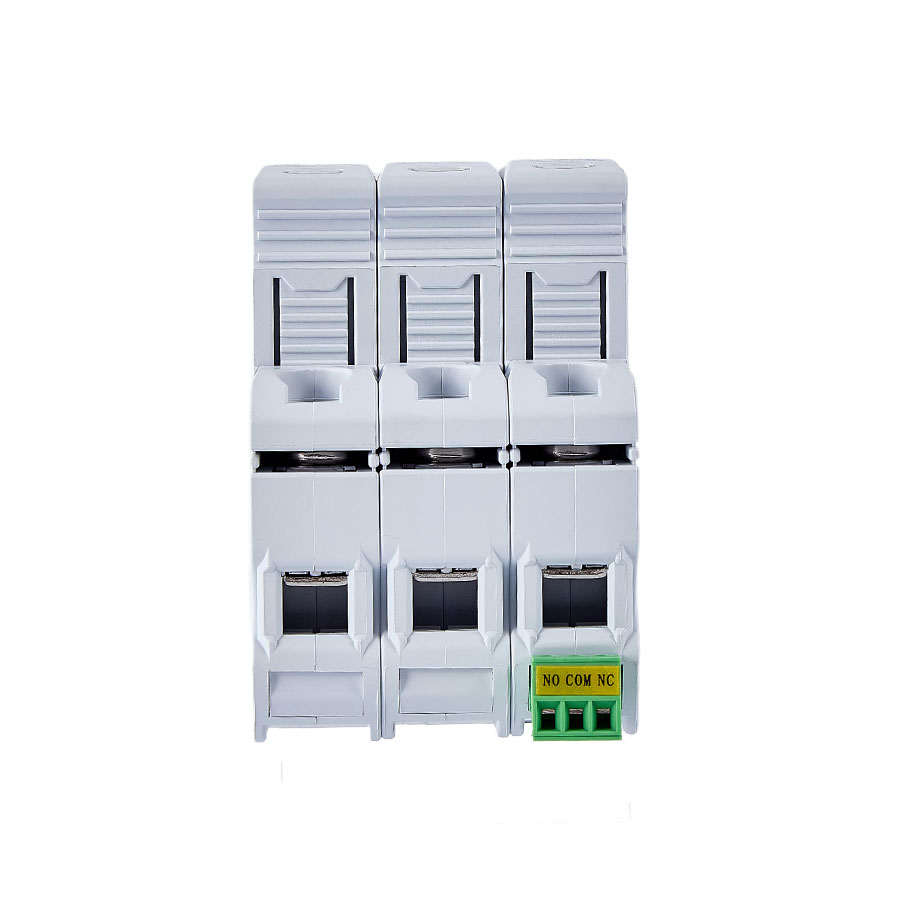

Remote signaling modeRSC: Remote signal contact, NC-COM-NO contact
Performances of remote signal contactAC: 250V/0.5A; DC:250V/0.1A, 125V/0.2A, 75V/0.5A
Remote cross-sectional areaMax. 1.5mm²
Installation method35mm DIN rail
Housing materialUL94-V0
Protection classIP20
Outline dimensions(without terminal)90mm × 54mm × 80.5mm
Operating temperature-40℃~+70℃
Relative humidity≤95%(25℃)
Operating altitude≤2000m

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
