| SPD according to EN/IEC 61643-11 | Type 1+2 |
| Protection mode | V+&V--/PE |
| Nominal operating voltage Un | DC 1250V |
| Max. continuous operating voltage Uc | DC 1500V |
| Impulse current Iimp (10/350 μs) | 6.25kA |
| Nominal discharge current In (8/20 μs) | 20kA |
| Max. discharge current Imax (8/20 μs) | 40kA |
| Voltage protection level Up | ≤5.0kV |
| Rated short-circuit current Iscpv | 1000A |
| Leakage current | ≤20 μA |
| Response time | ≤25 ns |
| Max. backup fuse | 125A gL/gG |
| Cross-sectional area | 6~25mm 2 |
| Tightening torque | 3N·m |
| Normal/Fault Indication | Green/Red |
| Remote signaling mode | RSC: Remote Signal contact, NC-COM-NO contact |
| Performances of remote signal contact | AC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A |
| Remote cross-sectional area | Max. 1.5mm 2 |
| Installation method | 35mm DIN rail |
| Housing material | UL94-V0 |
| Protection class | IP20 |
| Operating temperature | -40℃~+80℃ |
| Relative humidity | ≤95% (25℃) |
| Operating altitude | ≤4000 m |
| Outline dimensions (without terminal) | 90mm×50mm×80.5mm (tolerance±1mm) |
Tips: For more information, please refer to the user manual or specification sheet in the following documentation.

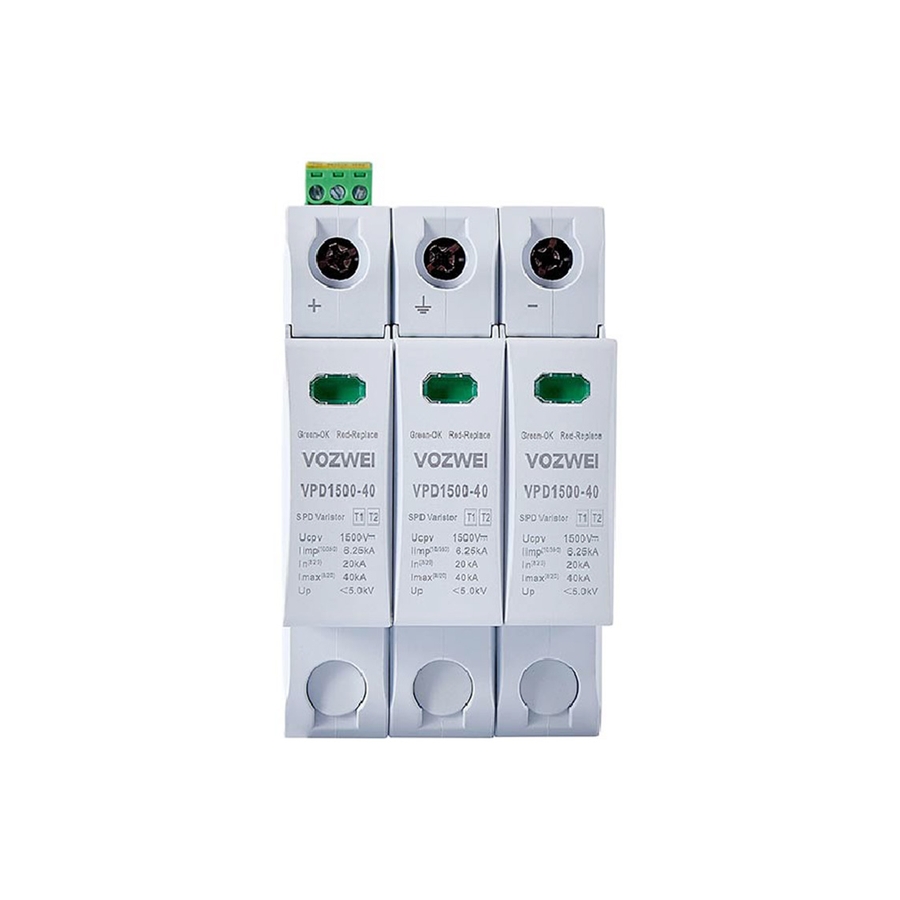

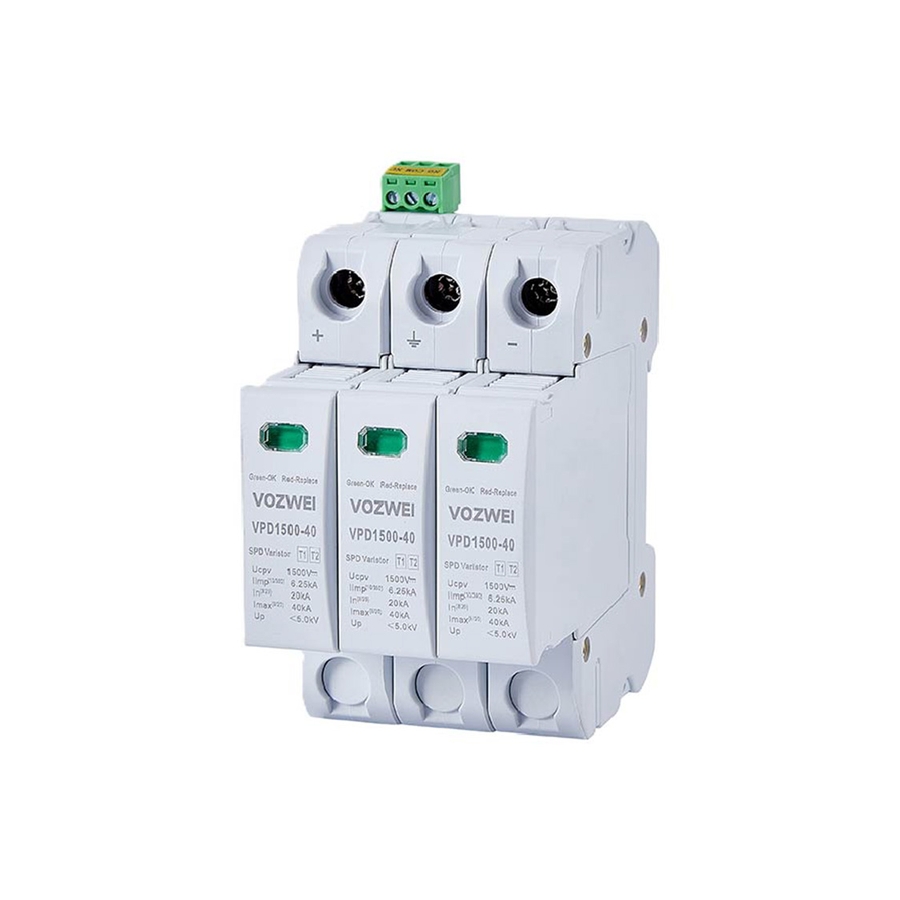

The VPD1500 series are Type 1+Type 2 surge protection devices for DC systems up to 1500V, delivering 6.25kA impulse current and 40kA maximum discharge capacity, ideal for photovoltaic and other high-voltage DC protection applications.
The VPM1000-50/3N+NPG(T1+T2), AC255V/1000V SPD is combined Type 1+Type 2 surge protective devices (SPDs) featuring an integrated design that provides coordinated two-stage protection within a single unit. It enables high-energy impulse current (Iimp) discharge for primary protection at the LPZ0–1 boundary, followed by fine protection with low residual voltage. This makes the series an ideal, space-saving solution for main power inlets and distribution boards in commercial, industrial, and critical infrastructure applications requiring maximum reliability against lightning and surge threats.
VPD1000-40/3P (T1+T2), DC1300V SPD demonstrates high safety, reliability, and exceptional grid compatibility. It is ideally suited for renewable energy applications including photovoltaic and energy storage systems. Designed for installation in DC power distribution systems, converters, inverters, and combiner boxes within LPZ0 to LPZ1 zones, it provides reliable protection for sensitive electrical equipment against damage caused by direct lightning strikes or induced transient overvoltages.
