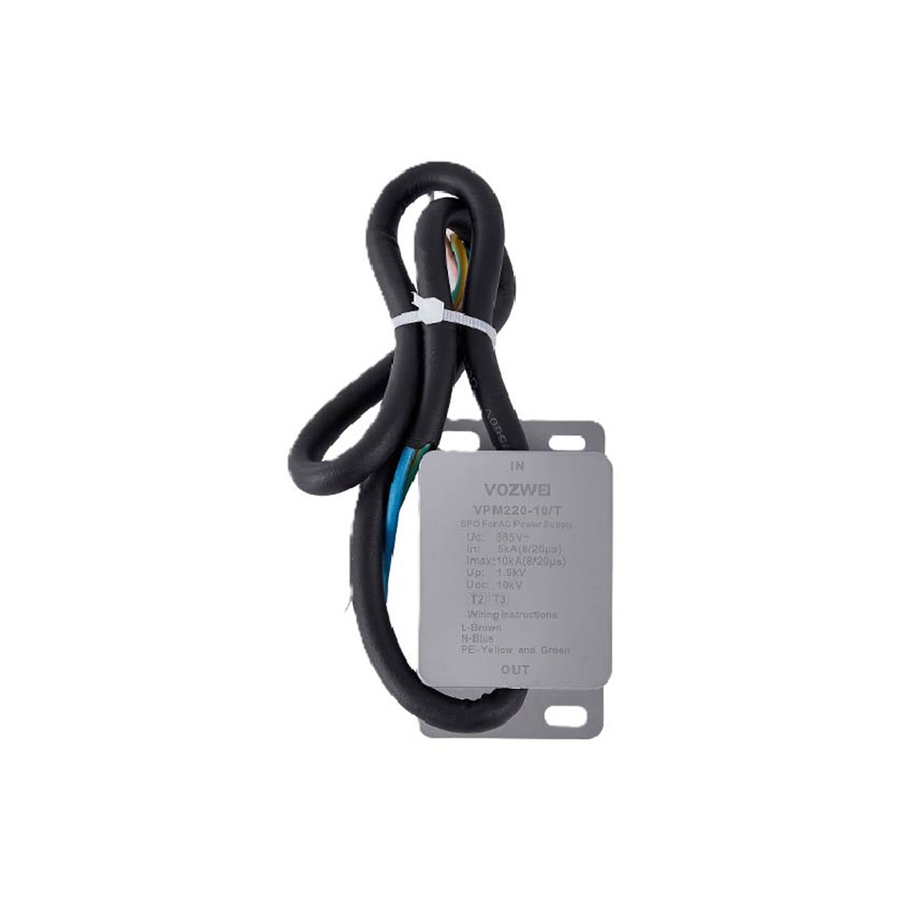

VPM220-10/T, AC385V SPD

  • Nominal discharge current In (8/20 μs): 5kA
  • Full protection modes: Differential-mode and common-mode
  • Optional features: LED status indicator, built-in overcurrent fuse protection
  • Integrated structure with IP65 rating; single-port and two-port options available; supportsseries/parallel installation for easy mounting
  • Utilizes high-performance surge protection components, featuring high TOV withstand capability and low limiting voltage
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 3
Protection modeL-PE & N-PE & L-N
Nominal operating voltage UnAC 220-240V 50/60Hz
Max. continuous operating voltage UcAC 385V 50/60Hz
Nominal discharge current In (8/20 μs)5kA
Max. discharge current Imax (8/20 μs)10kA
Voltage protection level Up≤1.5kV
Leakage current≤10 μA
Response time≤25 ns
Normal/Fault IndicationGreen/Red
Installation methodParallel installation
Housing materialUL94-V0
Protection classIP65
Relative humidity≤95% (25℃)
Operating temperature-40℃~+80℃
Operating altitude≤4000 m
Outline dimensions (without terminal)73mm×42mm×30.4mm (tolerance±1 mm)
Internal protection deviceThe lightning protection unit has a built-in thermal trip device
Extraction wireL - Brown, N - Blue (European standard wire, H05V-K1.0)
Power Distribution SystemLED

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
