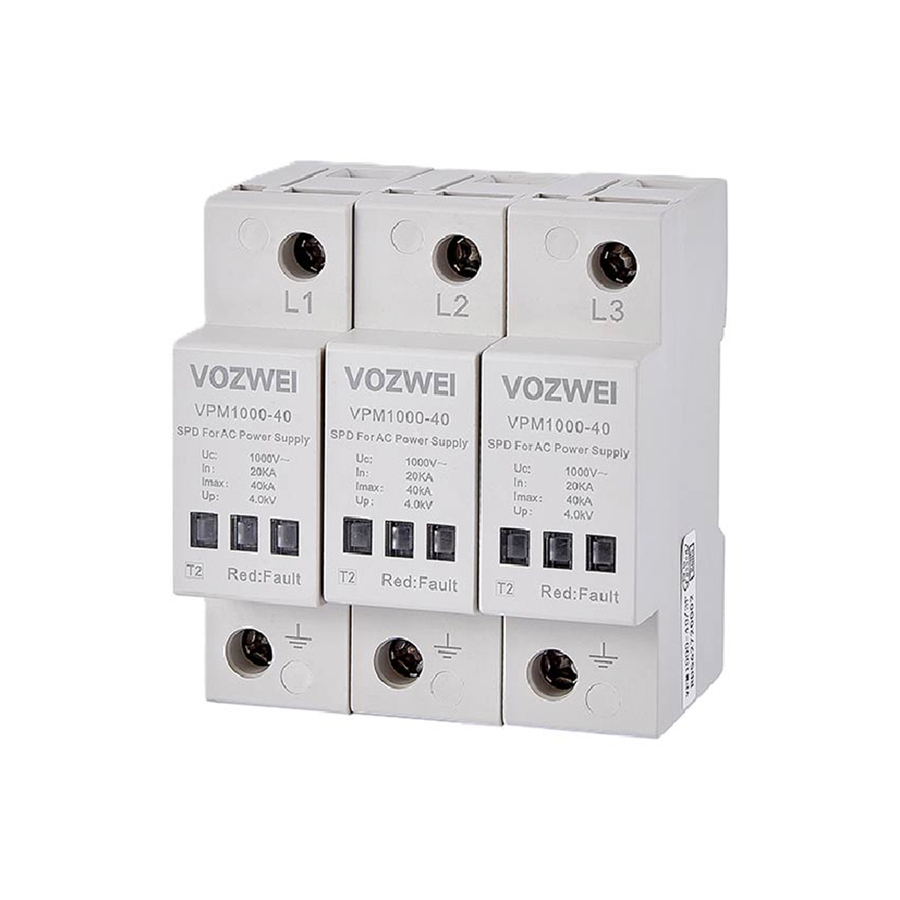

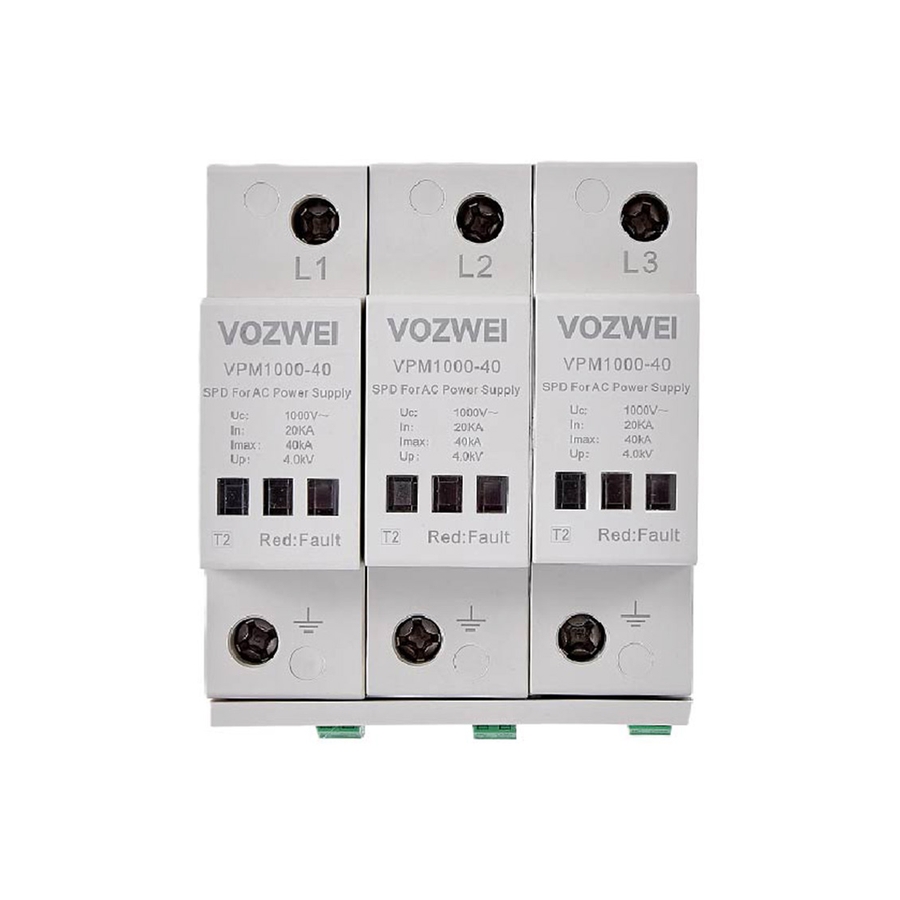

VPM1000-40/3P, AC1000V SPD
- Nominal discharge current In (8/20 μs): 20kA;
- Selectable circuit protection modes: 3+0 mode
- Rated for 800V AC systems
- Utilizing high-performance metal oxide varistor (MOV) technology, the device offers high temporary overvoltage (TOV) withstand capability and provides excellent voltage limiting performance
- Modular pluggable anti-loosening structure, enabling simple installation and easy maintenance
Technical parameters
| SPD according to EN/IEC 61643-11 | Type 2 |
| Protection mode | 3+0 mode |
| Nominal operating voltage Un | AC 800V 50/60Hz |
| Max. continuous operating voltage Uc | AC 1000V 50/60Hz |
| Nominal discharge current In(8/20 μs) | 20kA |
| Max. discharge current Imax(8/20 μs) | 40kA |
| Voltage protection level Up | ≤4.0kV |
| Leakage current | ≤20 μA |
| Response time | ≤25 ns |
| Max. backup fuse | 50 A-125A gL/gG |
| Cross-sectional area | 6~35mm2 |
| Stripping length terminals | 12.5mm |
| Tightening torque | 3N·m |
| Normal/Fault Indication | Green/Red |
| Remote signaling mode | RSC: Remote Signal contact, NC-COM-NO contact |
| Performances of remote signal contact | AC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A |
| Remote cross-sectional area | Max. 1.5mm2 |
| Installation method | 35mm DIN rail |
| Housing material | UL94-V0 |
| Protection class | IP20 |
| Outline dimensions (without terminal) | 90mm×81mm×65.5mm (tolerance±1mm) |
| Module pluggable | Pluggable |
| Internal protection device | The lightning protection unit has a built-in thermal trip device |
Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
