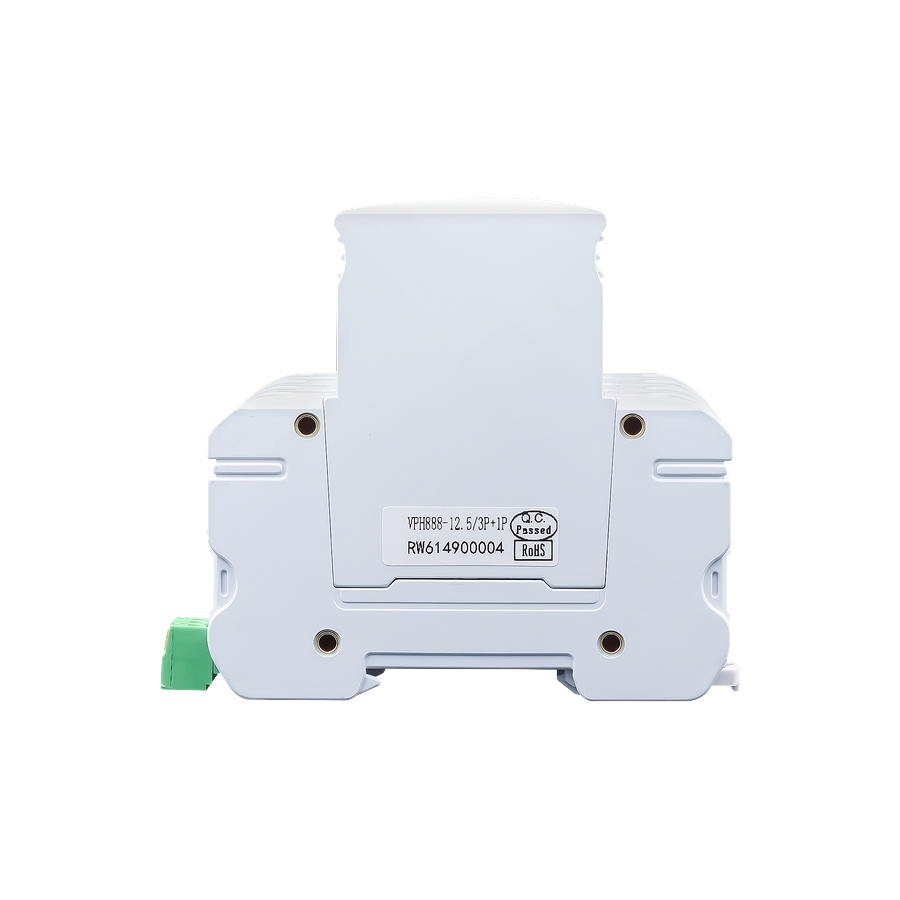

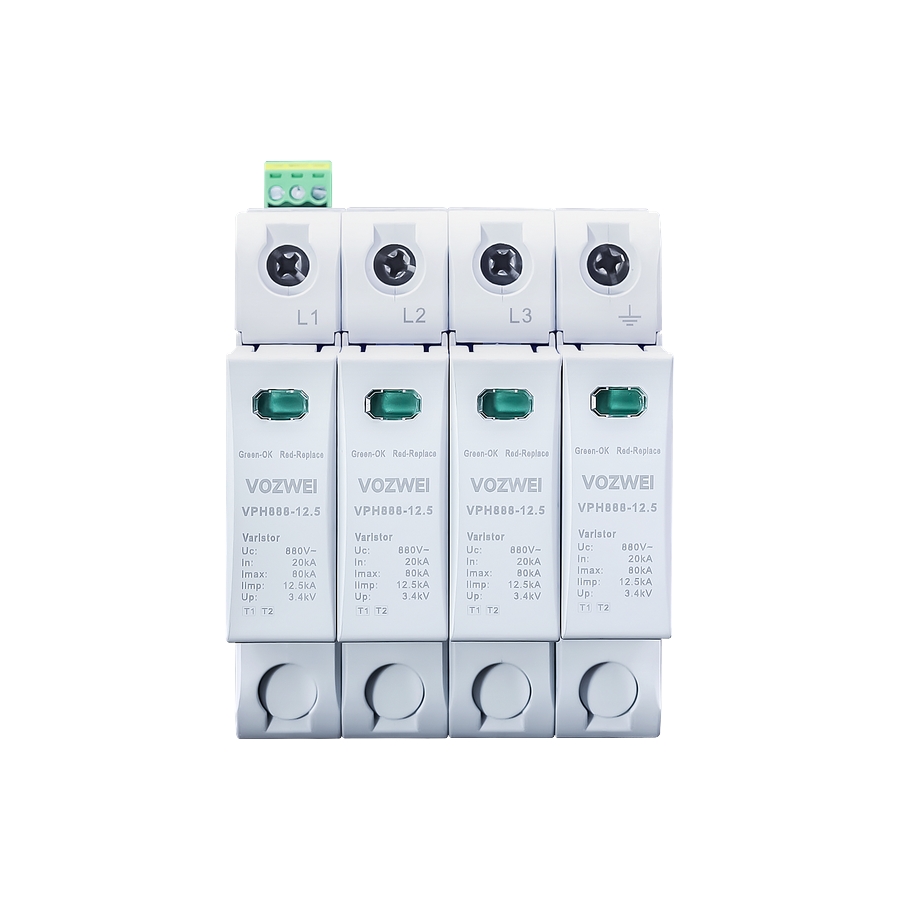

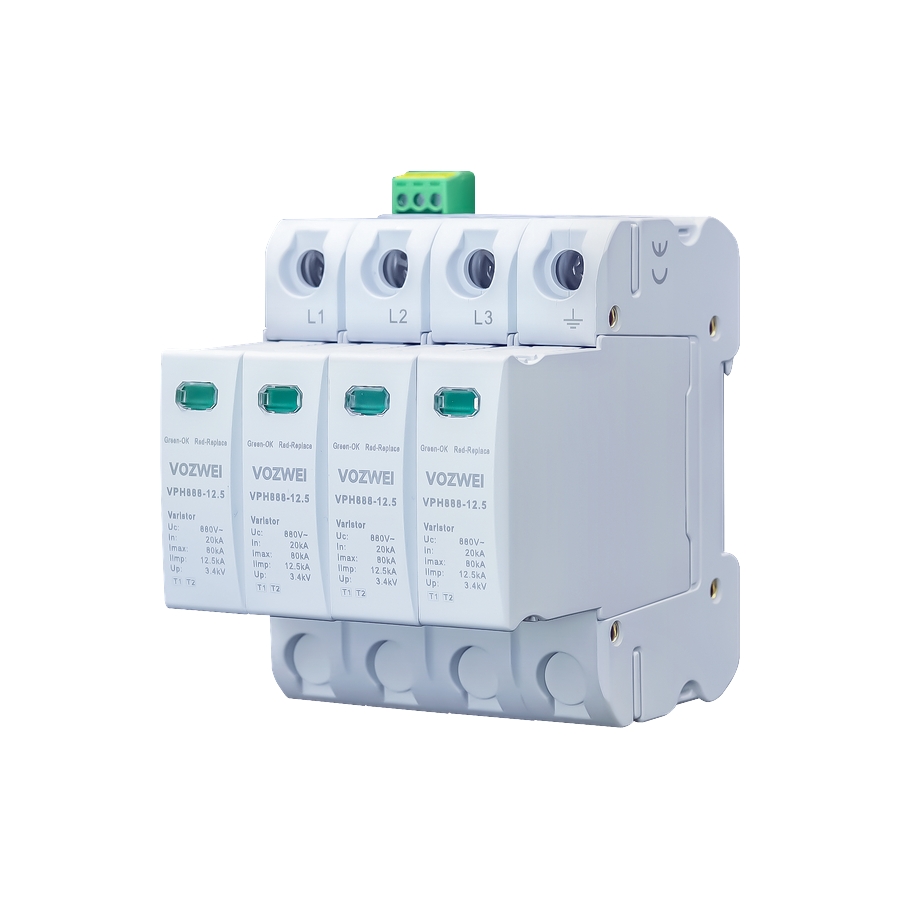

VPH888-12.5/3P+1P(T1+T2), AC880V SPD

  • Nominal discharge current In (8/20 μs): 20kA
  • Selectable circuit protection modes: 3+1 mode
  • Rated for 690VAC systems
  • Utilizes advanced spark gap & MOV hybrid technology with reliable follow-current interruption capability
  • Integrated thermal disconnect protection with remote alarm contact (NPG)
  • Modular plug-and-play design (VPM series) / Robust integrated construction (VPH series)
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 1+2
NetworkIT-TN
Protection mode3+1 mode
Nominal operating voltage UnAC 690V 50/60Hz
Max. continuous operating voltage UcAC 880V 50/60Hz
Impulse current Iimp (10/350 μs)12.5kA
Nominal discharge current In (8/20 μs)20kA
Max. discharge current Imax (8/20 μs)80kA
Voltage protection level Up≤3.4kV
Leakage current≤20μA
Response time≤25 ns
Max. backup fuse250A gL/gG
Cross-sectional area6~35mm 2
Stripping length terminals12.5mm
Tightening torque3N·m
Normal/Fault IndicationGreen/Red
Remote signaling modeRSC: Remote Signal contact, NC-COM-NO contact
Performances of remote signal contactAC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Remote cross-sectional areaMax. 1.5mm 2
Installation method35mm DIN rail
Housing materialPBT UL94-V0
Protection classIP20
Operation temperature-40°C~+80°C
Relative humidity≤95%(25°C)
Operating altitude≤3000 m
Outline dimensions (without terminal)90.0mm×72.0mm×77mm (tolerance±1mm)
Module pluggablePluggable
Internal protective devicesBuilt-in thermal tripping device
Short-circuit withstand capability25kArms

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
