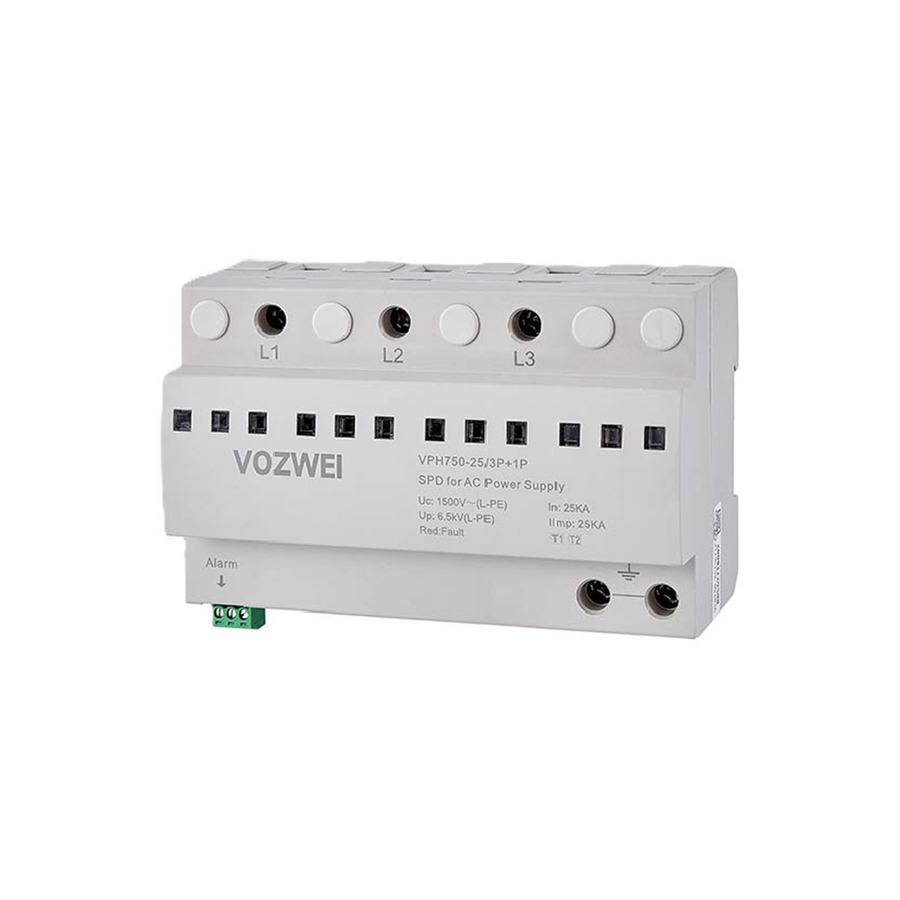

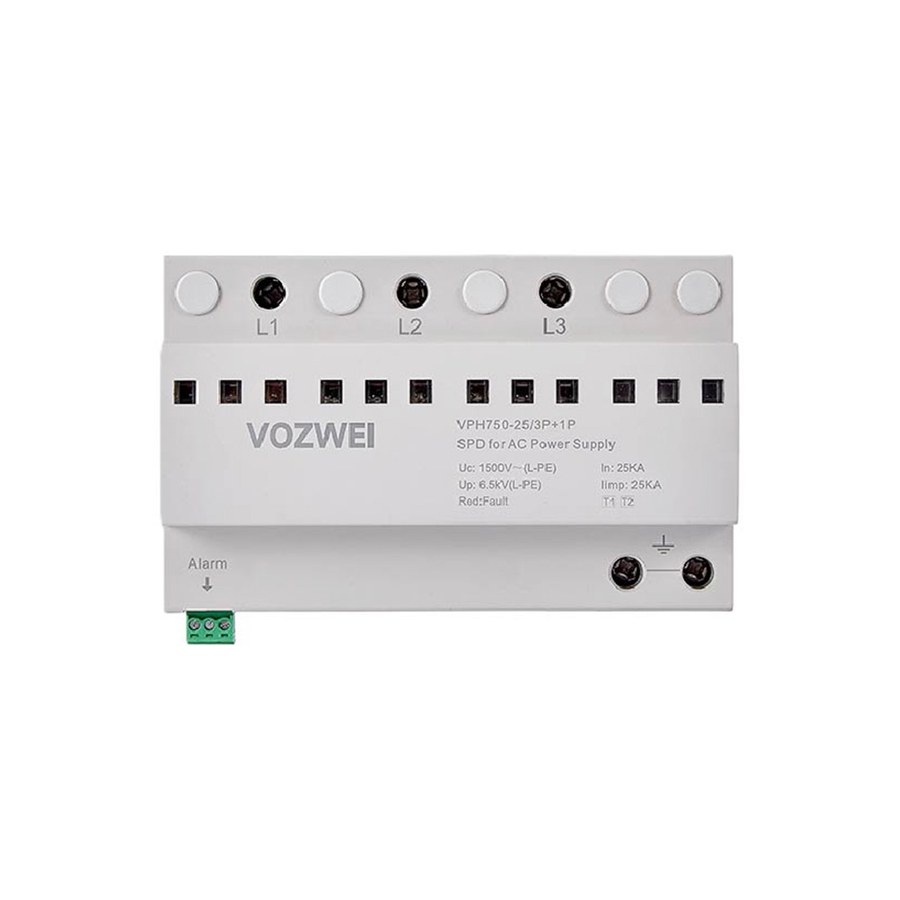

VPH750-25/3P+1P, AC1500V SPD

  • Large current capacity, low limiting voltage
  • Uses high-performance lightning protection components, with appropriate action voltage, and a robust protection circuit
  • Built-in over-temperature protection, no backflow, high reliability and safety
  • Integrated module structure, fixed with 35mm DIN rail, convenient for installation and maintenance
  • Has failure indication and centralized remote signaling alarm dry contacts
  • Shell protection grade is IP20, flame retardant grade is UL94V-0
  • The craftsmanship is exquisite and it can work continuously in harsh environments
Contact us

Technical parameters

SPD classification IEC61643-11Class I
SPD category GB18802.1Class I
Protection modeL-PE
Nominal operating voltage UnAC1140V, 50/60Hz
Maximum continuous operating voltage UcAC1500V, 50/60Hz
Lightning impulse current, Iimp (10/350 μs)25kA
Nominal discharge current In (8/20 μs)25kA
Voltage protection level, Up≤6.5kV
Response time≤25 ns
Internal protection deviceThe lightning protection unit has a built-in thermal trip device
Maximum backup protection fuse≤160A gL/gG
Access wire cross section6~35mm 2
Bare wire crimping length12.5mm
Installation torque (max)3N·m
Deterioration failure indicationThe lightning protection module has an indication window, which turns red in the fault state
Remote communication modeRSC: Remote Signal contact, NC-COM-NO contact
Remote terminal performanceAC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Remote wire sectionMax. 1.5mm 2
Installation modeStandard rail mounting DIN rail 35mm
Housing materialPBT UL94-V0
Housing protection classIP20
Overall dimensions (without terminal)90.0mm×108.0mm×65.5mm (tolerance±1mm)

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
