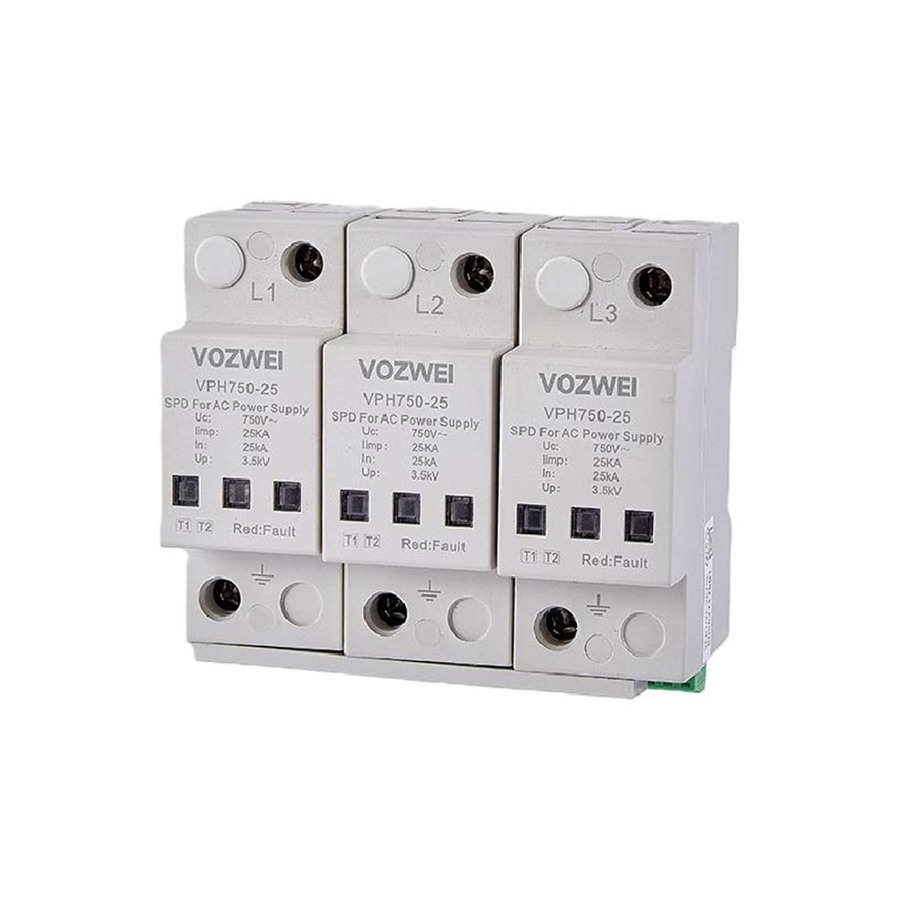

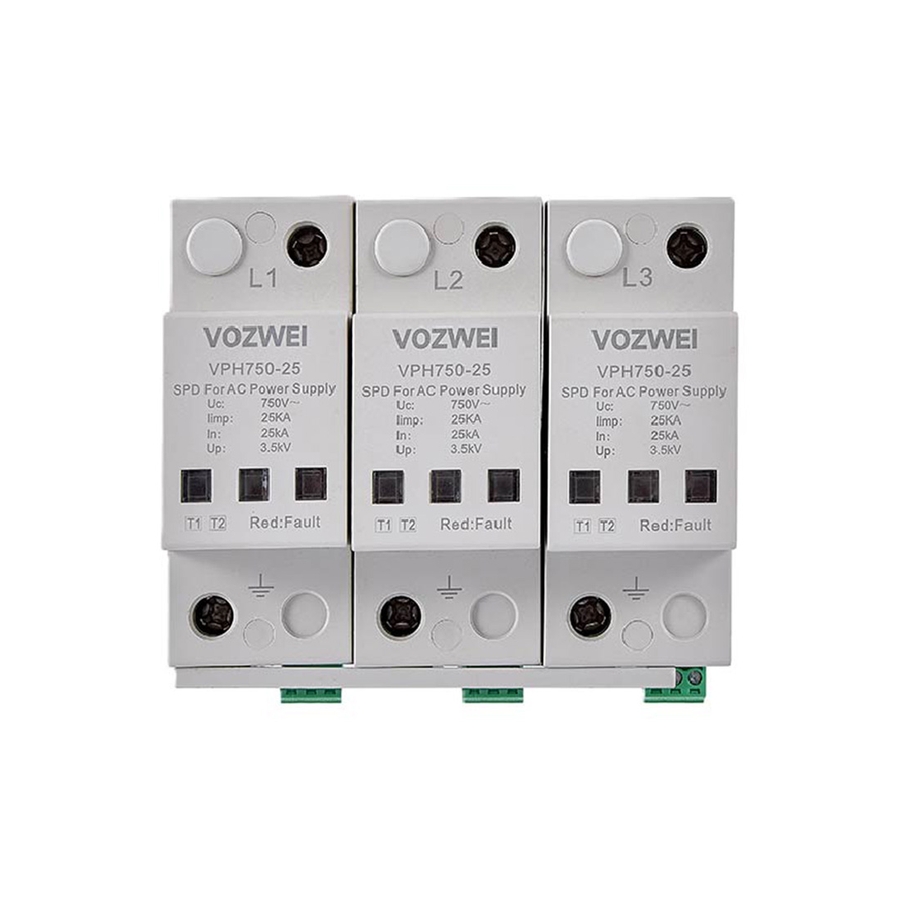

VPH750-25/3P, AC750VSPD

  • Impulse current Iimp (10/350μs): 25kA
  • Selectable circuit protection modes: 3P
  • Rated for 690V AC systems
  • Utilizes high-performance graphite or gas discharge tube (GDT) technology with superior follow-current interruption capability
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 1
Protection modeL-PE
Nominal operating voltage UnAC 690V 50/60Hz
Max. continuous operating voltage UcAC 750V 50/60Hz
Impulse current Iimp (10/350 μs)25kA
Nominal discharge current In (8/20 μs)25kA
Voltage protection level Up≤3.5kV
Response time≤25 ns
Max. backup fuse≤160A gL/gG
Cross-sectional area6~35mm 2
Stripping length terminals12.5mm
Tightening torque3N·m
Normal/Fault IndicationGreen/Red
Remote signaling modeRSC: Remote Signal contact, NC-COM-NO contact
Performances of remote signal contactAC: 250V/0.5A; DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Remote cross-sectional areaMax. 1.5mm 2
Installation method35mm DIN rail
Housing materialPBT UL94-V0
Protection classIP20
Operating temperature-40℃~+85℃
Relative humidity≤95% (25℃)
Operating altitude≤4000 m
Outline dimensions (without terminal)90.0mm×108.0mm×5.5mm (tolerance ±1mm)
Internal protection deviceThe lightning protection unit has a built-in thermal trip device
Limited voltage at 5kA≤2.5kV
Short-circuit withstand capability25 kArms
Transient overvoltage (TOV), UT1000V/5s tolerance

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
