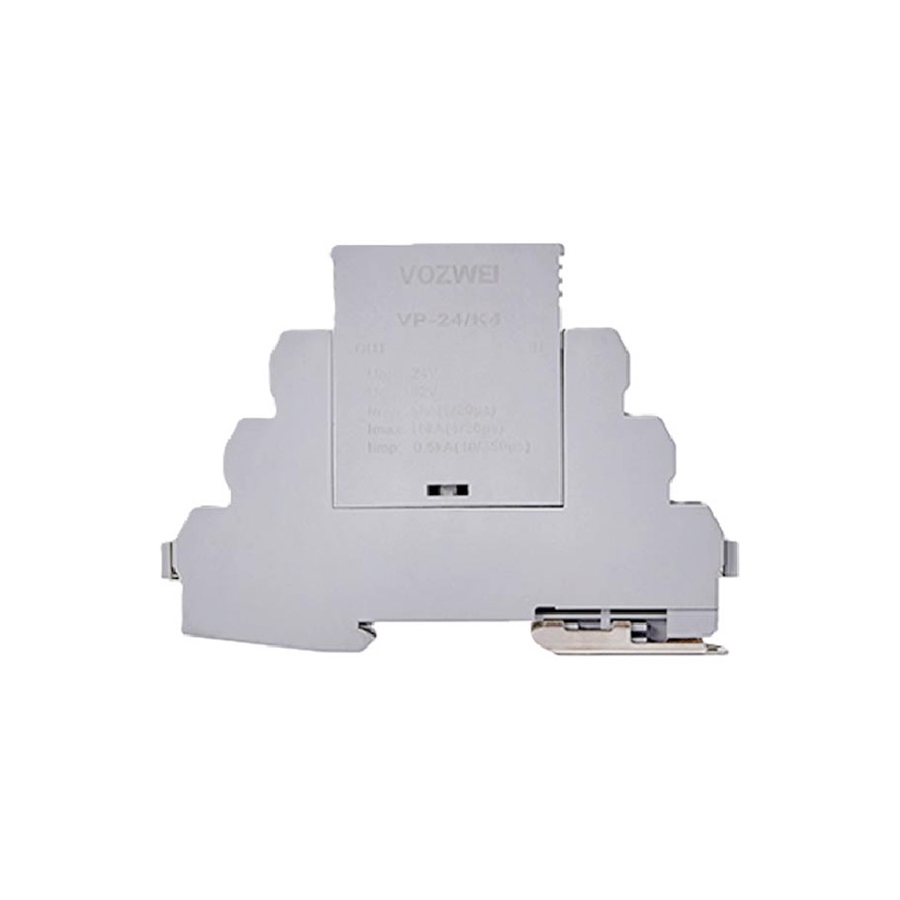

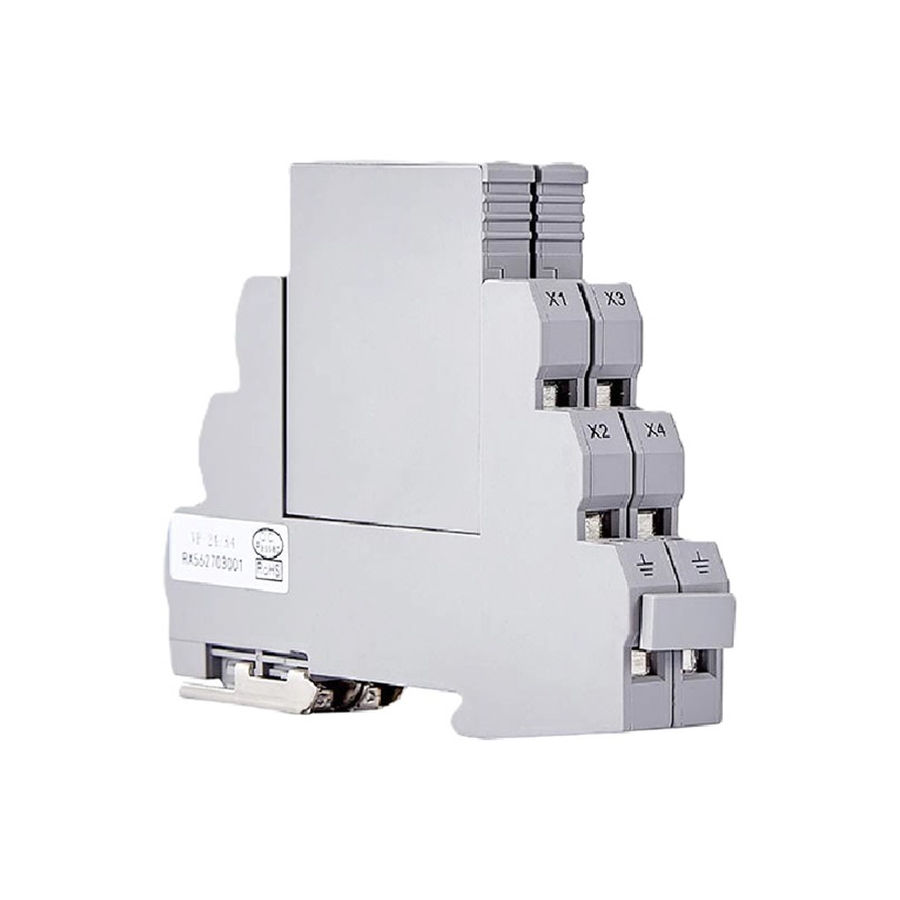

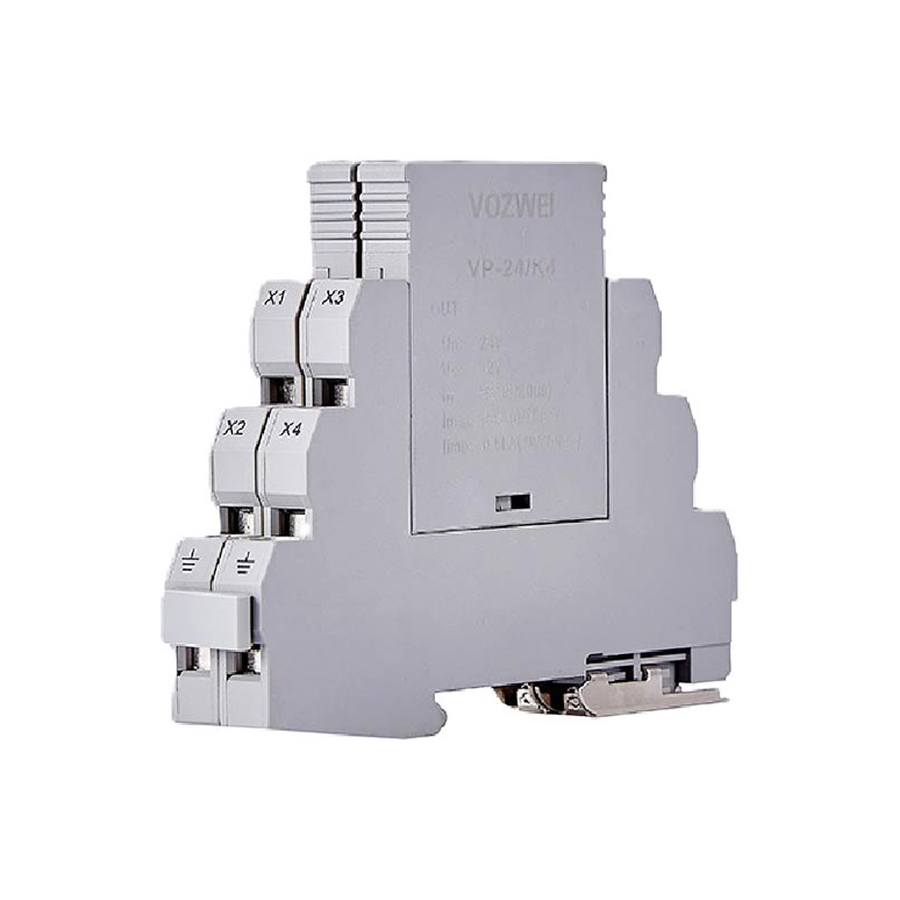

VP-24K4, AC32V SPD

  • Supports hot-plugging design, allowing surge protector maintenance without interrupting signal transmission
  • Z-type multilayer port layout structure, maximizing vertical space utilization and significantly reducing overall product thickness
  • Multilevel surge protection technology with high discharge capacity, low clamping voltage, and fast response time
  • Low transmission attenuation, supporting a maximum data transmission rate of up to 3 Mbps
  • Strong fault isolation capability with built-in thermal disconnection (thermal tripping) function
  • Easy installation and operation, designed for 35mm standard rail installation

Technical parameters

Protection mode Common mode, differential mode
Protection line L-L, L-PE
IEC, GB/T Impact resistance category C1, C2, C3; D1
Nominal operating voltage Un 24V
Maximum continuous operating voltage Uc 32V
The impulse current limp (10/350 μs) per line 0.5kA
Nominal discharge current In(8/20 μs) per line 5kA
Max discharge current lmax (8/20 μs) per line 10kA
Voltage protection level (In) ＜150V
Impact limit voltage (1kV/ μs) ＜20V
Maximum load current 700 mA
Maximum series impedance 1 Ω
Cut-off frequency 3 Mbps
Insertion loss (at maximum load) ＜1dB
Deterioration failure indication The indication window turns red in fault state
Wiring method Crimping frame connection
Enclosure protection grade IP20
Flame retardant grade 94-V0
Installation method 35mm standard rail
Grounding method Compatible with rail grounding or dedicated port grounding

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
