VPX05K05X Series Type 2 Signal SPD
The VPX05K05X is a high-precision Type 2 Signal SPD designed to protect data and communication lines. Supporting Uc up to 60V DC, it features a nominal discharge current (In) up to 2 kA. With a low protection voltage (Up) of L/L ≤ 40V (C2) / ≤ 20V (C3), it ensures the safety of sensitive interfaces. Fully EN/IEC 61643-11/21 compliant and ideal for PLC, sensors, and high-speed data circuits.
Highlights
- Signal protection for data and communication lines with PoE support
- Voltage protection level Up L/L ≤ 40V (C2) / ≤ 20V (C3), L/PE ≤ 300V
- Compact aluminum housing for 35mm DIN rail mounting
- Fully EN/IEC 61643-11 compliant
Product Information
- Type: Type 2 signal surge protective device
- Nominal operating voltage (Un): DC 3.3V (signal) / DC 48V (PoE power)
- Maximum continuous operating voltage (Uc): DC 6V (signal) / DC 60V (PoE power)
- Nominal discharge current (In): 1kA (signal) / 2kA (PoE power) (8/20 μs)
- Voltage protection level (Up): L/L ≤ 40V (C2) / ≤ 20V (C3), L/PE ≤ 300V
- Standard Compliance: EN/IEC 61643-11
- High-precision protection for data and communication lines with PoE support
- Compact aluminum housing for 35mm DIN rail mounting
- Ideal for PLC, sensors, IP cameras, and high-speed data circuits
Application:
The product is a multi-port signal surge protective device engineered for high-density network protection with Power over Ethernet (PoE) support. It is specifically designed for installation at network switches, IP device endpoints, and communication cabinets in LPZ 2 to LPZ 3 zones (commonly referred to as Type 3 or Class D protection). It effectively safeguards sensitive network equipment such as IP cameras, wireless access points, and VoIP phones against damage from induced transient overvoltages on both data lines and PoE power lines.
Technical parameters:
|
Model |
VPX05K05X-H48-POE |
|
SPD according to EN/IEC 61643-11 |
Type 2 |
|
Protected pin |
All 8 pins protected |
|
Signal part |
|
|
Nominal operating voltage Un |
DC 3.3 V |
|
Max. continuous operating voltage Uc |
DC 6 V |
|
Series impedance/per line |
1 Ω |
|
Nominal discharge current In |
1 kA |
|
Transfer rate |
1000 Mbps |
|
Protection voltage C2(1 kA, 8/20 μs) |
L/L: ≤ 40 V(after 2 μs), L/PE: ≤ 300 V(after 2 μs) |
|
Protection voltage C3(1 kV/μs) |
L/L: ≤ 20 V, L/PE: ≤ 300 V |
|
Power supply part |
|
|
Nominal operating voltage Un |
DC 48 V |
|
Max. continuous operating voltage Uc |
DC 60 V |
|
Max. load current |
1 A |
|
Series impedance/per line |
0.5 Ω |
|
Nominal discharge current In |
2 kA |
|
Protection voltage |
≤ 300 V(after 2 μs) |
|
Installation method |
35 mm DIN rail |
|
Housing material |
Aluminum Profile |
|
Protection class |
IP20 |
|

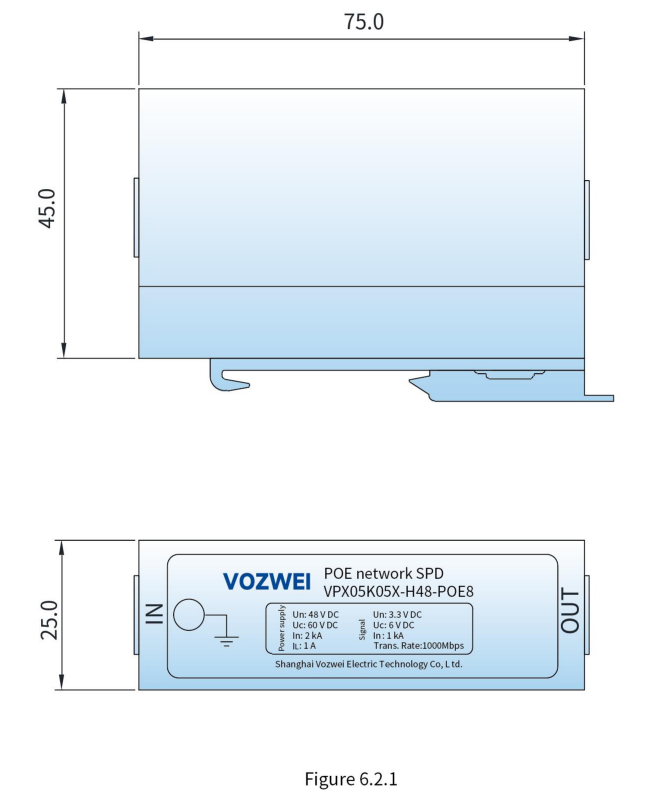

Outline dimensions (without terminal) |
78 mm × 54 mm × 25 mm (tolerance ± 1 mm) |
|
Operating temperature |
-40 °C ~ +70 °C |
|
Relative humidity |
5% ~ 95% (25 °C) |
|
Operating altitude |
≤ 4000 m |

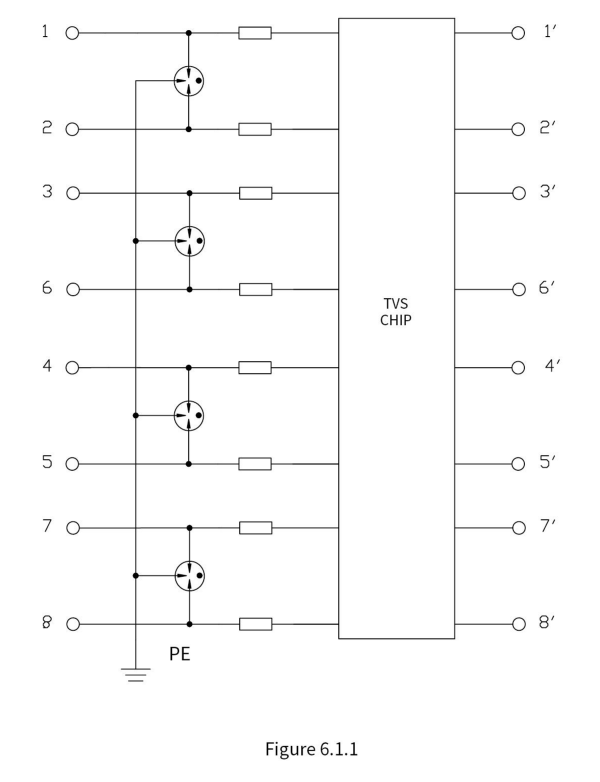

Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VPX05K05X Series?
A: It is a high-precision Type 2 signal surge protective device (SPD) designed to protect data and communication lines.
Q: Does it support Power over Ethernet (PoE)?
A: Yes, it supports Power over Ethernet (PoE), making it suitable for network switches, IP cameras, wireless access points, and VoIP phones.
Q: What is its voltage protection level?
A: It features a low voltage protection level (Up): L/L ≤ 40V and L/PE ≤ 300V (C2, 8/20 μs); L/L ≤ 20V and L/PE ≤ 300V (C3, 1 kV/μs).
Q: How is it mounted?
A: It features a compact aluminum housing for 35mm DIN rail mounting.
Q: What standard does it comply with?
A: It is fully compliant with the EN/IEC 61643-11 international standards.
