VPM385-80 Series Type 2 AC SPD
The VPM385-80 is a high-performance Type 2 AC SPD for advanced secondary power protection. With a Uc of 385V AC, it features a strong In of 40 kA and a massive Imax of 80 kA (8/20 μs). Designed with Up ≤ 2.2 kV, it provides robust safety for critical industrial systems. Fully EN/IEC 61643-11 compliant and engineered for long-term reliability.
Highlights
- High-performance Type 2 protection for critical industrial systems
- Strong discharge capability with Imax up to 80kA (8/20 μs)
- Low voltage protection level Up ≤ 2.2kV
Product Information
- Type: Type 2 AC surge protective device
- Maximum continuous operating voltage (Uc): 385V AC
- Nominal discharge current (In): 40kA (8/20 μs)
- Maximum discharge current (Imax): 80kA (8/20 μs)
- Voltage protection level (Up): ≤ 2.2kV
- Standard Compliance: EN/IEC 61643-11
- High-performance Type 2 protection for critical industrial systems
- High-performance MOV technology with excellent voltage limiting performance
Application:
The product is a Type 2 low-voltage surge protective device (SPD). It is designed for installation at the boundaries of subsequent protection zones (e.g., LPZ1-2, LPZ2-3) within low-voltage distribution systems. This device protects sensitive equipment by safely discharging the remnant surge currents and transient overvoltages resulting from indirect lightning effects or switching operations.
Nomenclature:
VP □ □–□/□□
1 2 3 4 5
|
SN |
Name |
Specification, type code |
|
1 |
Design code |
VP |
|
2 |
Product Series |
M |
|
3 |
Max. continuous operating voltage Uc |
275: AC 275 V; 320: AC 320 V; 385: AC 385 V |
|
4 |
Max. discharge current Imax |
40: 40 kA; 80: 80 kA; 100: 100 kA |
|
5 |
Protection mode |
2P: 2P; 3P: 3P; 1N+NPG: 1N+NPG; 3N+NPG: 3N+NPG; 4P: 4P |
Example: VPM275-40/3N+NPG → Uc: AC 275 V; Imax: 40 kA; Protection mode: 3N+NPG.
Technical parameters:
|
Model |
VPM385-80/3N+NPG |
|
SPD according to EN/IEC 61643-11 |
Type 2 |
|
Protection mode |
3+1 mode |
|
Nominal operating voltage Un |
AC 230/400 V 50/60 Hz |
|
Max. continuous operating voltage Uc |
AC 385 V 50/60 Hz (Varistor moduleUc:385 V 50 / 60 Hz; GDT module Uc: 255 V 50 / 60 Hz) |
|
Nominal discharge current In (8/20 μs) |
40 kA |
|
Max. discharge current Imax (8/20 μs) |
80 kA |
|
Voltage protection level Up |
L-N ≤ 2.2 kV, N-PE ≤ 1.2 kV |
|
Leakage current |
≤ 20 μA |
|
Response time |
≤ 25 ns |
|
Max. backup fuse |
125 A gL/gG |
|
Cross-sectional area |
6 ~ 35 mm2 |
|
Stripping length terminals |
12.5 mm |
|
Tightening torque |
3 N·m |
|
Normal/Fault Indication |
Green/Red |
|
Remote signaling mode |
RSC: Remote Signal contact, NC-COM-NO contact |
|
Performances of remote signal contact |
AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A |
|
Remote cross-sectional area |
Max. 1.5 mm2 |
|
Installation method |
35 mm DIN rail |
|
Housing material |
UL94-V0 |
|
Protection class |
IP20 |
|
Outline dimensions (without terminal) |
90.0 mm × 108.0 mm × 65.5 mm (tolerance ± 1 mm) |
|
Module pluggable |
/ |
|
Internal protection device |
The lightning protection unit has a built-in thermal trip device |
|
Environmental protection characteristics |
RoHS |
|
Short-circuit withstand capability |
25 kArms |
Selection guide:
|
Model |
Un |
Uc |
Up |
In |
Imax |
Protection mode |
Operating Principle |
Size |
|
VPM385-80/3N+NPG |
AC 230 V |
AC 385 V |
2.2 kV |
40 kA |
80 kA |
L-N & N-PE |

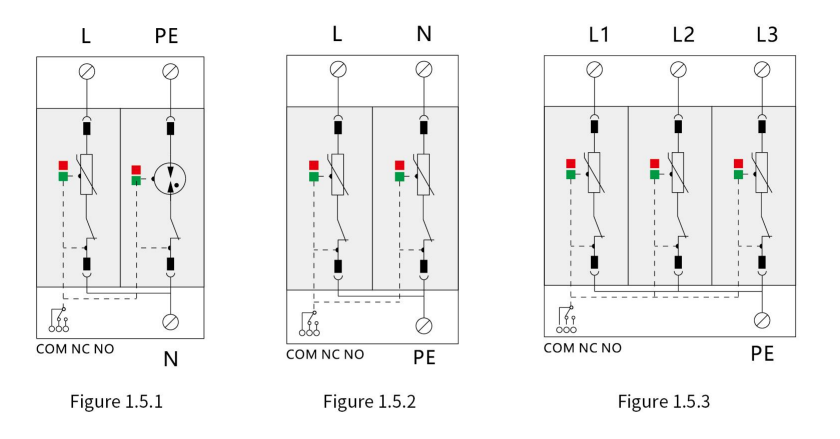

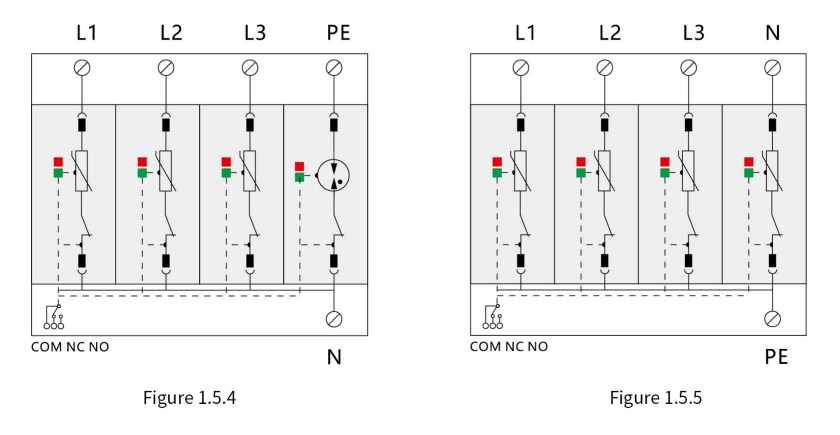

Figure 1.5.4 |

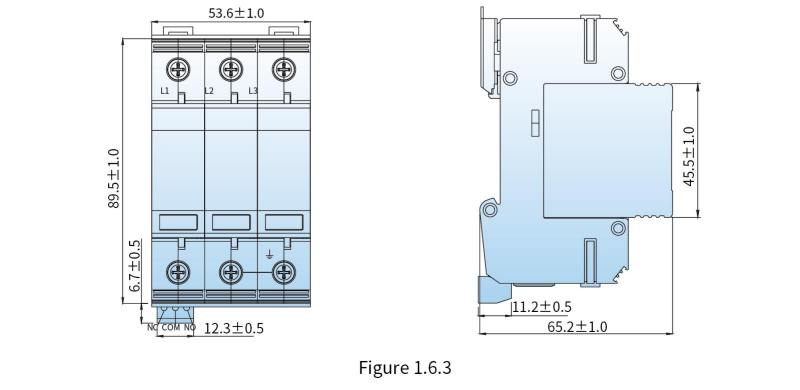

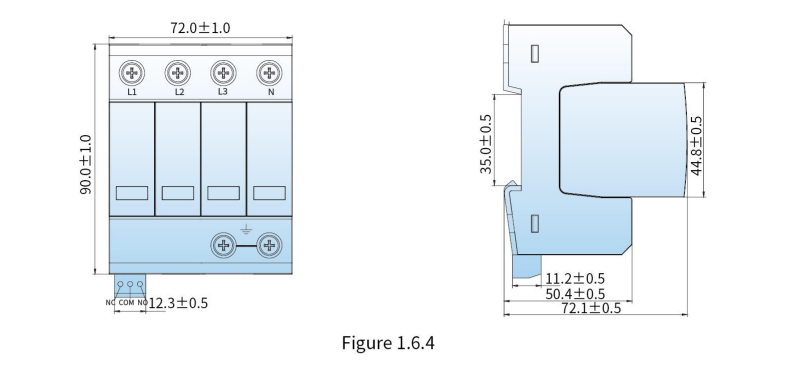

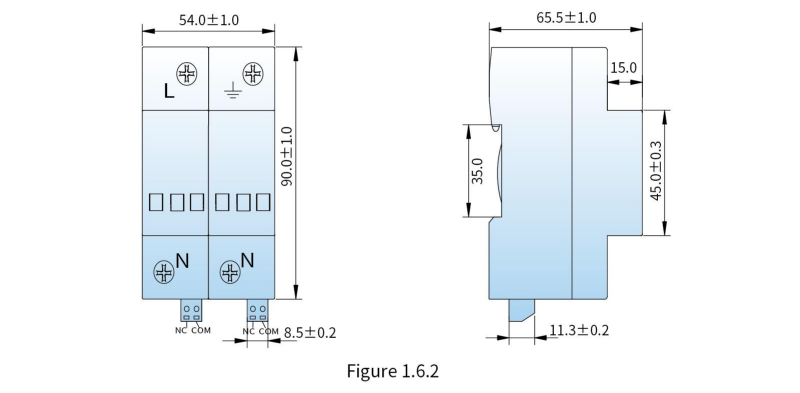

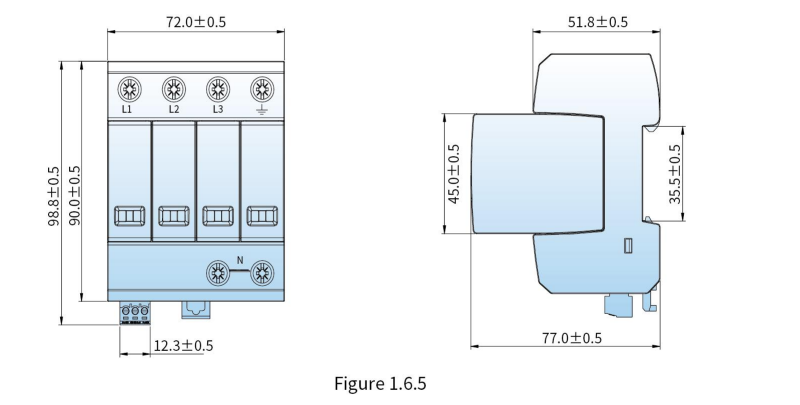

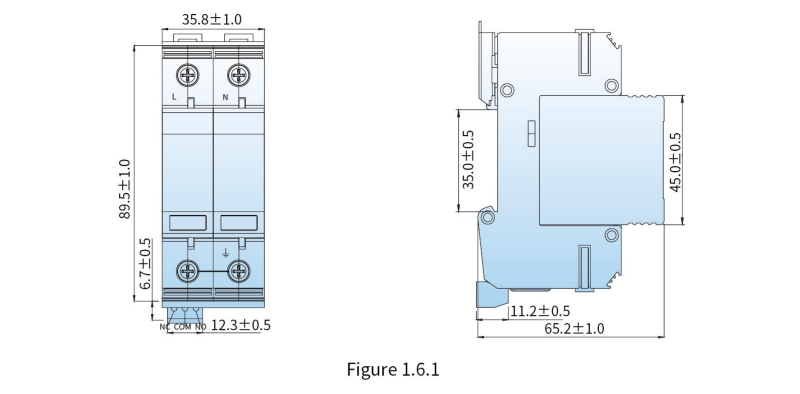

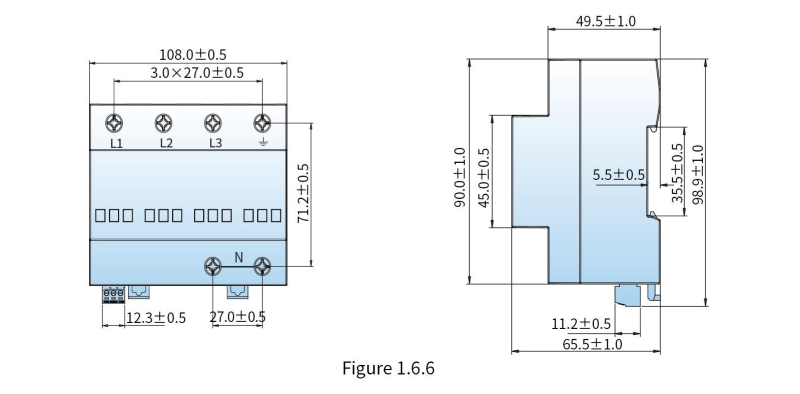

Figure 1.6.6 |
Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VPM385-80 Series?
A: It is a high-performance Type 2 AC SPD for advanced secondary power protection of critical industrial systems.
Q: What is its maximum continuous operating voltage?
A: It features a maximum continuous operating voltage (Uc) of 385V AC.
Q: What are the discharge current ratings?
A: It handles a nominal discharge current (In) of 40kA and a maximum discharge current (Imax) of 80kA (8/20 μs).
Q: What is its voltage protection level?
A: It features a voltage protection level (Up) of ≤ 2.2kV.
Q: What standard does it comply with?
A: It is fully compliant with the EN/IEC 61643-11 international standard.
