VPM320-40 Series Type 2 AC SPD
The VPM320-40 is a reliable Type 2 AC SPD for secondary power protection. With a Uc of 320V AC, it features a nominal discharge current (In) of 20 kA and a max capacity (Imax) of 40 kA (8/20 μs). With Up ≤ 1.6 kV, it ensures effective safety for downstream electronics. Fully EN/IEC 61643-11 compliant and built for durability.
Highlights
- Type 2 protection for downstream electronic equipment
- Low voltage protection level Up ≤ 1.6kV
- Handles a nominal 20kA In with 40kA Imax (8/20 μs)
- Pluggable modular design with thermal disconnection and remote signaling
Product Information
- Type: Type 2 AC surge protective device
- Maximum continuous operating voltage (Uc): 320V AC
- Nominal discharge current (In): 20kA (8/20 μs)
- Maximum discharge current (Imax): 40kA (8/20 μs)
- Voltage protection level (Up): ≤ 1.6kV
- Standard Compliance: EN/IEC 61643-11
- Reliable Type 2 protection for downstream electronic equipment
- High-performance MOV technology with excellent voltage limiting performance
- Modular pluggable design with thermal disconnection, fault indication and remote signaling
Application:
The product is a Type 2 low-voltage surge protective device (SPD). It is designed for installation at the boundaries of subsequent protection zones (e.g., LPZ1-2, LPZ2-3) within low-voltage distribution systems. This device protects sensitive equipment by safely discharging the remnant surge currents and transient overvoltages resulting from indirect lightning effects or switching operations.
Nomenclature:
VP □ □–□/□□
1 2 3 4 5
|
SN |
Name |
Specification, type code |
|
1 |
Design code |
VP |
|
2 |
Product Series |
M |
|
3 |
Max. continuous operating voltage Uc |
275: AC 275 V; 320: AC 320 V; 385: AC 385 V |
|
4 |
Max. discharge current Imax |
40: 40 kA; 80: 80 kA; 100: 100 kA |
|
5 |
Protection mode |
2P: 2P; 3P: 3P; 1N+NPG: 1N+NPG; 3N+NPG: 3N+NPG; 4P: 4P |
Example: VPM275-40/3N+NPG → Uc: AC 275 V; Imax: 40 kA; Protection mode: 3N+NPG.
Technical parameters:
|
Model |
VPM320-40/3N+NPG |
|
SPD according to EN/IEC 61643-11 |
Type 2 |
|
Protection mode |
3+1 mode |
|
Nominal operating voltage Un |
AC 230/400 V 50/60 Hz |
|
Max. continuous operating voltage Uc |
AC 320 V 50/60 Hz (Varistor module Uc: 320 V 50/60 Hz; GDT module Uc: 255 V 50/60 Hz) |
|
Nominal discharge current In (8/20 μs) |
20 kA |
|
Max. discharge current Imax (8/20 μs) |
40 kA |
|
Voltage protection level Up |
L-N ≤ 1.6 kV, N-PE ≤ 1.0 kV |
|
Leakage current |
≤ 20 μA |
|
Response time |
L-N ≤ 25 ns, N-PE ≤ 100 ns |
|
Max. backup fuse |
125 A gL/gG |
|
Cross-sectional area |
6 ~ 35 mm2 |
|
Stripping length terminals |
12.5 mm |
|
Tightening torque |
3 N·m |
|
Normal/Fault Indication |
Green/Red |
|
Remote signaling mode |
RSC: Remote Signal contact, NC-COM-NO contact |
|
Performances of remote signal contact |
AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A |
|
Remote cross-sectional area |
Max. 1.5 mm2 |
|
Installation method |
35 mm DIN rail |
|
Housing material |
UL94-V0 |
|
Protection class |
IP20 |
|
Outline dimensions (without terminal) |
89.5 mm × 71.5 mm × 65.2 mm (tolerance ± 1 mm) |
|
Module pluggable |
Pluggable |
|
Internal protection device |
The lightning protection unit has a built-in thermal trip device |
|
Environmental protection characteristics |
RoHS |
|
Short-circuit withstand capability |
25 kArms |
Selection guide:
|
Model |
Un |
Uc |
Up |
In |
Imax |
Protection mode |
Operating Principle |
Size |
|
VPM320-40/2P |
AC 230 V |
AC 320 V |
1.6 kV |
20 kA |
40 kA |
L-PE & N-PE |

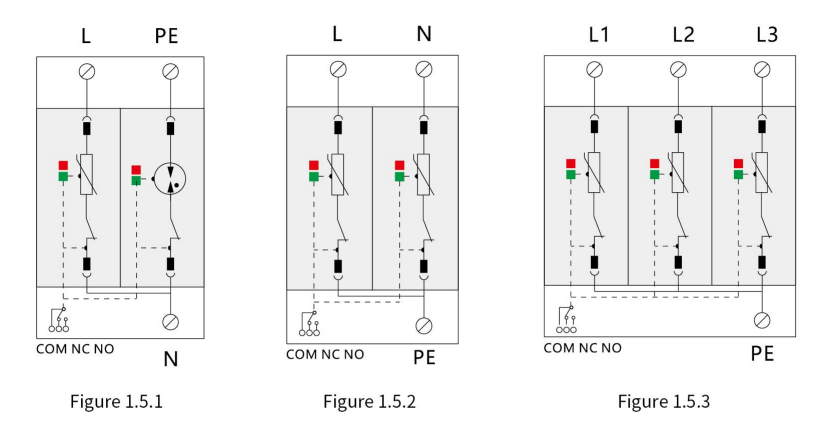

Figure 1.5.2 |

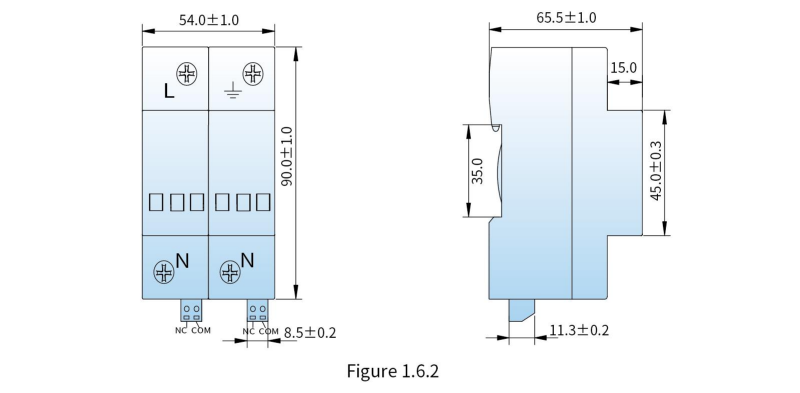

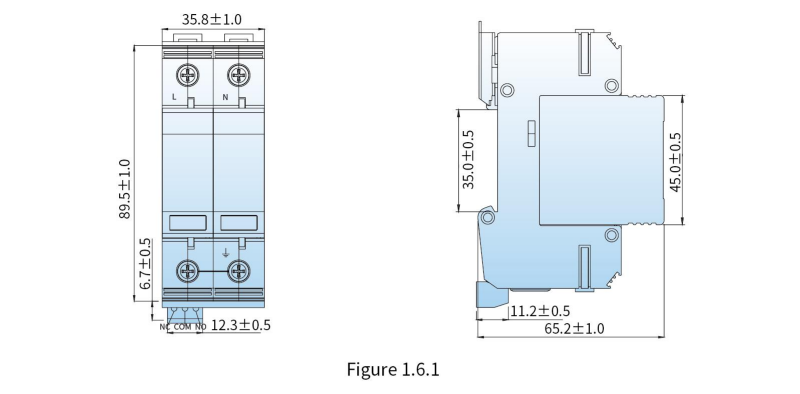

Figure 1.6.1 |
|
VPM320-40/3P |
AC 230 V |
AC 320 V |
1.6 kV |
20 kA |
40 kA |
L-PE |
Figure 1.5.3 |

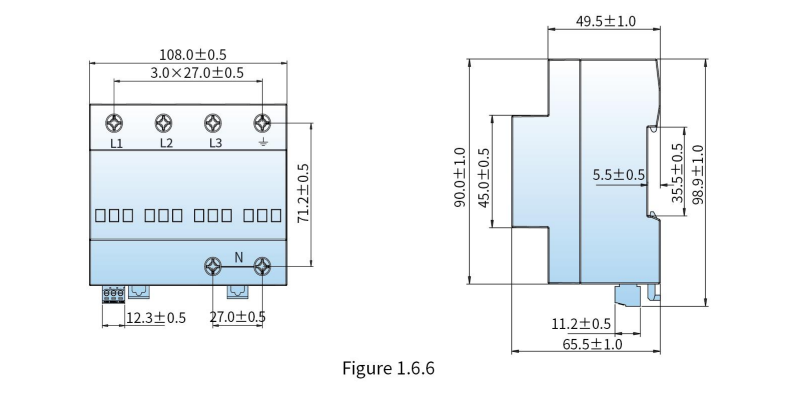

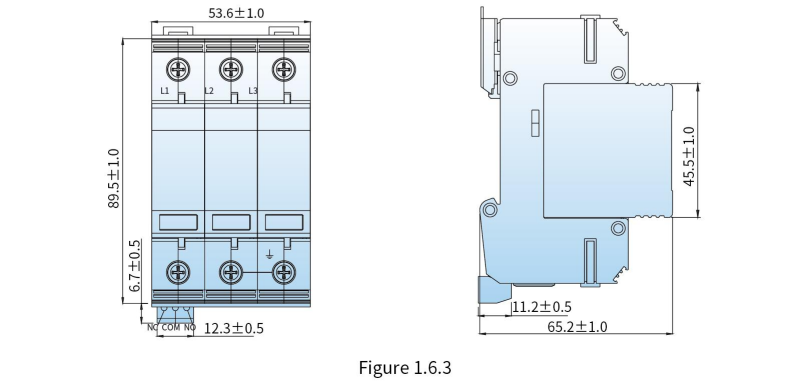

Figure 1.6.3 |
|
VPM320-40/3N+NPG |
AC 230 V |
AC 320 V |
1.6 kV |
20 kA |
40 kA |
L-N & N-PE |

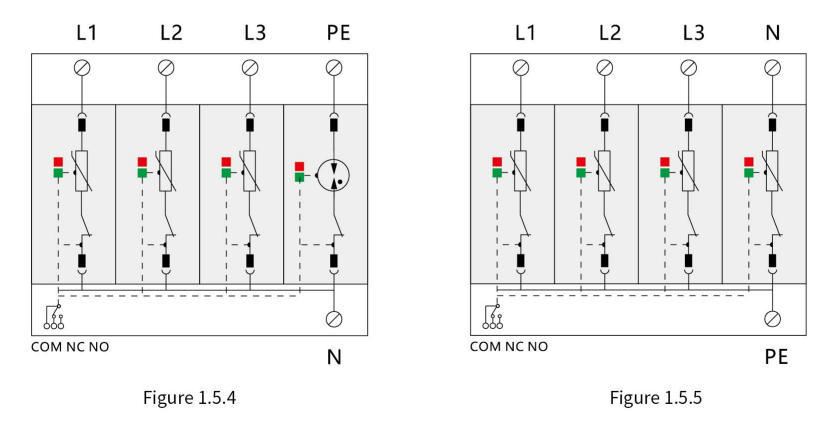

Figure 1.5.4 |

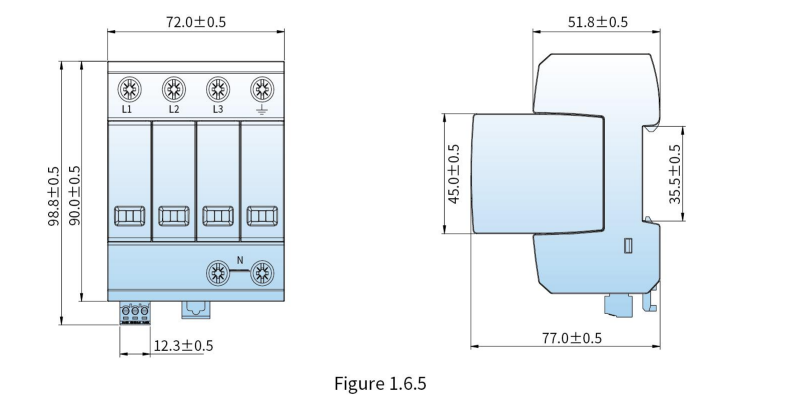

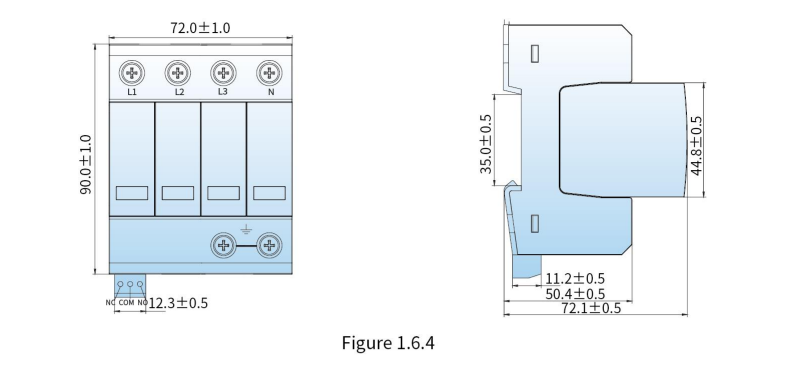

Figure 1.6.4 |
Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VPM320-40 Series?
A: It is a reliable Type 2 AC SPD for secondary power protection of downstream electronics.
Q: What is its maximum continuous operating voltage?
A: It features a maximum continuous operating voltage (Uc) of 320V AC.
Q: What are the discharge current ratings?
A: It handles a nominal discharge current (In) of 20kA and a maximum discharge current (Imax) of 40kA (8/20 μs).
Q: What is its voltage protection level?
A: It features a voltage protection level (Up) of ≤ 1.6kV.
Q: What standard does it comply with?
A: It is fully compliant with the EN/IEC 61643-11 international standard.
