VPM220-10 (T) Series Type 3 LED SPD
The VPM220-10 (T) is a robust Type 3 SPD optimized for the terminal protection of high-voltage LED systems. Supporting Uc up to 385V AC, it handles an In of 5 kA and an Imax of 10 kA (8/20 μs). Featuring a precise Up ≤ 1.5 kV, it is fully EN/IEC 61643-11 compliant. Ideal for safeguarding outdoor luminaires, traffic lighting, and industrial LED drivers against fine transient surges.
Highlights
- Terminal Type 3 protection for high-voltage LED systems
- Integrated IP65-rated structure for reliable outdoor use
- Handles a nominal 5kA In with 10kA Imax (8/20 μs)
- Low voltage protection level Up ≤ 1.5kV
Product Information
- Type: Type 3 LED surge protective device
- Maximum continuous operating voltage (Uc): up to 385V AC
- Nominal discharge current (In): 5kA (8/20 μs)
- Maximum discharge current (Imax): 10kA (8/20 μs)
- Voltage protection level (Up): ≤ 1.5kV
- Protection class: IP65
- Standard Compliance: EN/IEC 61643-11
- Terminal protection for high-voltage LED systems
- Integrated IP65-rated structure for outdoor luminaires, traffic lighting and industrial LED drivers
Application:
The product serves as a Category III transient overvoltage suppressor, designed for final-stage protection of single-phase 100-240 V AC power supplies. Installed within the equipment being protected, it implements lightning protection from LPZ2 to LPZ3 zones according to the lightning protection zone concept. Providing both differential-mode and common-mode protection, it effectively safeguards LED lighting systems against damage caused by direct lightning strikes or induced transient overvoltages.
Nomenclature:
VP □ 220–□/ C FL T P -□
1 2 3 4 5 6 7 8 9
|
SN |
Name |
Specification, type code |
|
1 |
Design code |
VP |
|
2 |
Product Series |
M |
|
3 |
Rated supply voltage |
220 V |
|
4 |
Max. Discharge Current Imax |
10: 10 kA |
|
Protection mode |
C: Full Protection |
|
|
6 |
Features & Characteristics |
FL: Fuse, LED Alarm Indication; L: Fuse & LED Alarm Indication |
|
7 |
Interface & Connection |
T: Two-Port |
|
8 |
Design & Construction |
P: Plastic Housing |
|
9 |
Max. continuous operating voltage Uc |
1: AC 275 V; 2: AC 320 V |
Example: VPM220-10/CFLP-1 → Rated supply voltage: 220 V; Imax: 10 kA; Protection mode: Full Protection; Features & Characteristics: Fuse;Design & Construction: Plastic Housing; Uc: AC 275.
Technical parameters:
|
Model |
VPM220-10/T |
VPM220-10/TH |
|
SPD according to EN/IEC 61643-11 |
Type 3 |
Type 3 |
|
Protection mode |
L-PE & N-PE & L-N |
L-PE & N-PE & L-N |
|
Nominal operating voltage Un |
AC 220-240 V 50/60 Hz |
AC 100-277 V 50/60 Hz |
|
Max. continuous operating voltage Uc |
AC 385 V 50/60 Hz |
AC 320 V 50/60 Hz |
|
Nominal discharge current In (8/20 μs) |
5 kA |
5 kA |
|
Max. discharge current Imax (8/20 μs) |
10 kA |
10 kA |
|
Voltage protection level Up |
≤ 1.5 kV |
L-N/L-PE ≤ 1.5 kV, N-PE ≤ 2.6 kV |
|
Leakage current |
≤ 10 μA |
≤ 20 μA |
|
Response time |
≤ 25 ns |
L-N/L-PE ≤ 100 ns, N-PE ≤ 25 ns |
|
Normal/Fault Indication |
Green/Red |
Green/Red |
|
Installation method |
Parallel installation |
Series installation |
|
Housing material |
UL94-V0 |
UL94-V0 |
|
Protection class |
IP65 |
IP65 |
|
Relative humidity |
≤ 95% (25 °C) |
≤ 95% (25 °C) |
|
Operating temperature |
-40 °C ~ +80 °C |
-40 °C ~ +80 °C |
|
Operating altitude |
≤ 4000 m |
≤ 4000 m |
|
Outline dimensions (without terminal) |
73 mm × 42 mm × 30.4 mm (tolerance ± 1 mm) |
/ |
|
Internal protection device |
The lightning protection unit has a built-in thermal trip device |
The lightning protection unit has a built-in thermal trip device |
|
Extraction wire |
L - Brown, N - Blue (European standard wire, H05V-K1.0) |
L - Black, N - White, PE - Green |
|
Power Distribution System |
LED |
LED |
Selection guide:
|
Model |
Un |
Uc |
Up |
In |
Imax |
Protection mode |
Operating Principle |
Size |
|
AC 220 V-240 V |
AC 385 V |
1.5 kV |
5 kA |
10 kA |
L-PE & N-PE & L-N |

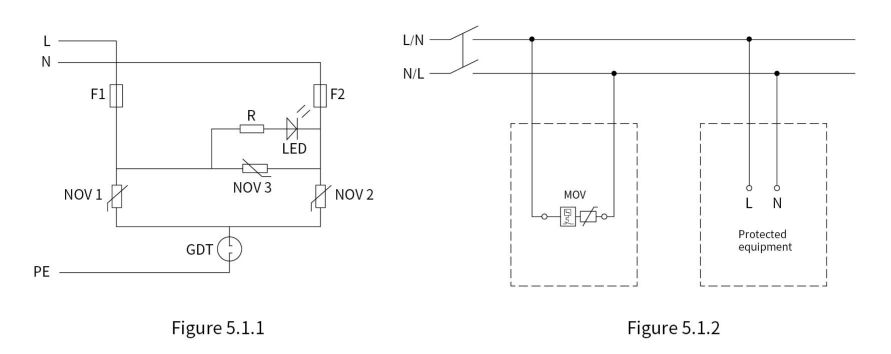

Figure 5.1.2 |

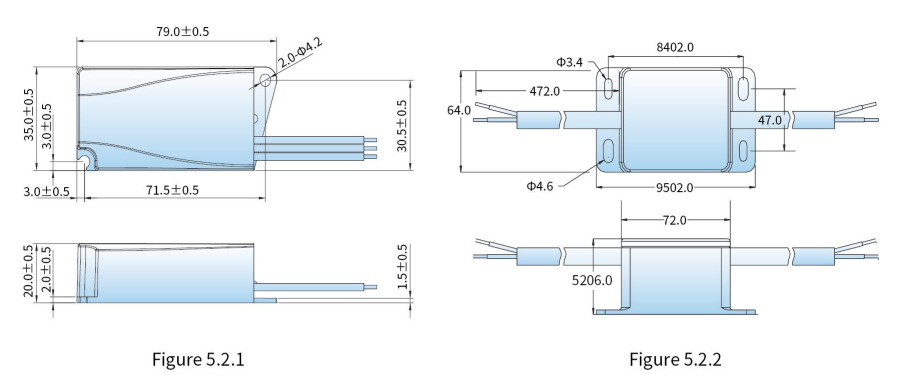

Figure 5.2.2 |
|
|
VPM220-10/TH |
AC 100 V-277 V |
AC 320V |
1.5kV |
5 kA |
10 kA |
L-PE & N-PE & L-N |

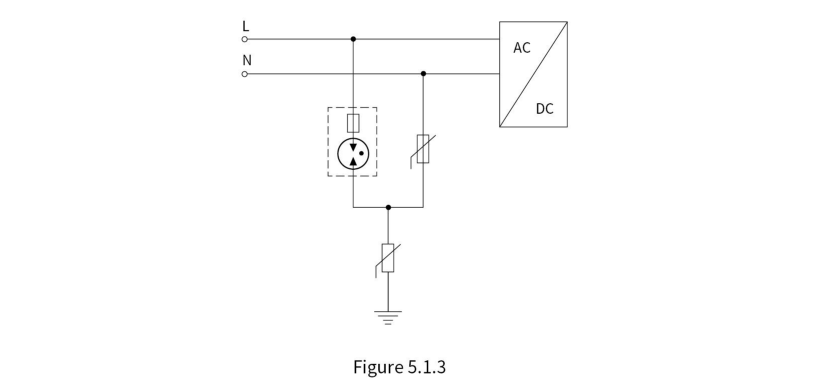

Figure5.1.3 |

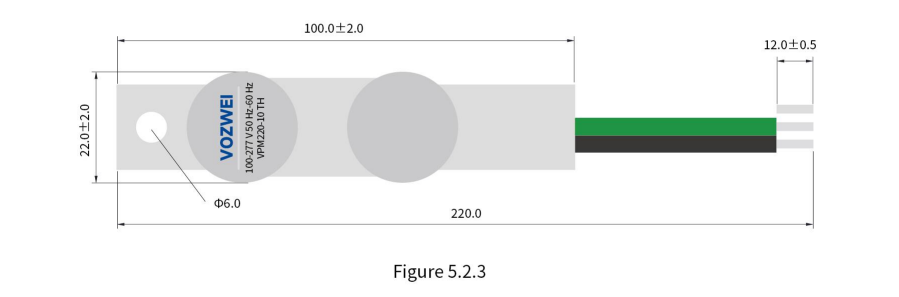

Figure5.2.3 |
|
VPM220-10/TS |
AC 100 V-277 V |
AC 320 V |
1.5 kV |
5 kA |
10 kA |
L-PE & N-PE & L-N |

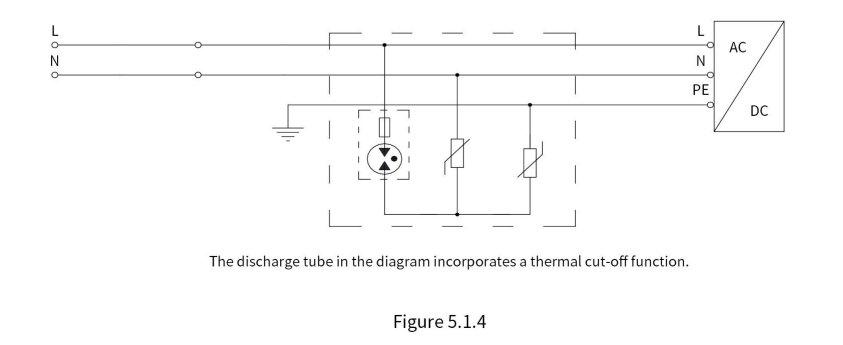

Figure 5.1.4 |

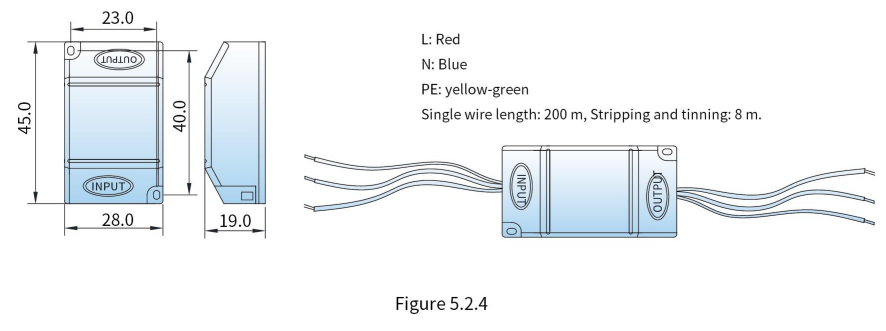

Figure 5.2.4 |
Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VPM220-10 (T) Series?
A: It is a robust Type 3 surge protective device (SPD) optimized for terminal protection of high-voltage LED systems.
Q: What is its maximum continuous operating voltage?
A: It supports a maximum continuous operating voltage (Uc) of up to 385V AC.
Q: What are the discharge current ratings?
A: It handles a nominal discharge current (In) of 5kA and a maximum discharge current (Imax) of 10kA (8/20 μs).
Q: What is its protection class?
A: It features an integrated IP65-rated structure for reliable outdoor installation.
Q: What applications is it ideal for?
A: It is ideal for outdoor luminaires, traffic lighting, and industrial LED drivers.
