VPM220-10 (CFLP) Series Type 3 LED SPD
The VPM220-10 (CFLP) is a specialized Type 3 SPD engineered for LED lighting and sensitive terminal equipment. Supporting Uc up to 320V AC, it handles an In of 5 kA and an Imax of 10 kA (8/20 μs). With Up ≤ 1.6 kV, it provides fine protection against transient overvoltages. Fully EN/IEC 61643-11 compliant and perfect for street lighting, signage, and compact LED drivers.
Highlights
- Terminal Type 3 protection for LED lighting and signage
- Handles a nominal 5kA In with 10kA Imax (8/20 μs)
- Low voltage protection level Up ≤ 1.6kV
- Fully EN/IEC 61643-11 compliant
Product Information
- Type: Type 3 LED surge protective device
- Maximum continuous operating voltage (Uc): up to 320V AC
- Nominal discharge current (In): 5kA (8/20 μs)
- Maximum discharge current (Imax): 10kA (8/20 μs)
- Voltage protection level (Up): ≤ 1.6kV
- Standard Compliance: EN/IEC 61643-11
- Fine protection for LED lighting and sensitive terminal equipment
- Ideal for street lighting, signage, and compact LED drivers
Application:
The product serves as a Category III transient overvoltage suppressor, designed for final-stage protection of single-phase 100-240 V AC power supplies. Installed within the equipment being protected, it implements lightning protection from LPZ2 to LPZ3 zones according to the lightning protection zone concept. Providing both differential-mode and common-mode protection, it effectively safeguards LED lighting systems against damage caused by direct lightning strikes or induced transient overvoltages.
Nomenclature:
VP □ 220–□/ C FL T P -□
1 2 3 4 5 6 7 8 9
|
SN |
Name |
Specification, type code |
|
1 |
Design code |
VP |
|
2 |
Product Series |
M |
|
3 |
Rated supply voltage |
220 V |
|
4 |
Max. Discharge Current Imax |
10: 10 kA |
|
Protection mode |
C: Full Protection |
|
|
6 |
Features & Characteristics |
FL: Fuse, LED Alarm Indication; L: Fuse & LED Alarm Indication |
|
7 |
Interface & Connection |
T: Two-Port |
|
8 |
Design & Construction |
P: Plastic Housing |
|
9 |
Max. continuous operating voltage Uc |
1: AC 275 V; 2: AC 320 V |
Example: VPM220-10/CFLP-1 → Rated supply voltage: 220 V; Imax: 10 kA; Protection mode: Full Protection; Features & Characteristics: Fuse;Design & Construction: Plastic Housing; Uc: AC 275.
Technical parameters:
|
Model |
VPM220-10/CFLP-1 |
|
SPD according to EN/IEC 61643-11 |
Type 3 |
|
Protection mode |
L-PE & N-PE & L-N |
|
Nominal operating voltage Un |
AC 220-240 V 50/60 Hz |
|
Max. continuous operating voltage Uc |
AC 275 V 50/60 Hz |
|
Nominal discharge current In (8/20 μs) |
5 kA |
|
Max. discharge current Imax (8/20 μs) |
10 kA |
|
Voltage protection level Up |
L-PE/N-PE ≤ 1.5 kV, L-N ≤ 1.3 kV |
|
Leakage current |
≤ 20 μA |
|
Response time |
L-N ≤ 25 ns, L-PE/N-PE ≤ 100 ns |
|
Normal/Fault Indication |
Green/Red |
|
Installation method |
Parallel installation |
|
Housing material |
UL94-V0 |
|
Protection class |
IP20 |
|
Relative humidity |
≤ 95% (25 °C) |
|
Operating temperature |
-40 °C ~ +80 °C |
|
Operating altitude |
≤ 4000 m |
|
Outline dimensions (without terminal) |
79 mm × 35 mm × 20 mm (tolerance ± 1 mm) |
|
Internal protection device |
The lightning protection unit has a built-in thermal trip device |
|
Extraction wire |
L – Brown, N – Blue, PE - Yellow-Green, Wire Length 120 mm |
|
Power Distribution System |
TN |
Selection guide:
|
Model |
Un |
Uc |
Up |
In |
Imax |
Protection mode |
Operating Principle |
Size |
|
AC 230 V |
AC 275 V |
1.5 kV |
5 kA |
10 kA |
L-PE & N-PE & L-N |

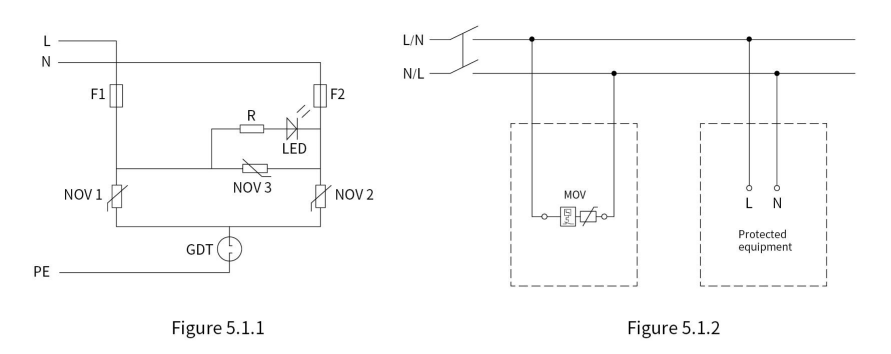

Figure 5.1.1 |

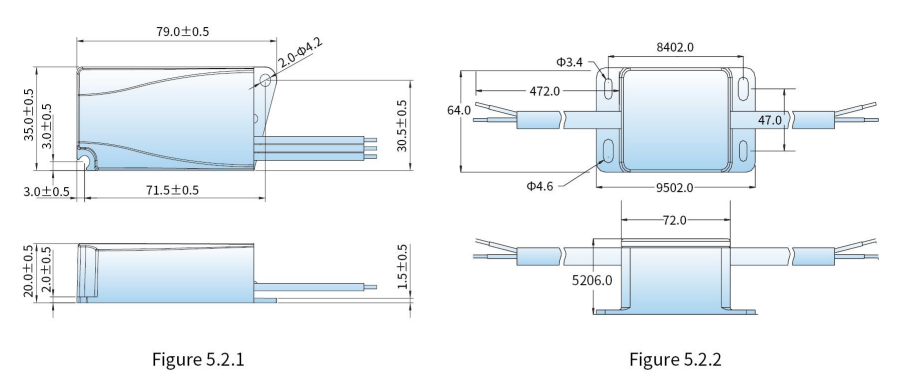

Figure 5.2.1 |
|
|
VPM220-10/CFLP-2 |
AC 230 V |
AC 320 V |
1.6 kV |
5 kA |
10 kA |
L-PE & N-PE & L-N |
Figure 5.1.1 |
Figure 5.2.1 |

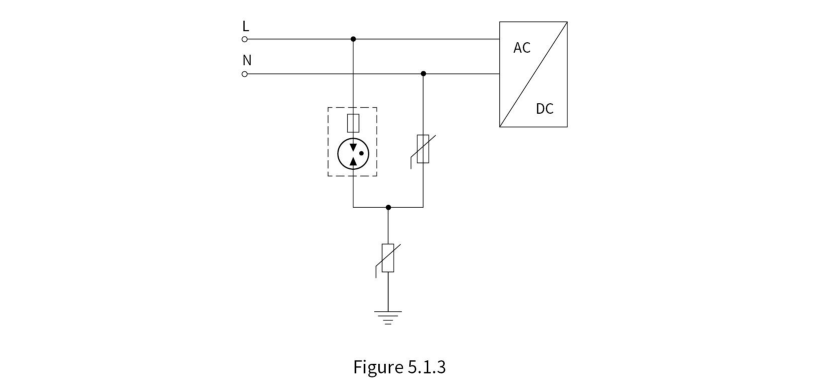

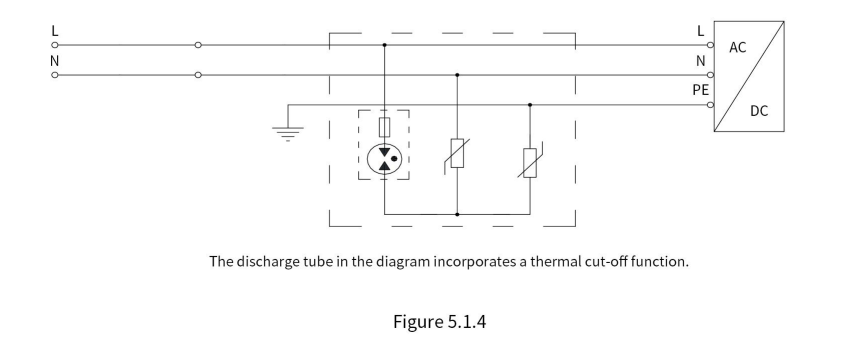

Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VPM220-10 (CFLP) Series?
A: It is a specialized Type 3 surge protective device (SPD) engineered for LED lighting and sensitive terminal equipment.
Q: What is its maximum continuous operating voltage?
A: It supports a maximum continuous operating voltage (Uc) of up to 320V AC.
Q: What are the discharge current ratings?
A: It handles a nominal discharge current (In) of 5kA and a maximum discharge current (Imax) of 10kA (8/20 μs).
Q: What is its voltage protection level?
A: It features a voltage protection level (Up) of ≤ 1.6kV.
Q: What applications is it ideal for?
A: It is ideal for street lighting, signage, and compact LED drivers.
