VPM1000-50 (T1+T2) Series Type 1+2 AC SPD
The VPM1000-50 is a premier Type 1+2 AC SPD for ultra-high voltage protection. Supporting Uc up to 1000V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 50 kA (8/20 μs). Featuring Up ≤ 7.0 kV, it is fully EN/IEC 61643-11 compliant. Engineered for maximum safety in large-scale PV AC-side and high-voltage industrial power systems.
Highlights
- Combined Type 1+2 protection for ultra-high voltage up to 1000V AC
- Withstands direct lightning with Iimp of 12.5kA (10/350 μs)
- Maximum discharge capacity Imax of 50kA (8/20 μs)
- Fully EN/IEC 61643-11 compliant
Product Information
- Type: Type 1+2 (T1+T2) AC surge protective device
- Maximum continuous operating voltage (Uc): up to 1000V AC
- Lightning impulse current (Iimp): 12.5kA (10/350 μs)
- Maximum discharge current (Imax): 50kA (8/20 μs)
- Voltage protection level (Up): ≤ 7.0kV
- Standard Compliance: EN/IEC 61643-11
- Premier Type 1+2 protection for ultra-high voltage systems
- Engineered for maximum safety in large-scale PV AC-side and high-voltage industrial power systems
Application:
The VPM1000 series are combined Type 1 + Type 2 surge protective devices (SPDs). Their integrated design provides coordinated two-stage protection within a single unit: high-energy impulse current (Iimp) discharge for primary protection at the LPZ0-1 boundary, followed by fine protection with low residual voltage. This makes them ideal, space-saving solutions for main power inlets and distribution boards in commercial, industrial, and critical infrastructure applications requiring maximum reliability against lightning and surge threats.
Technical parameters:
|
Model |
VPM1000-50/3N+NPG(T1+T2) |
|
SPD according to EN/IEC 61643-11 |
Type 1+2 |
|
Network |
/ |
|
Protection mode |
3+1 mode |
|
Nominal operating voltage Un |
AC 800 V 50/60 Hz |
|
Max. continuous operating voltage Uc |
L-N: AC 1000 V; N-PE: AC 255 V |
|
Impulse current Iimp (10/350 μs) |
12.5 kA |
|
Nominal discharge current In (8/20 μs) |
25 kA |
|
Max. discharge current Imax (8/20 μs) |
50 kA |
|
Voltage protection level Up |
L-N ≤ 5.0 kV; N-PE ≤ 2.0 kV; L-PE ≤ 7.0 kV |
|
Leakage current |
≤ 20 μA |
|
Response time |
L-N ≤ 25 ns; N-PE ≤ 100 ns |
|
Max. backup fuse |
80 A gL/gG |
|
Cross-sectional area |
6 ~ 35 mm2 |
|
Stripping length terminals |
12.5 mm |
|
Tightening torque |
3 N·m |
|
Normal/Fault Indication |
Green/Red |
|
Remote signaling mode |
RSC: Remote Signal contact, NC-COM-NO contact |
|
Performances of remote signal contact |
AC: 250 V/0.5 A; DC: 250 V/0.1 A, 125 V/0.2 A, 75 V/0.5 A |
|
Remote cross-sectional area |
Max. 1.5 mm2 |
|
Installation method |
35 mm DIN rail |
|
Housing material |
PA66 UL94-V0 |
|
Protection class |
IP20 |
|
Operation temperature |
-40 °C ~ +70 °C |
|
Relative humidity |
≤ 95% (25 °C) |
|
Operating altitude |
≤ 3000 m |
|
Outline dimensions (without terminal) |
92 mm × 90 mm × 85.4 mm (tolerance ± 1 mm) |
|
Module pluggable |
Pluggable |
|
Internal protective devices |
Low-temperature tripping device |
|
Short-circuit withstand capability |
/ |
Selection guide:
|
Model |
Un |
Uc |
Up |
In |
Imax |
Protection mode |
Operating Principle |
Size |
|
VPM1000-50/3N+NPG(T1+T2) |
AC 800 V |
AC 1000 V |
7.0 kV |
25 kA |
50 kA |
L-N & N-PE |

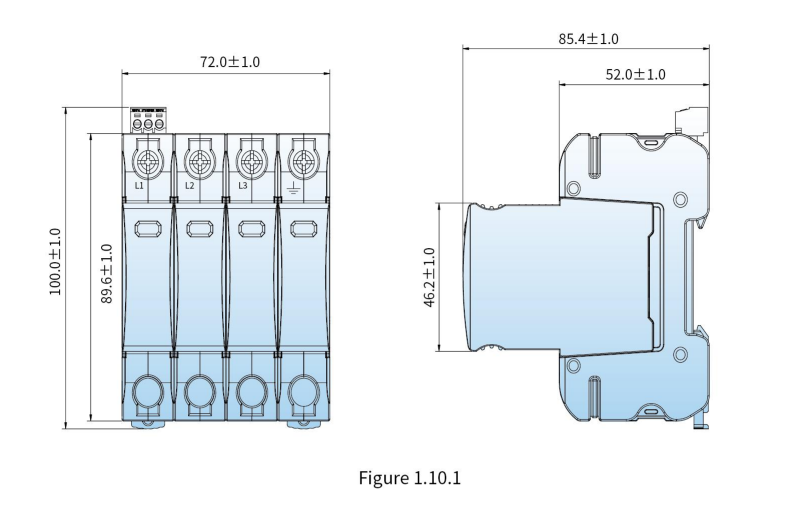

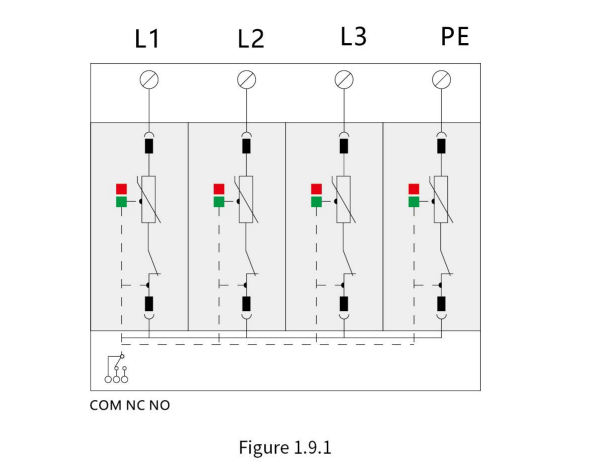

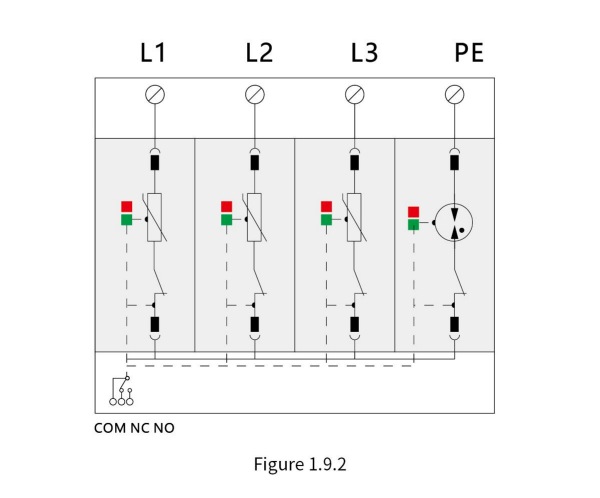

Figure 1.9.2 |

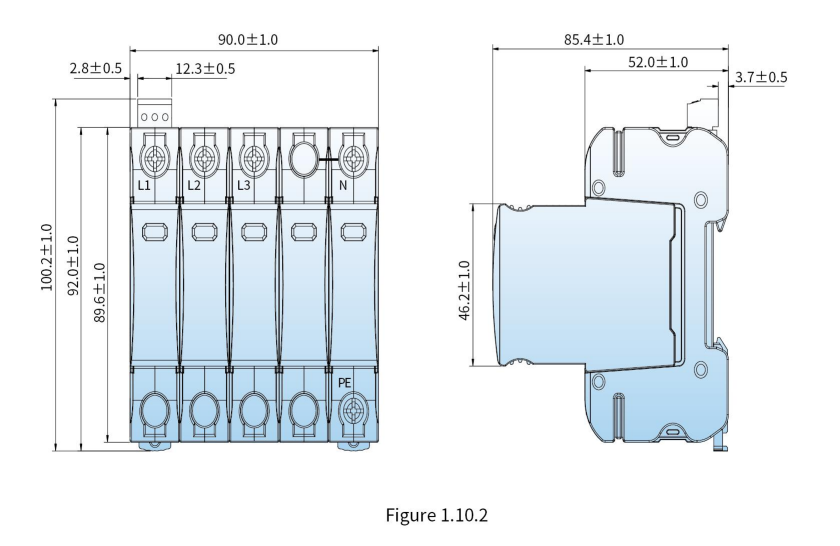

Figure 1.10.2 |
Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VPM1000-50 (T1+T2) Series?
A: It is a premier Type 1+2 combined surge protective device (SPD) that provides dual-layered protection against both direct lightning impulses and induced transient overvoltages in ultra-high voltage AC systems.
Q: What voltage can the VPM1000-50 (T1+T2) Series handle?
A: It supports a maximum continuous operating voltage (Uc) of up to 1000V AC, making it suitable for high-voltage AC applications.
Q: What are the discharge current ratings of the VPM1000-50 (T1+T2) Series?
A: It handles a lightning impulse current (Iimp) of 12.5kA (10/350 μs) and a maximum discharge current (Imax) of 50kA (8/20 μs), with a voltage protection level (Up) of ≤ 7.0kV.
Q: What applications is the VPM1000-50 (T1+T2) Series designed for?
A: It is engineered for maximum safety in large-scale PV AC-side and high-voltage industrial power systems.
Q: What standard does the VPM1000-50 (T1+T2) Series comply with?
A: It is fully compliant with the EN/IEC 61643-11 international standard.
