VP-24 Series Type 3 Signal SPD
The VP-24 is a high-performance Type 3 Signal SPD designed for the fine protection of 24V DC control and data lines. With a Uc of 32V DC, it handles an In of 5 kA and Imax of 10 kA, featuring Iimp of 0.5 kA for enhanced durability. Its low Up < 150V ensures the safety of sensitive components. Fully EN/IEC 61643-11 compliant, it is ideal for PLC I/O, industrial automation, and 24V power loops.
Highlights
- Fine signal protection for 24V DC control and data lines
- Low voltage protection level Up < 150V
- Lightning impulse current Iimp of 0.5kA (10/350 μs)
- Fully EN/IEC 61643-11 compliant
Product Information
- Type: Type 3 signal surge protective device
- Nominal operating voltage (Un): DC 24V
- Maximum continuous operating voltage (Uc): DC 32V
- Nominal discharge current (In): 5kA (8/20 μs)
- Maximum discharge current (Imax): 10kA (8/20 μs)
- Lightning impulse current (Iimp): 0.5kA (10/350 μs)
- Voltage protection level (Up): < 150V
- Standard Compliance: EN/IEC 61643-11
- Fine protection for 24V DC control and data lines
- Ideal for PLC I/O, industrial automation, and 24V power loops
Application:
The product series adopts a multi-stage protection architecture. The front stage utilizes gas discharge tubes (GDTs) to withstand high lightning current impulses, while the rear stage employs low-capacitance TVS diodes for fast response speed. It provides protection for 1-pair and 2-pair lines, effectively safeguarding communication signal equipment from transient overvoltage interference and damage.
Technical parameters:
|
Model |
VP-24K2 |
|
SPD according to EN/IEC 61643-11 |
Type 3 |
|
Protection mode |
Common mode, differential mode |
|
Protection line |
L-L & L-PE |
|
Nominal operating voltage Un |
DC 24 V |
|
Max. continuous operating voltage Uc |
DC 32 V |
|
Impact limit voltage (1 kV/μs) |
< 40 V |
|
Impulse current Iimp (10/350 μs) |
0.5 kA |
|
Nominal discharge current In (8/20 μs) |
5 kA |
|
Max. discharge current Imax (8/20 μs) |
10 kA |
|
Leakage current |
700 mA |
|
Normal/Fault Indication |
Green/Red |
|
Installation method |
35 mm DIN rail |
|
Housing material |
PBT UL94-V0 |
|
Protection class |
IP20 |
|
Outline dimensions (without terminal) |
90 mm × 25 mm × 74.5 mm (tolerance ± 1 mm) |
|
Insertion loss (at maximum load) |
< 1 dB |
|
Cut-off frequency |
3 Mbps |
|
Max. series impedance |
1 Ω |
|
Wiring method |
Crimping frame connection |
|
Grounding method |
Compatible with rail grounding or dedicated port grounding |
Selection guide:
|
Model |
Un |
Uc |
Up |
In |
Imax |
In-total |
Protection mode |
Operating Principle |
Size |
|
DC 24 V |
DC 32 V |
5 kA |
10 kA |
20 kA |
Common mode, differential mode |

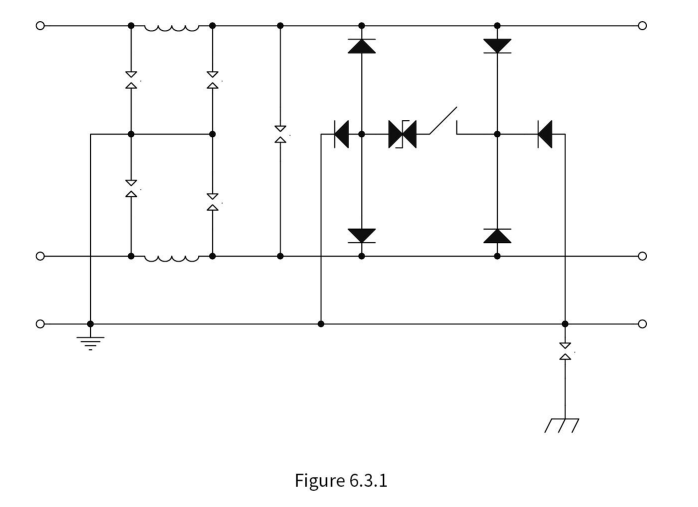

Figure 6.3.1 |

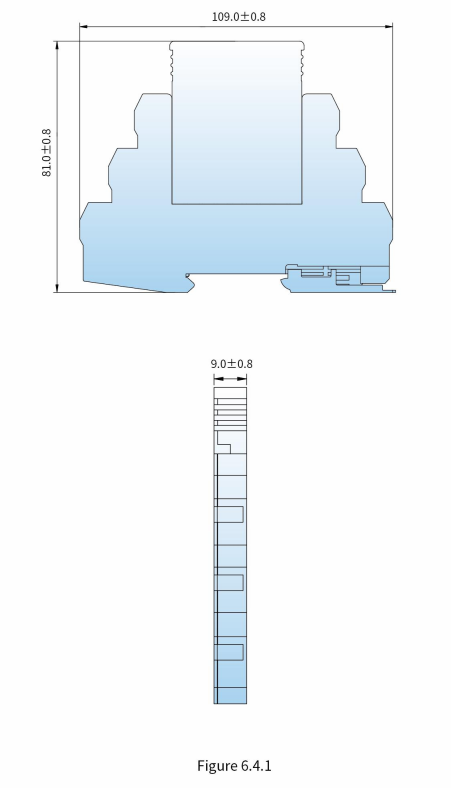

Figure 6.4.1 |
||
|
VP-24K4 |
DC 24 V |
DC 32 V |
< 150 V |
5 kA |
10 kA |
40 kA |
Common mode, differential mode |
Figure 6.3.1 |
Figure 6.4.1 |
Operating Principle:
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-SPD-Catalog.pdf | Product Catalog | 2.68 MB |
Q: What is the VP-24 Series?
A: It is a high-performance Type 3 signal surge protective device (SPD) designed for fine protection of 24V DC control and data lines.
Q: What is its maximum continuous operating voltage?
A: It features a nominal operating voltage (Un) of DC 24V and a maximum continuous operating voltage (Uc) of DC 32V.
Q: What are the discharge current ratings?
A: It handles a nominal discharge current (In) of 5kA, a maximum discharge current (Imax) of 10kA (8/20 μs), and a lightning impulse current (Iimp) of 0.5kA.
Q: What is its voltage protection level?
A: It features a low voltage protection level (Up) of < 150V.
Q: What applications is it ideal for?
A: It is ideal for PLC I/O, industrial automation, and 24V power loops.
