The product series adopts a multi-stage protection architecture. The front stage utilizes gas discharge tubes (GDTs) to withstand high lightning current impulses, while the rear stage employs low-capacitance TVS diodes for fast response speed. It provides protection for 1-pair and 2-pair lines, effectively safeguarding communication signal equipment from transient overvoltage interference and damage.
|
Model |
VP-05K2 |
|
SPD according to EN/IEC 61643-11 |
Type 3 |
|
Protection mode |
Common mode, differential mode |
|
Protection line |
L-L & L-PE |
|
Nominal operating voltage Un |
DC 5 V |
|
Max. continuous operating voltage Uc |
DC 8 V |
|
Impact limit voltage (1 kV/μs) |
< 20 V |
|
Impulse current Iimp (10/350 μs) |
0.5 kA |
|
Nominal discharge current In (8/20 μs) |
5 kA |
|
Max. discharge current Imax (8/20 μs) |
10 kA |
|
Leakage current |
700 mA |
|
Normal/Fault Indication |
Green/Red |
|
Installation method |
35 mm DIN rail |
|
Housing material |
PBT UL94-V0 |
|
Protection class |
IP20 |
|
Outline dimensions (without terminal) |
90 mm × 12.5 mm × 74.5 mm (tolerance ± 1 mm) |
|
Insertion loss (at maximum load) |
< 1 dB |
|
Cut-off frequency |
3 Mbps |
|
Max. series impedance |
1 Ω |
|
Wiring method |
Crimping frame connection |
|
Grounding method |
Compatible with rail grounding or dedicated port grounding |
|
Model |
Un |
Uc |
Up |
In |
Imax |
In-total |
Protection mode |
Operating Principle |
Size |
|
DC 5 V |
DC 8 V |
< 100 V
|
5 kA |
10 kA |
20 kA |
Common mode, differential mode |

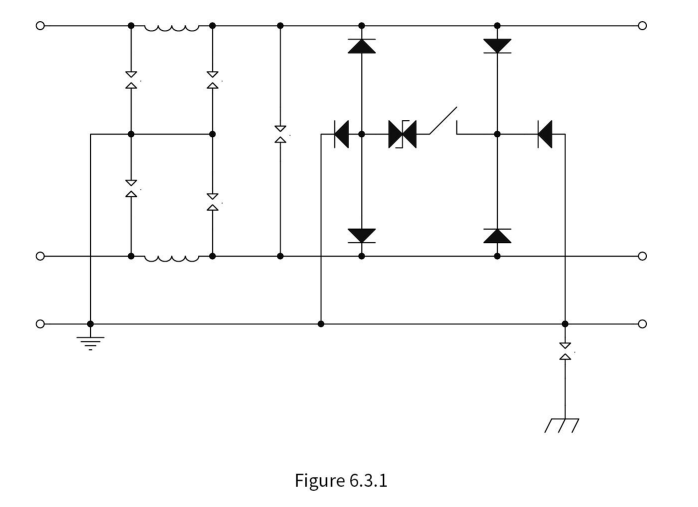

Figure 6.3.1 |

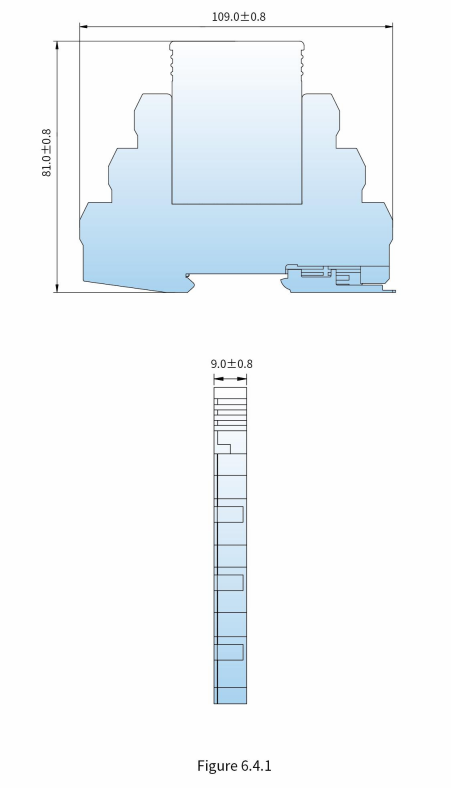

Figure 6.4.1 |
|
|
VP-05K4 |
DC 5 V |
DC 8 V |
L-L ≤ 30V L-PE ≤ 600V |
5 kA |
10 kA |
40 kA |
Common mode, differential mode |
Figure 6.3.1 |
Figure 6.4.1 |
