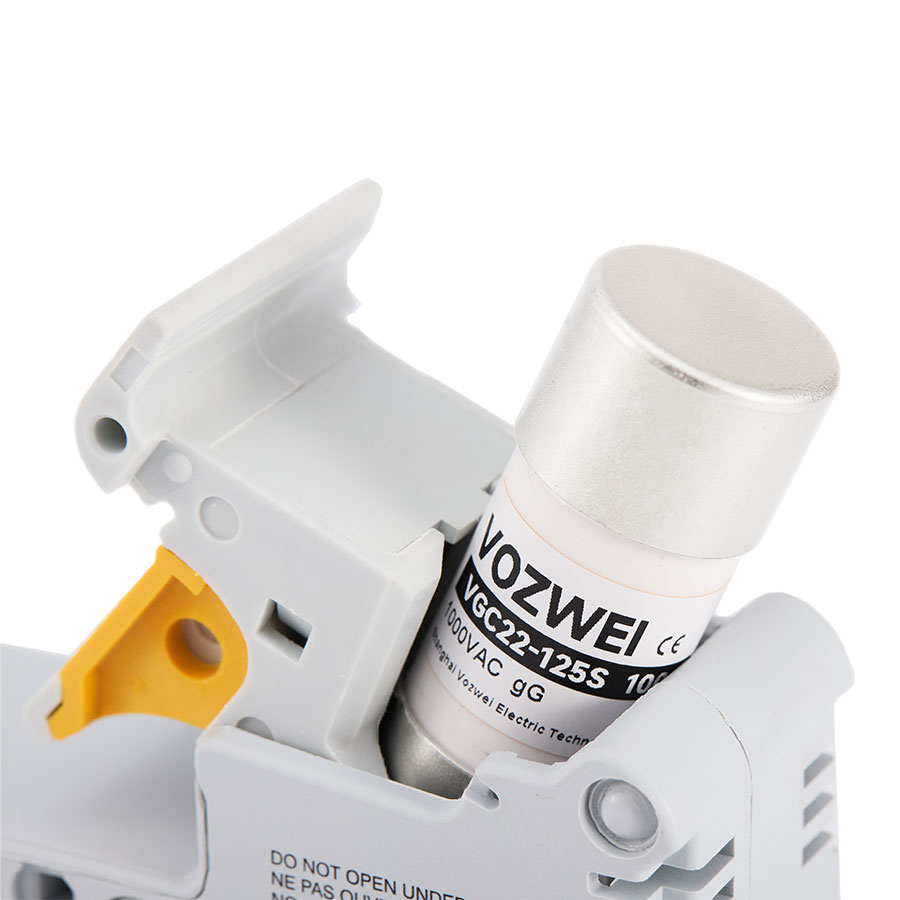

VGC series Fuses
The VGC series are compact high-voltage fuses supporting up to AC1000V/DC800V, providing safe, efficient, and flexible circuit protection.
Highlights
- Compact high-voltage fuses supporting up to AC1000V / DC800V
- High breaking capacity up to 120kA (AC) and 50kA (DC)
- Wide current range from 2A to 125A with gG/gL, aM and aR classes
Product Information
- Rated current (In): 2A to 125A
- Rated voltage: AC400/500/690/1000V, DC440/800V
- Rated breaking capacity: up to 120kA (AC), 50kA (DC)
- Fuse classes: gG/gL, aM, aR
- Fuse sizes: 14x51mm and 22x58mm
- Standard Compliance: IEC 60269
- Compact high-voltage fuses for equipment and circuit protection
- Compatible with matching fuse holders (VRB14 / VRB22 series) rated up to AC1000V
| Item No. | VGC14-32S | VGC22-125S | ||
| Rated voltage(V) | AC400/500/690/1000V DC440/800V | 2A~100A: AC400/690/ 800/1000V, DC440V 125A: AC400/690/800V, DC440V | ||
| Rated current(A) | 2A~50A | 2A~125A | ||
| Rated breaking capacity(kA) | 120kA(AC400/500V) 80kA(AC690V) 50kA(AC1000V, DC440V) 30kA(DC800V) | 120kA(AC400V) 80kA(AC690V) 50kA(AC800/1000V,DC440V) | ||

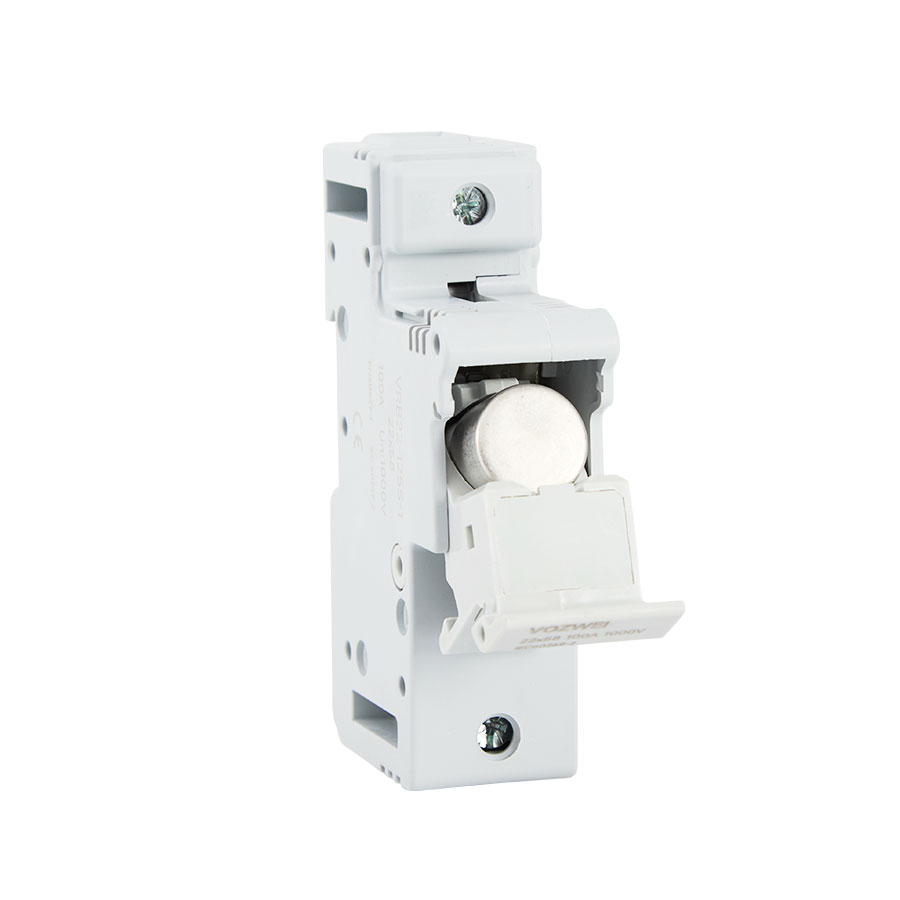

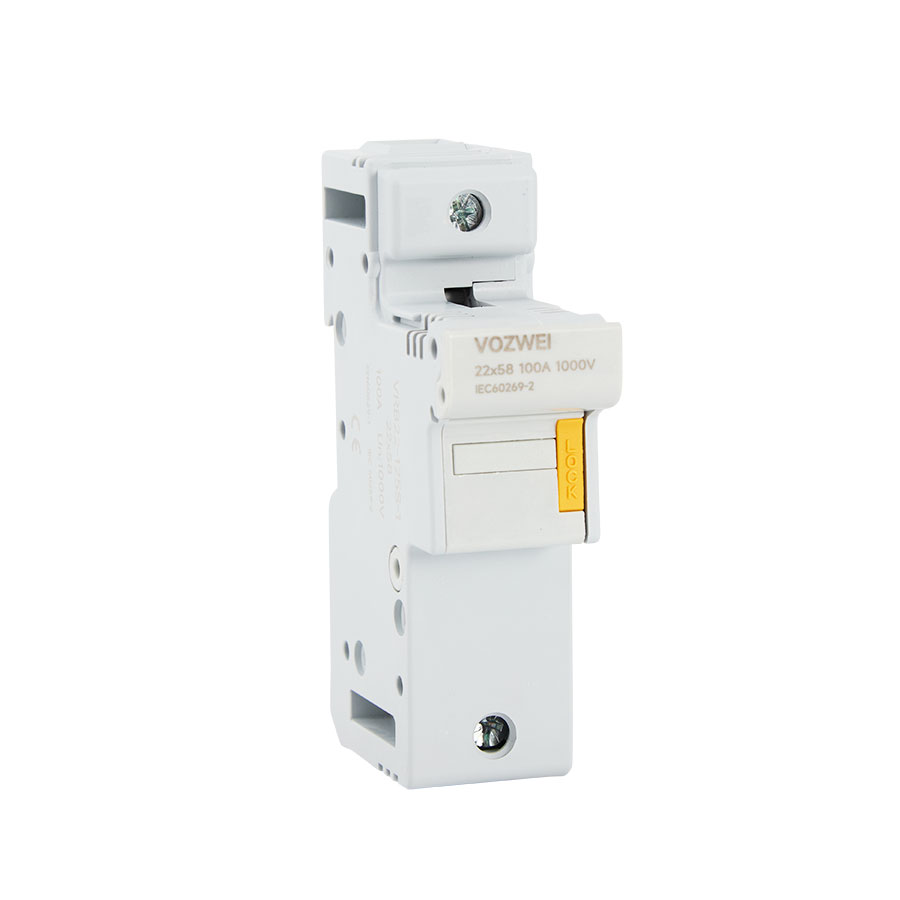

| Fuse Holder |  |
|||
| Item No. | VRB14-63S-1 | VRB14-63T-3 | VRB22-125S-1 | VRB22-125T-3 |
| Rated voltage(V) | AC1000V | AC1000V | ||
| Rated current(A) | 50A | 125A | ||
| Impulse voltage(V) | AC8000V | AC8000V | ||
| Withstand voltage(V) | AC2500V | AC2500V | ||
| Fuse sizes(mm) | 14x51mm | 22 x 58mm | ||
| Number of poles | 1P | 3P | 1P | 3P |
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-Fuses-Catalog.pdf | Product Catalog | 0.36 MB |
Q: What is the rated current range of the VGC series fuses?
A: The VGC series fuses cover a rated current range from 2A to 125A, suitable for equipment and circuit protection in compact systems.
Q: What voltage ratings do the VGC series fuses support?
A: They support rated voltages up to AC1000V and DC800V, adaptable to diverse grid and energy environments.
Q: What is the breaking capacity of the VGC series fuses?
A: They deliver a breaking capacity up to 120kA (AC) and 50kA (DC) for reliable fault interruption.
Q: What fuse classes are available in the VGC series?
A: The VGC series is available in gG/gL, aM, and aR classes, meeting general cable protection, motor protection, and semiconductor protection needs.
Q: What fuse sizes and holders are offered for the VGC series?
A: The VGC series is available in 14x51mm and 22x58mm body sizes, with matching fuse holders (VRB14-63S-1, VRB14-63T-3, VRB22-125S-1, VRB22-125T-3) rated up to AC1000V.
Q: What standard do the VGC series fuses comply with?
A: They are designed in accordance with the IEC 60269 international standard for low-voltage fuses.
