VW3GZ-16 Series DC Disconnector
The VW3GZ-16 Series is a DC disconnector designed for photovoltaic, wind power and energy storage systems, with rated current from 200A to 1600A and rated working voltage up to DC1500V.
Disconnect Switch
Keeping your grid reliable has never been more important. With the power usage patterns shifting dramatically in these challenging times, power operators need to do make everything they can to avoid outages.
FAQs
Q: Which VOZWEI DC disconnect switch series are available?

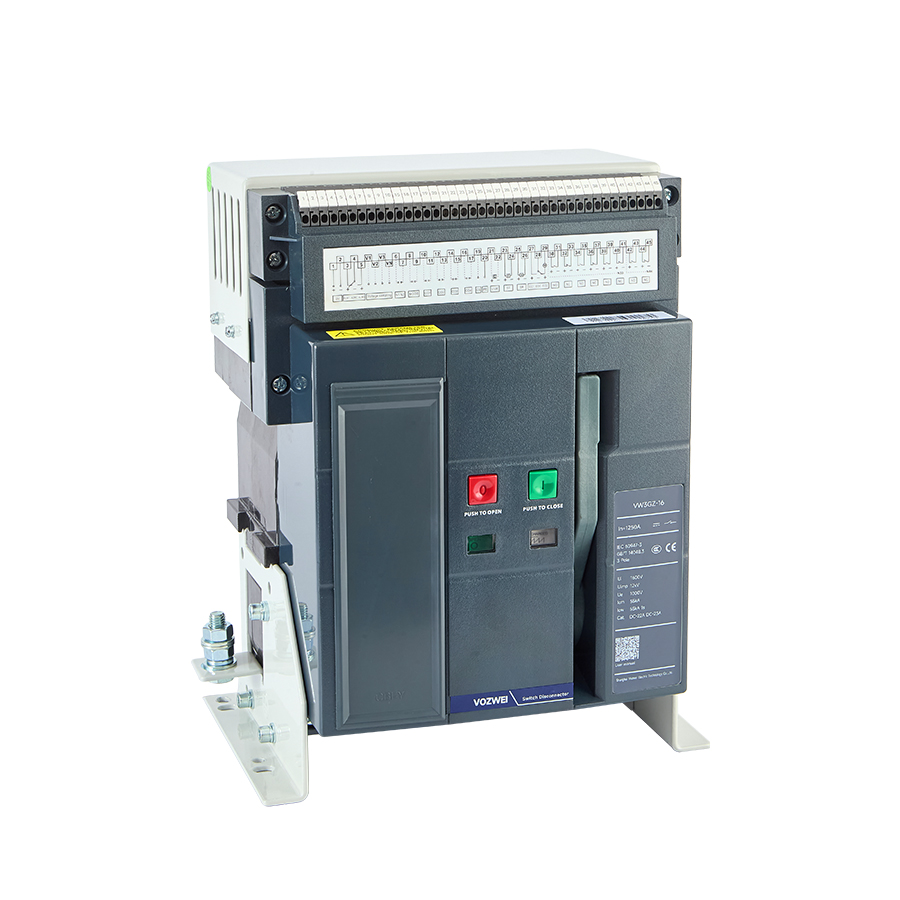

A: VOZWEI offers two DC disconnect switch series for main-circuit isolation: the VW3GZ-16 covers In 200A–1600A and the VW3GZ-40 covers In 630A–4000A. Both work up to DC1500V, with Icw 55kA/1s on the VW3GZ-16 and 100kA/1s on the VW3GZ-40.
Q: What are the main differences between VOZWEI VW3GZ-16 and VW3GZ-40?

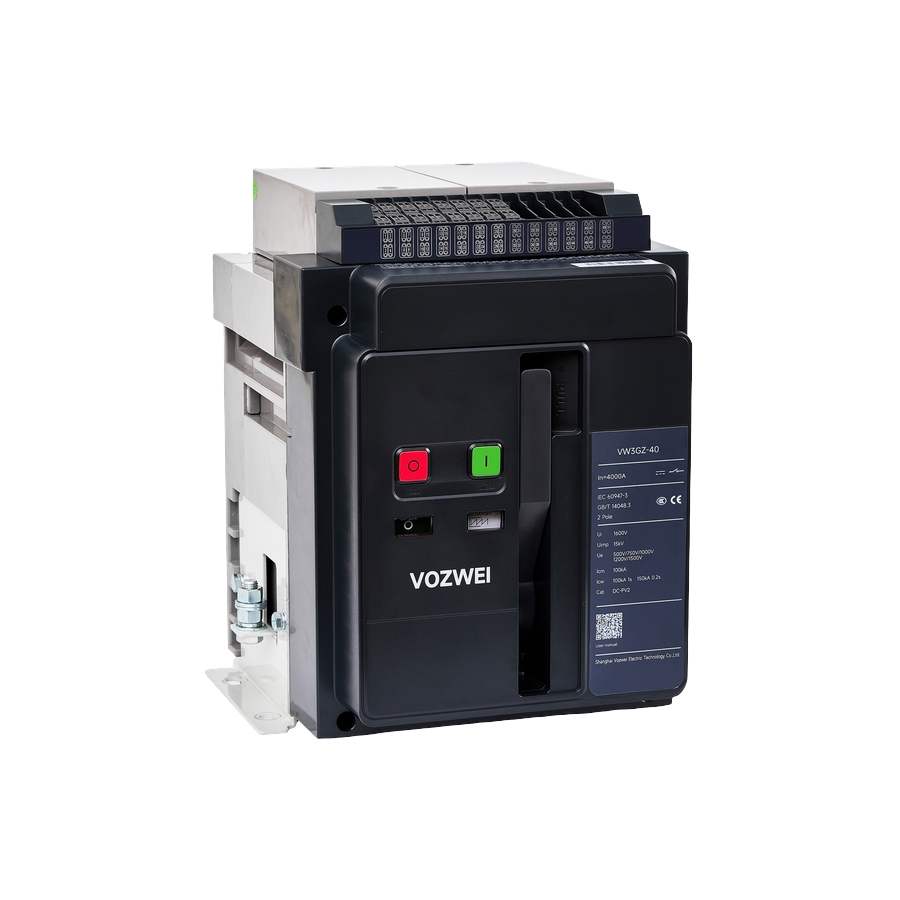

A: The VOZWEI VW3GZ-16 covers In 200A–1600A with Icw 55kA/1s, IP30 and DC22A/DC23A utilization categories. The larger VOZWEI VW3GZ-40 covers In 630A–4000A with Icw 100kA/1s and 150kA/0.2s, IP40 and the DC-PV2 photovoltaic category. Both share a DMC housing and dual-stage main-arc contacts.
Q: What pole configurations does the VOZWEI VW3GZ support?
A: On the VOZWEI VW3GZ-16, the 3P version is rated DC1000V and the 4P version DC1500V, so DC1500V arrays need the 4P. The VOZWEI VW3GZ-40 is offered only in 2P, which simplifies wiring. Check pole count, voltage and Icw together.
Q: Which VOZWEI VW3GZ switch suits DC1500V systems?
A: For DC1500V solar or storage main circuits, choose a VOZWEI VW3GZ-16 in its 4P version or a VOZWEI VW3GZ-40 in 2P covering DC500/750/1000/1200/1500V. Match In to the load (200A–1600A on the VW3GZ-16 or 630A–4000A on the VW3GZ-40) and confirm Icw exceeds the prospective short-circuit current.
Q: How do I select VOZWEI VW3GZ-16 or VW3GZ-40 rating?
A: Select the VOZWEI VW3GZ-16 for In 200A–1600A with Icw 55kA/1s, or the VW3GZ-40 for In 630A–4000A with Icw 100kA/1s and 150kA/0.2s. In must cover continuous main-circuit current and Icw must exceed the prospective short-circuit current at the isolation point.
Q: What do DC22A, DC23A and DC-PV2 mean on VOZWEI VW3GZ?
A: Utilization categories describe switching duty. The VOZWEI VW3GZ-16 is rated DC22A and DC23A, covering mixed resistive-inductive DC loads plus highly inductive DC circuits. The VOZWEI VW3GZ-40 is rated DC-PV2, the photovoltaic category for DC switching in PV arrays.
Q: Which applications suit VOZWEI VW3GZ disconnect switches?
A: The VOZWEI VW3GZ-16 and VW3GZ-40 disconnect switches isolate the main DC circuit in solar and energy storage systems at up to DC1500V. Both operate from -40°C to +75°C, with IP30 on the VW3GZ-16 and IP40 on the VW3GZ-40, and dual-stage main-arc contact design.
Q: How does VOZWEI VW3GZ differ from a VOZWEI VGC fuse?
A: A VOZWEI VW3GZ disconnect switch is intended for main-circuit isolation and is rated for short-time withstand current Icw, not for fault-current breaking. A VOZWEI VGC fuse provides overcurrent protection with up to 50kA DC breaking capacity. Use the VW3GZ together with a VOZWEI VGC fuse or other DC-rated overcurrent device.
