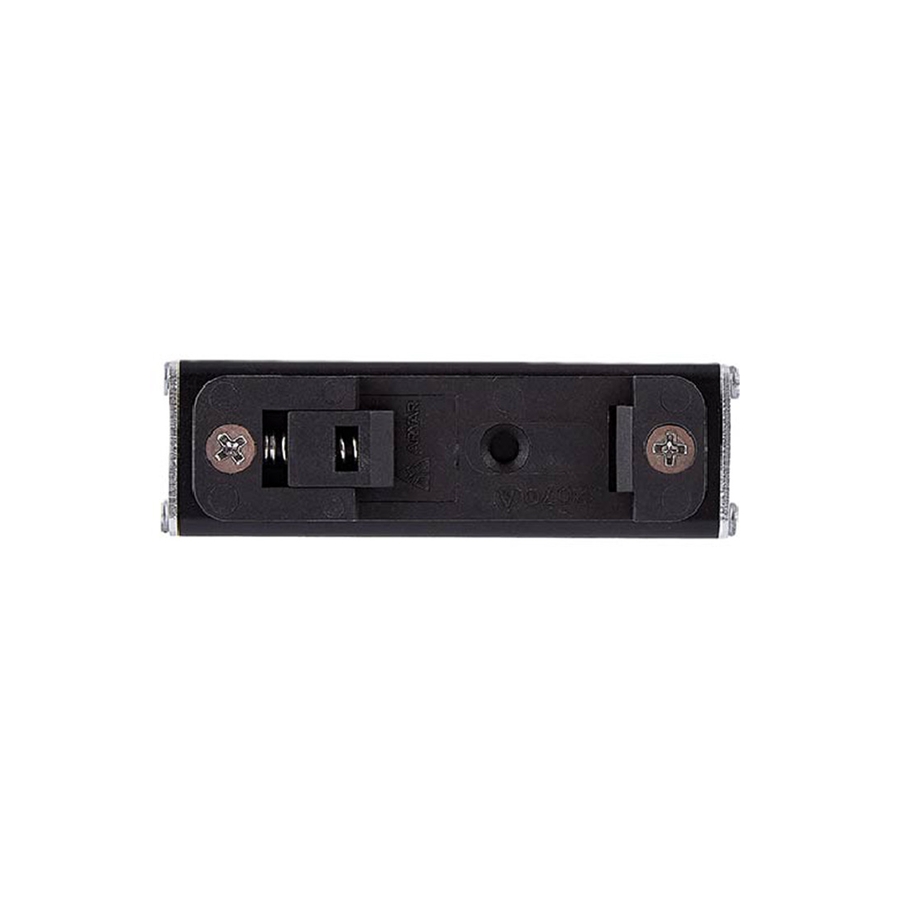

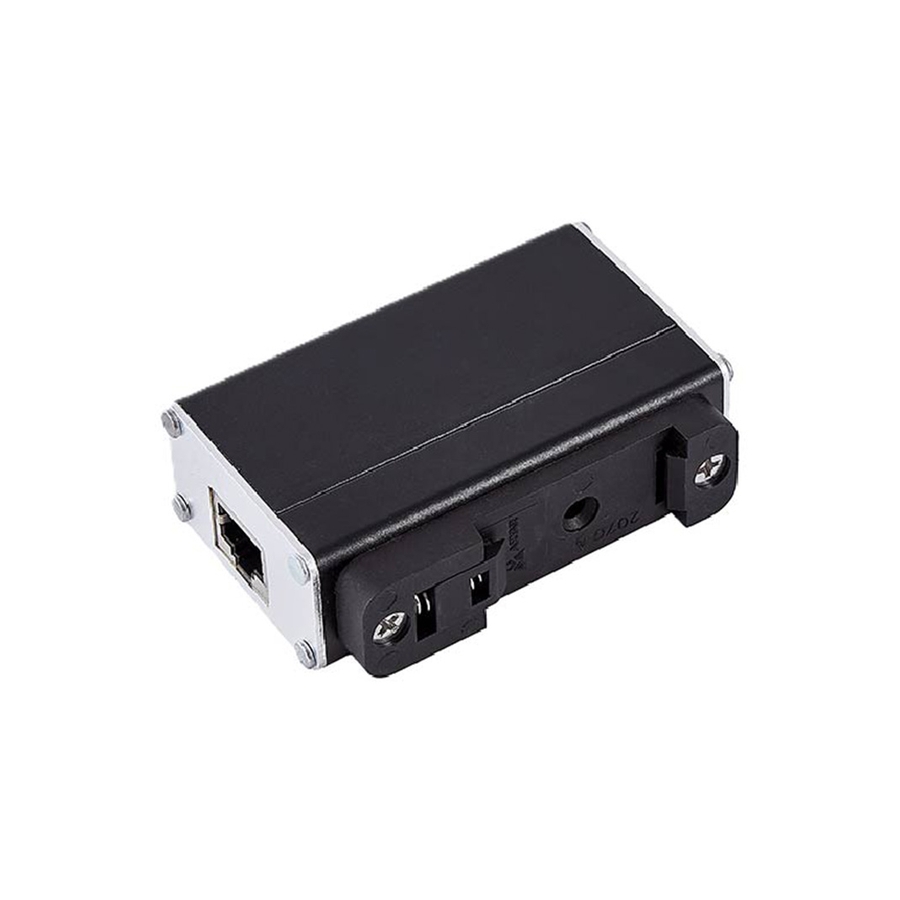

VPX05K05X-RJ45H48-8, DC8V SPD

  • Utilizes precision GDT/TVS multi-stage protection circuit with low capacitance design
  • Plug-and-play operation with visual protection status indicators
  • Compact metal housing for 19-inch rack mounting (1U)
  • Protection modes: Line-Line & Line-Ground for all data pairs and power pairs
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 2
Protected pinAll 8 pins protected
Signal part
Nominal operating voltage UnDC 5V
Max. continuous operating voltage, UcDC 8V
Series impedance/per line0.5 Ω
Nominal discharge current In2kA
Transfer rate1000 Mbps
Protection voltage C2(1kA, 8/20 μs)L/L: ≤25V, L/PE: ≤100V
Protection voltage C3(1kV/μs)L/L: ≤25V, L/PE: ≤100V
Power supply part
Nominal operating voltage UnDC 48V
Max. continuous operating voltage UcDC 60V
Max. load current2 A
Series impedance/per line0.5 Ω
Nominal discharge current In2kA
Protection voltage C2 (1kA, 8/20 μs)L/L: ≤25V, L/PE: ≤100V
Protection voltage C3 (1kV/μs)L/L: ≤25V, L/PE: ≤100V
Installation method35mm DIN rail
Housing materialAluminum Profile
Protection classIP20
Outline dimensions (without terminal)78 mm×54 mm×25mm (tolerance±1mm)
Operating temperature-5℃~+40℃ (Normal temperature range); -40℃~+70℃ (Extreme temperature range)
Relative humidity5%~95% (25℃)
Operating altitude≤3000 m

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
