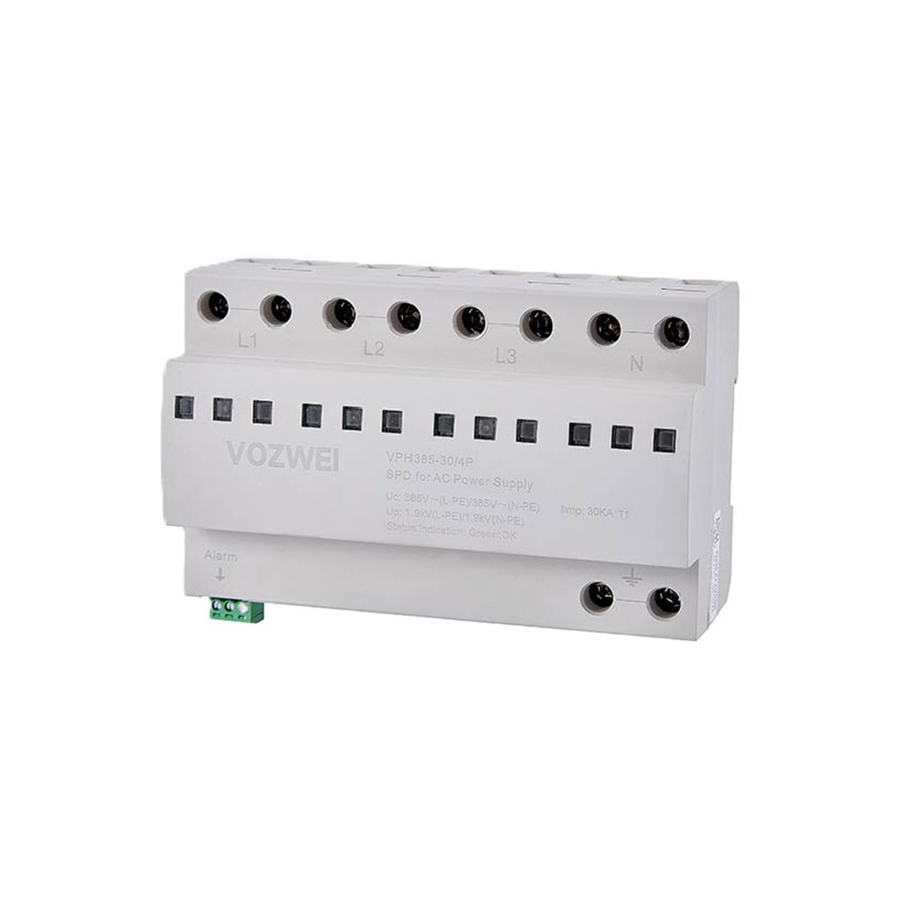

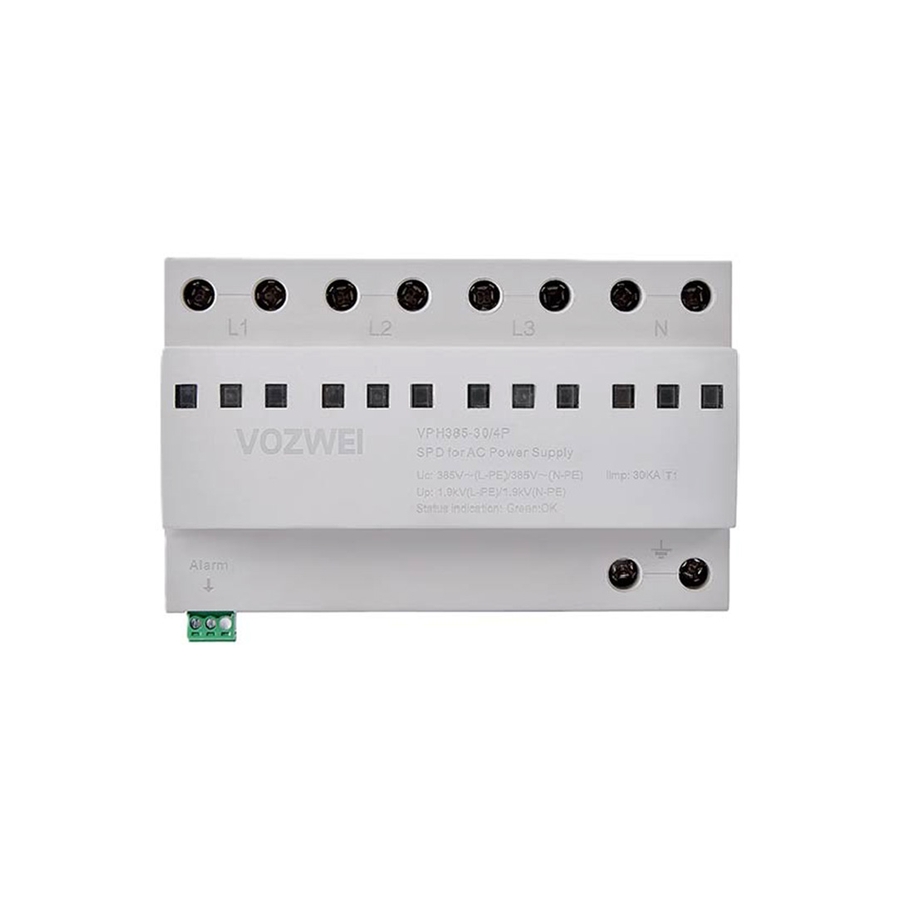

VPH385-30/4P, AC385V SPD

  • Impulse current Iimp (10/350μs):30kA
  • Selectable circuit protection modes: 4P
  • Rated for 400V AC systems
  • Utilizes high-performance graphite or gas discharge tube (GDT) technology with superior follow-current interruption capability
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 1
Protection modeL-PE&N-PE
Nominal operating voltage UnAC 230/400V 50/60Hz
Max. continuous operating voltage UcAC 385V 50/60Hz
Impulse current Iimp (10/350 μs)30kA
Voltage protection level Up≤1.9kV
Response time≤100 ns
Cross-sectional area6~35mm 2
Stripping length terminals12.5mm
Tightening torque3N·m
Normal/Fault IndicationGreen/Red
Remote signaling modeRSC: Remote Signal contact, NC-COM contact.
Performances of remote signal contactMax open circuit voltage: 300V; Maximum load current: 100 mA; Node equivalent resistance: 50 Ω
Remote cross-sectional areaMax. 1.5mm 2
Installation method35mm DIN rail
Housing materialUL94-V0
Protection classIP20
Operating temperature-40℃~+80℃
Relative humidity≤95% (25℃)
Operating altitude≤3000 m
Outline dimensions (without terminal)90mm×144mm×66mm (tolerance±1mm)
Internal protection deviceThe lightning protection unit has a built-in thermal trip device
External protection deviceThe incoming cables must be connected in series to the C circuit breaker with the rated current not exceeding 63A

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
