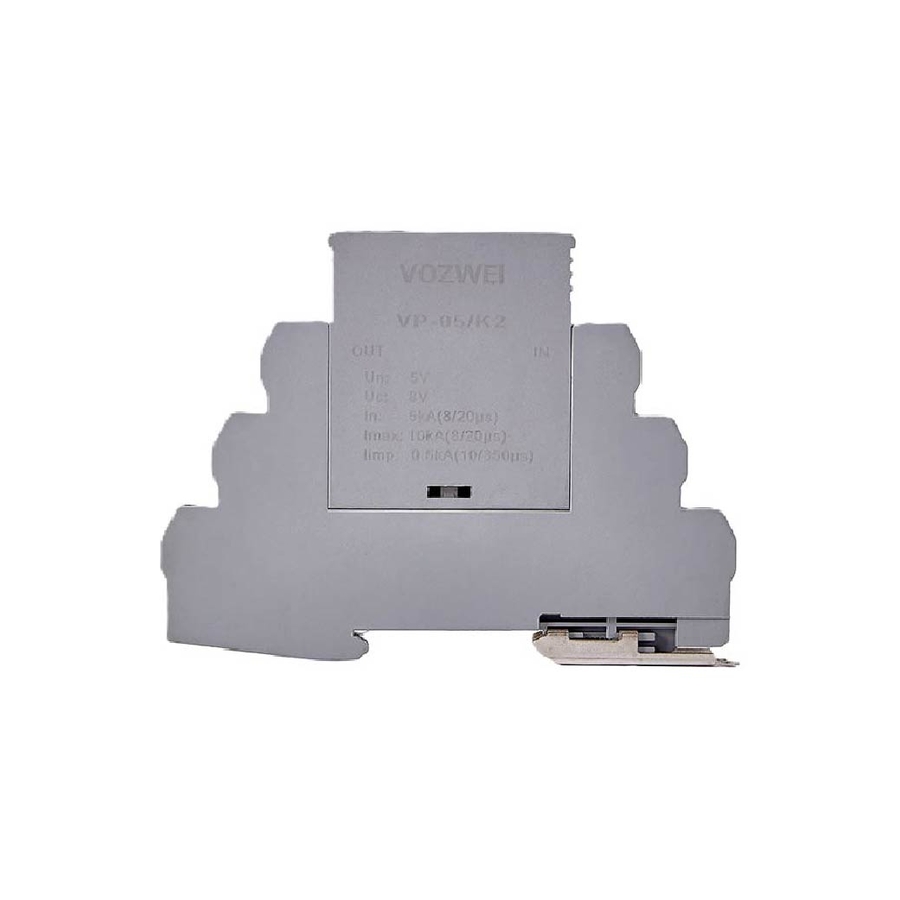

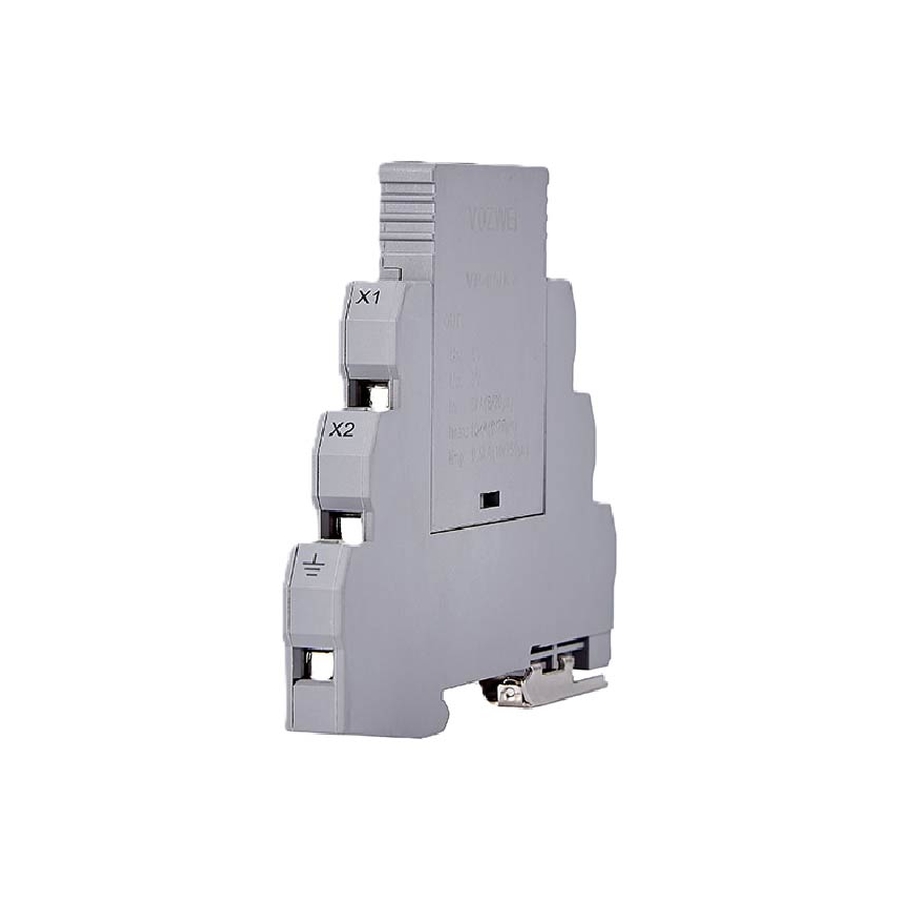

VP-05K2, DC8V SPD

  • Online hot-swappable capability
  • High current-carrying capacity, low limiting voltage, fast response time
  • Low transmission attenuation, maximum transmission rate: 10 Mbps
Contact us

Technical parameters

SPD according to EN/IEC 61643-11Type 3
Protection modeCommon mode, differential mode
Protection lineL-L&L-PE
Nominal operating voltage UnDC 5V
Max. continuous operating voltage UcDC 8V
Impact limit voltage (1 kV/ &mu;s)<20V
Impulse current Iimp (10/350 &mu;s)0.5kA
Nominal discharge current In (8/20 &mu;s)5kA
Max. discharge current Imax (8/20 &mu;s)10kA
Leakage current700 mA
Normal/Fault IndicationGreen/Red
Installation method35mm DIN rail
Housing materialPBT UL94-V0
Protection classIP20
Outline dimensions (without terminal)90mm×12.5mm×74.5mm (tolerance&plusmn;1mm)
Insertion loss (at maximum load)<1 dB
Cut-off frequency3 Mbps
Max. series impedance1 &Omega;
Wiring methodCrimping frame connection
Grounding methodCompatible with rail grounding or dedicated port grounding

Tips: For more information, please refer to the user manual or specification sheet in the following documentation.
