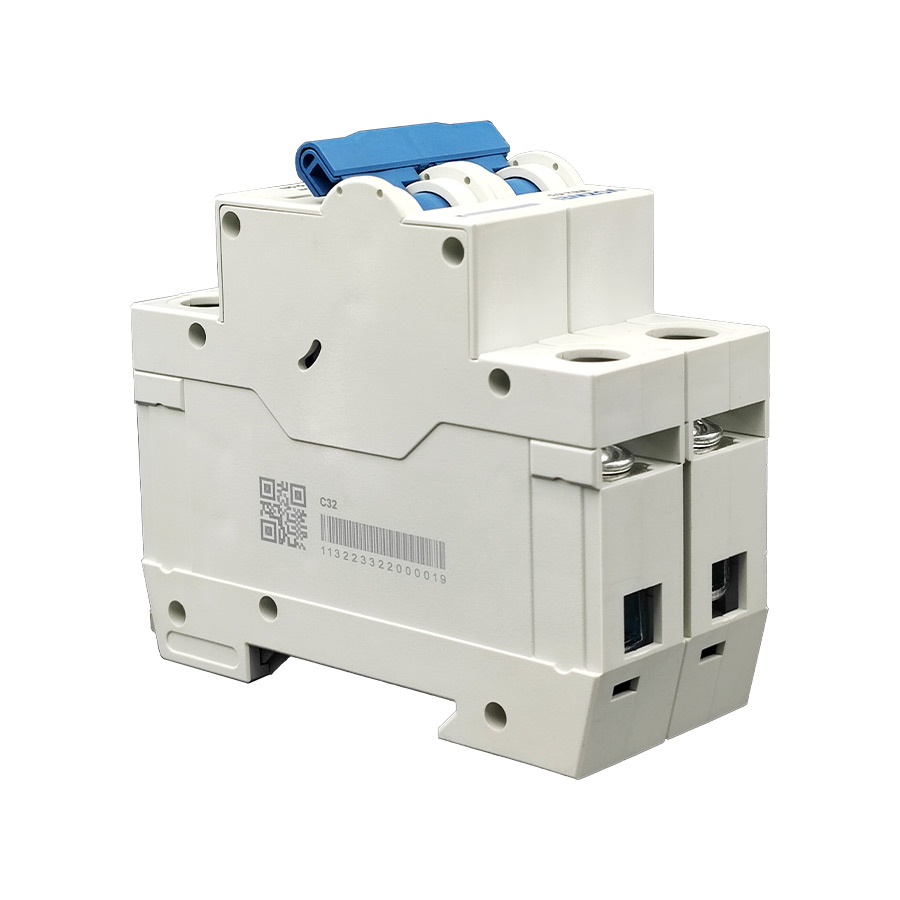

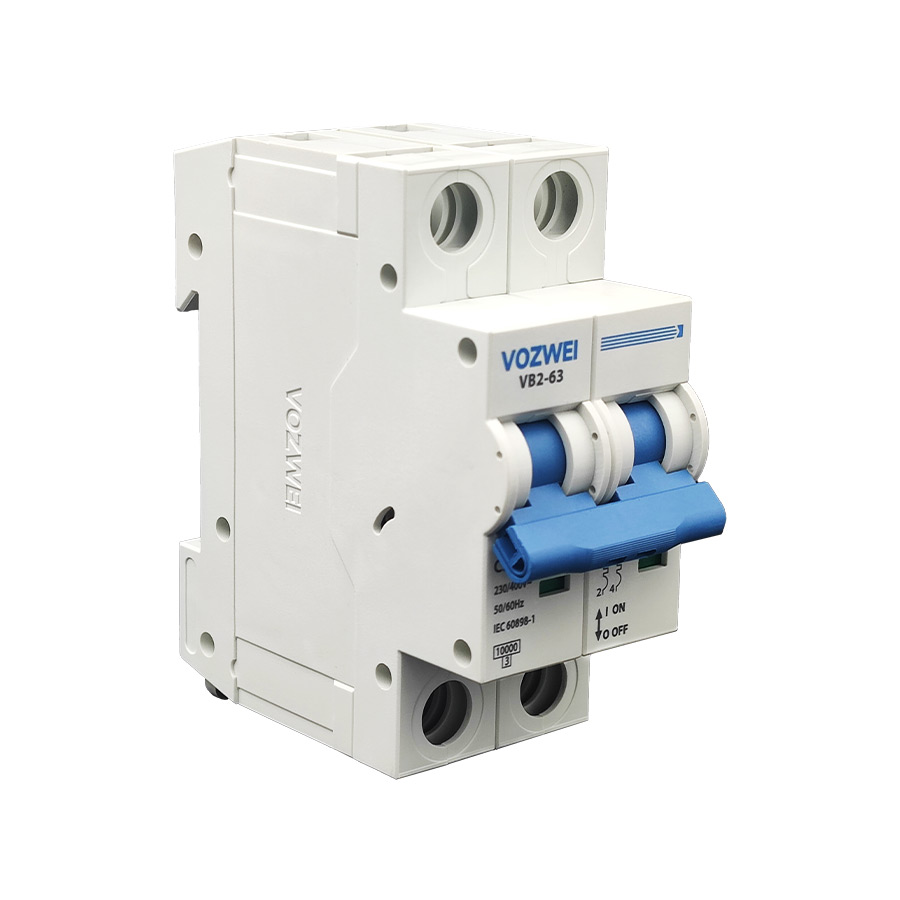

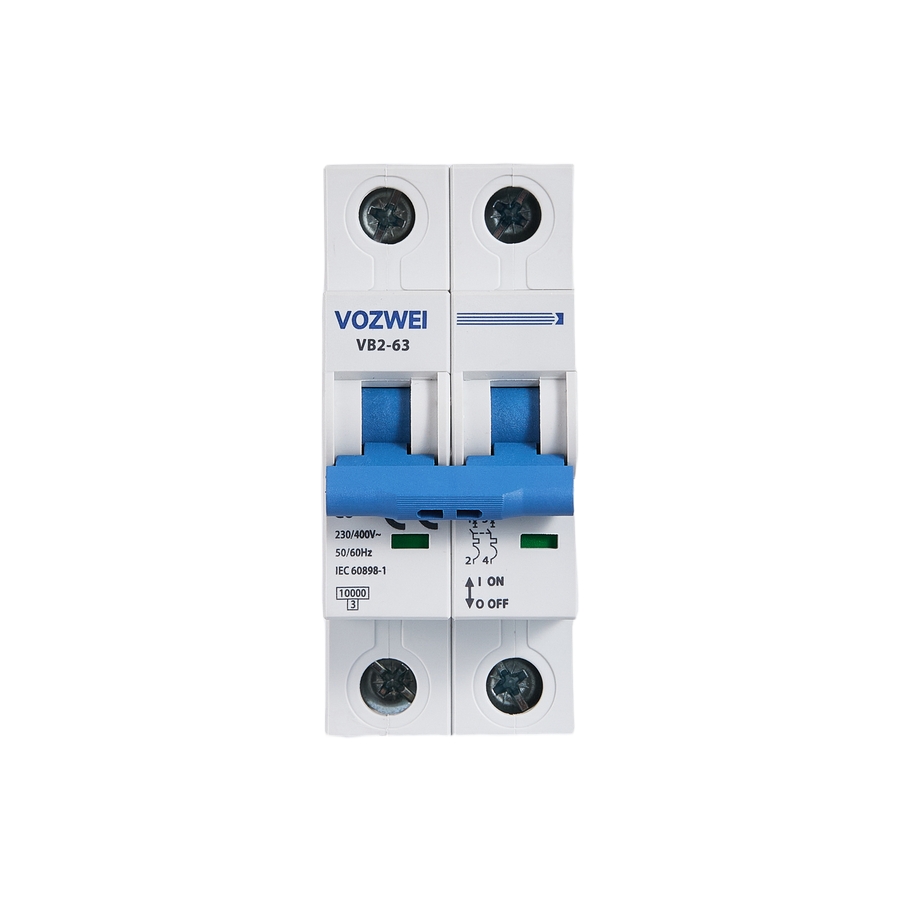

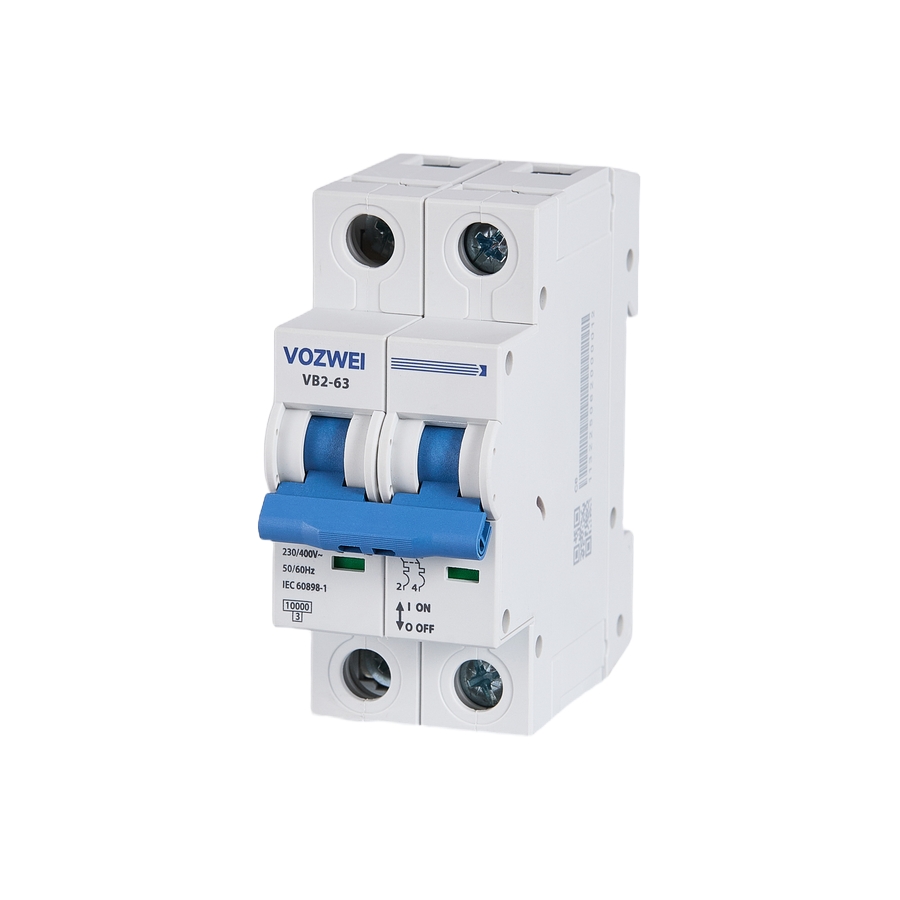

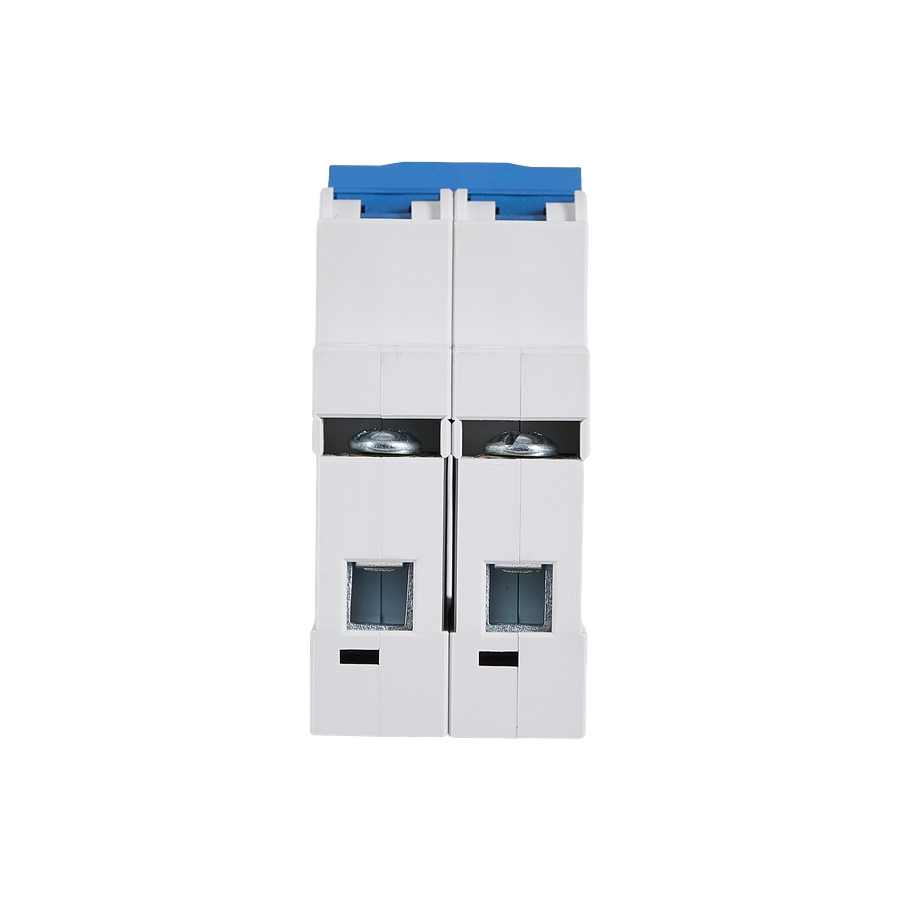

VB2-63 Series 2P Miniature Circuit Breaker (MCB)
The VB2-63 Series is a miniature circuit breaker (MCB) for low-voltage circuit protection, available in 1P to 4P configurations with rated current from 1A to 63A. It supports 230/400VAC and 48/60VDC (1P/2P) operation, with a rated impulse withstand voltage of 6kV and Icn up to 10kA.
Highlights
- Icn up to 10kA for circuit protection
- Rated impulse withstand voltage up to 6.0kV
- Fast contact closing for extended electrical life
- Dual tunnel and busbar terminals for flexible wiring
- Detachable phase separators for flexible insulation configuration
Product Information
- Rated current (In): 1A, 2A, 3A, 4A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 35A, 40A, 50A, 63A
- Rated operational voltage (Ue): AC230/400V (50/60Hz), DC48/60V
- Rated insulation voltage (Ui): 690V
- Rated impulse withstand voltage (Uimp): 6.0kV
- Number of poles: 2P
- Environmental Tolerance: High voltage resistance up to Uimp 6.0kV
- Standard Compliance: IEC 60898-1
- Wiring & Mounting: Tunnel and busbar terminal options (1.0–25mm² capacity)
- Quick-closing mechanism ensures reliable operation and extends contact service life
- Low internal temperature-rise design for superior energy efficiency and thermal safety
- Supports high impulse withstand voltage up to 6.0kV against grid surge impacts
- Dual tunnel and busbar terminal design enables fast, secure, and flexible wiring
- Modular structure allows effortless combination and versatile installation options
| Rated Current | 1A, 2A, 3A, 4A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 35A, 40A, 50A, 63A |
| Rated Operational Voltage (Ue) | 230/400 VAC, 48/60 VDC |
| Rated insulation voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6.0 kV |
| Number of Poles | 2P |
| Rated Frequency | 50/60 Hz |
| Operating performance (Mechanical Endurance) | 15000 Cycle |
| Operating performance (Electrical Endurance) | 10000 Cycle |
| Standard | IEC 60898-1 |
| Terminal Type | Tunnel type, Bus-bar |
| Connecting Capacity | 1.0 mm²…25 mm² |
| Tightening Torque | 2.5 N·m |
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-VB2-MCB-Catalog.pdf | Product Catalog | 1.41 MB |
Q: What are the rated voltage and current ranges for the VB2-63 series 2P MCB?
A: The VB2-63 series 2P MCB supports rated operational voltages of AC230/400V (50/60Hz) and DC48/60V, covering a wide rated current range from 1A to 63A (1A, 2A, 3A, 4A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 35A, 40A, 50A, and 63A).
Q: What impulse withstand capability does the VB2-63 series 2P MCB provide?
A: The VB2-63 series features a high rated impulse withstand voltage (Uimp) of up to 6.0kV and a rated insulation voltage (Ui) of 690V, effectively protecting circuits against grid voltage surges.
Q: What standard does the VB2-63 series 2P MCB comply with?
A: The VB2-63 series 2P MCB is manufactured and tested in strict accordance with the IEC 60898-1 international standard for low-voltage electrical circuit breakers.
Q: How does the quick-closing mechanism benefit the VB2-63 series 2P MCB?
A: The quick-closing mechanism reduces contact wear during manual or automatic switching operations, ensures swift circuit breaking under fault conditions, and significantly extends the electrical service life of the breaker.
Q: What terminal types and connection capacities are supported by the VB2-63 2P MCB?
A: The VB2-63 2P MCB supports dual tunnel type and busbar type wiring structures. It accommodates wire cross-sections from 1.0mm² to 25mm² with a recommended tightening torque of 2.5 N·m.
Q: What is the operating lifespan of the VB2-63 series 2P MCB?
A: The VB2-63 series 2P MCB delivers high endurance performance, rated for 15000 mechanical operation cycles and 10000 electrical operation cycles.
