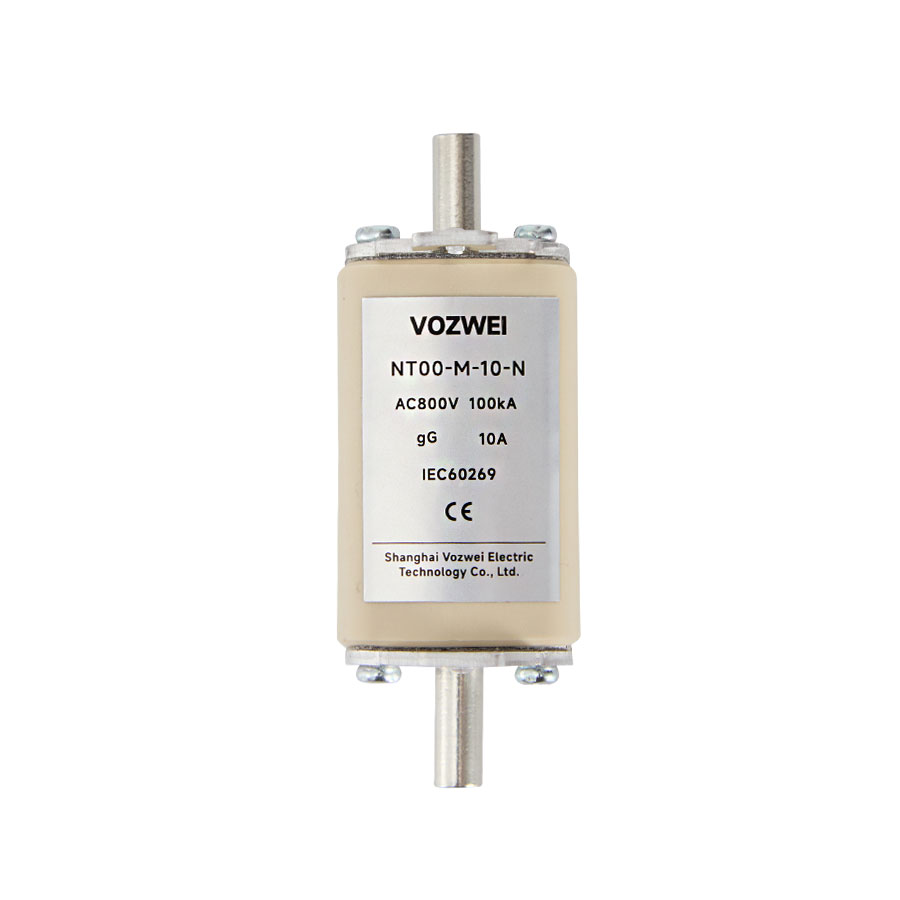

NT series Fuses
The NT series are high-capacity industrial fuses rated from 2A to 1600A, supporting up to AC800V with breaking capacities up to 120kA, delivering reliable protection for low-voltage power systems.
Highlights
- Wide current range from 2A to 1600A
- Industrial fuses for heavy-duty circuit protection
- High breaking capacity up to 120kA at AC800V
- Multiple fuse classes (gG/gL, aM, and aR) for flexible application
Product Information
- Rated current (In): 2A to 1600A
- Rated voltage: AC800V
- Rated breaking capacity: up to 120kA
- Fuse classes: gG/gL, aM, and aR
- Standard Compliance: IEC 60269
- Wide-range industrial fuses for heavy-duty circuit protection
| NT-M-N AC800V | ||||||
| Item No. | NT00C-M-*-N | NT00-M-*-N | NT1-M-*-N | NT2-M-*-N | NT3-M-*-N | NT4-M-*-N |
| Size | 00 | 00 | 1 | 2 | 3 | 4 |
| Rated voltage(V) | AC800V | |||||
| Rated current(A) (*rep:) | 2, 4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100 | 2, 4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125 | 63, 80, 100, 125, 160, 200 | 80, 100, 125,160, 200, 224, 250, 300, 315 | 200, 250, 300, 315, 355, 400, 425, 500 |
630, 800, 1000, 1250, 1400, 1600
|
| Rated breaking capacity(kA) | 100kA(2~63A) 50kA(80~100A) | 100kA(2~63A) 50kA(80~125A) | 100kA(63~100A) 50kA(125~200A) | 100kA | 100kA | 100kA |
| NT-H-N AC800V | ||||||
| Item No. | NT00-H-*-N | NT1-H-*-N | NT2-H-*-N | NT3-H-*-N | ||
| Size | 00 | 1 | 2 | 3 | ||
| Rated voltage(V) | AC800V | |||||
| Rated current(A) (*rep:) | 6, 10, 16, 20, 25, 32, 35, 40, 50, 63 | 25, 35, 40, 50, 63, 80, 100, 125, 160, 200 | 80, 100, 125, 160, 200, | 160, 200, 250, 300, 315, 355, 400 | ||
| Rated breaking capacity(kA) | 120kA | |||||

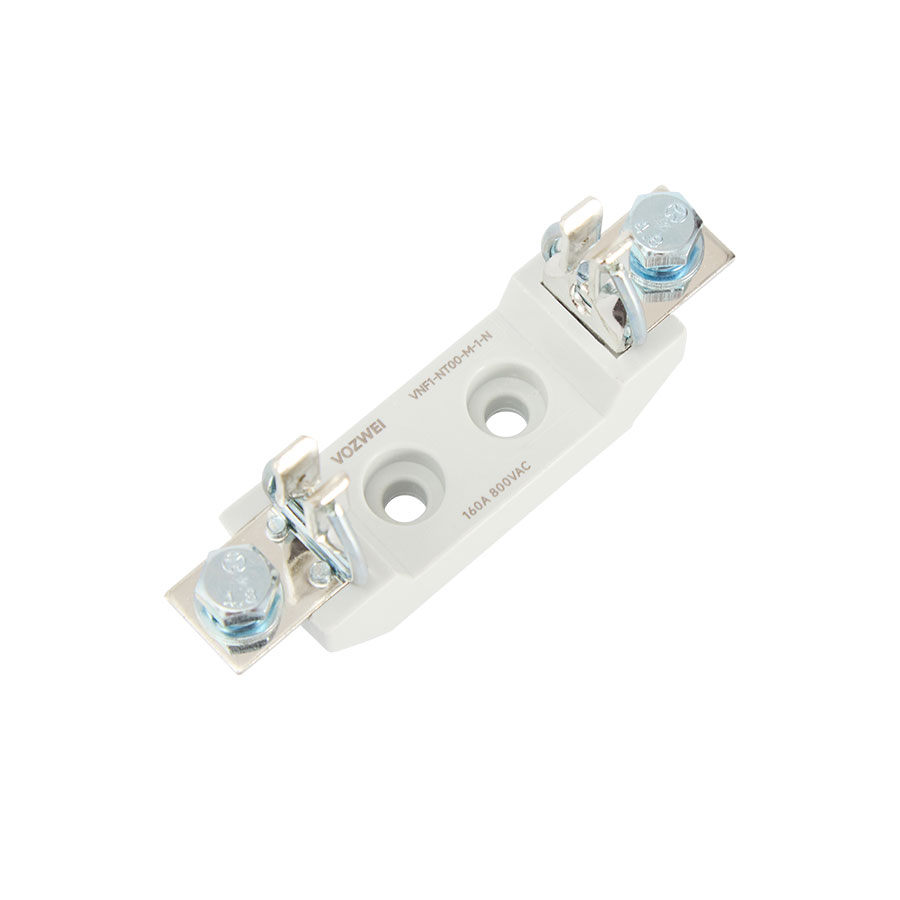

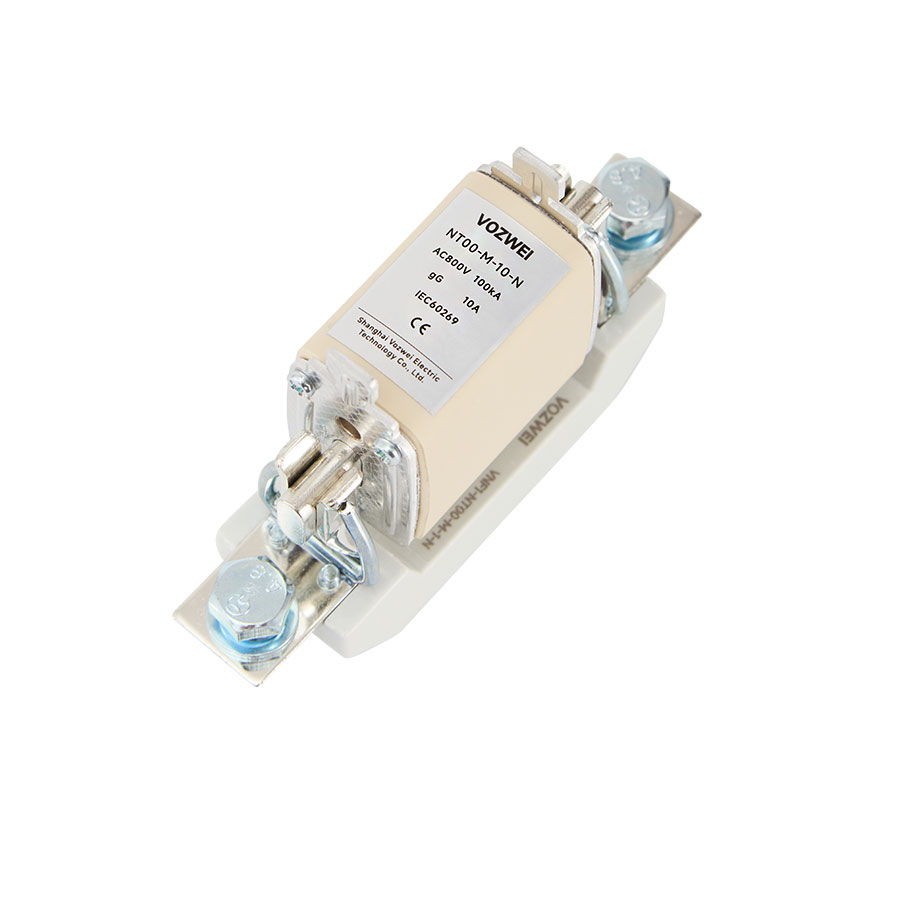

| Fuse Holder | ||||||
| Item No. | VNF1-NT*-M-1/2-N | |||||
| Size | 00C/00/1/2/3/4 | |||||
| Rated voltage(V) | AC800V | |||||
| Rated current(A) (*rep:) | 160, 250, 400, 630, 1250, 1600 | |||||
| Terminal stud | M8/M10/M12/M16 | |||||
| Connection style | One pole for double terminal connection |
| File name | Type | Size | Actions |
|---|---|---|---|
| VOZWEI-Fuses-Catalog.pdf | Product Catalog | 0.36 MB |
Q: What is the rated current range of the NT series fuses?
A: The NT series fuses are rated from 2A up to 1600A, covering a broad range of low-voltage power distribution applications.
Q: What voltage ratings do the NT series fuses support?
A: They support operating voltages up to AC800V.
Q: What is the breaking capacity of the NT series fuses?
A: They provide a breaking capacity up to 120kA for reliable fault interruption.
Q: What applications are the NT series fuses designed for?
A: They are designed for reliable overcurrent and short-circuit protection in low-voltage power systems, delivering high reliability and stable operation.
Q: What standard do the NT series fuses comply with?
A: They are designed in accordance with the IEC 60269 international standard.
