The VPM385-40 (1U) is a slim-profile Type 2 AC SPD designed for space-saving power distribution. With a Uc of 385V AC, it handles a nominal In of 20 kA and an Imax of 40 kA (8/20 μs). Featuring Up ≤ 1.8 kV, it is fully EN/IEC 61643-11 compliant. Its 1U compact design makes it the ideal choice for high-density electrical panels and modular industrial equipment.

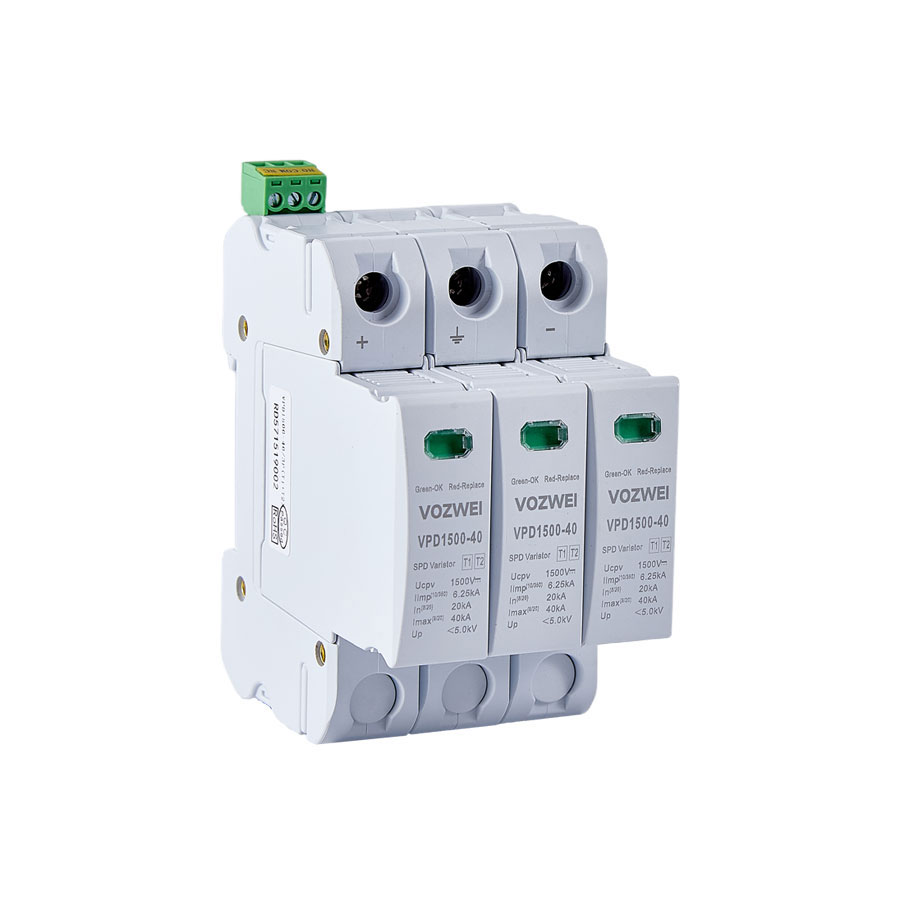

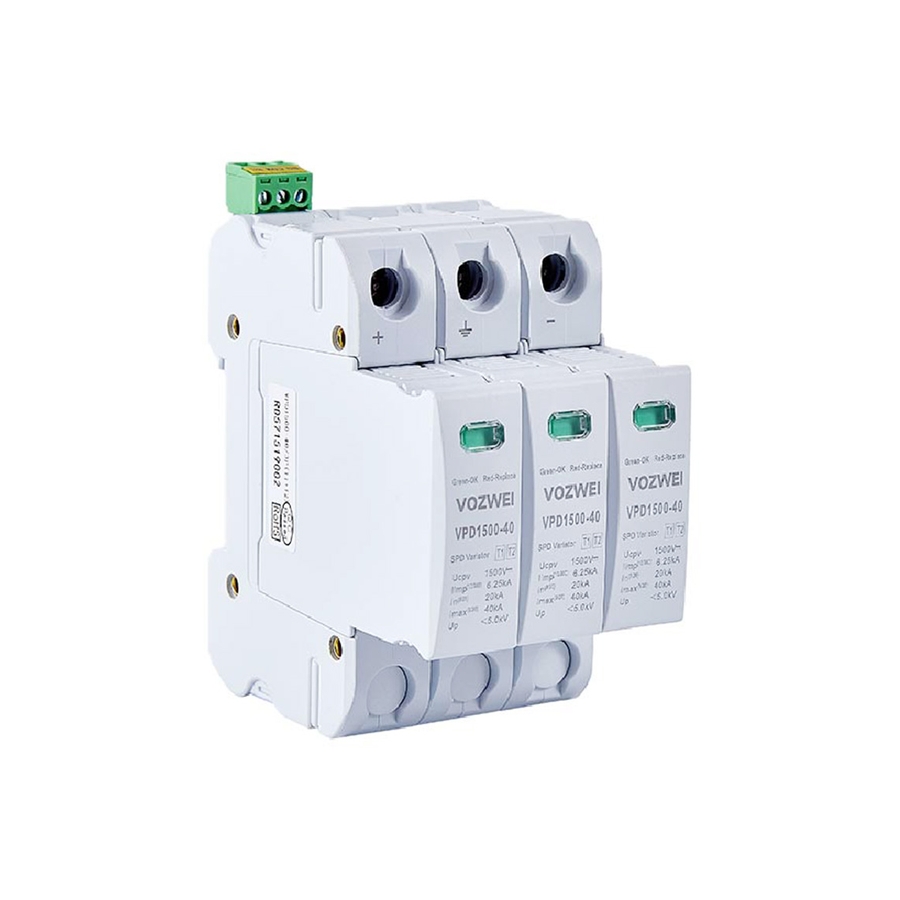

The VPD1500-40 is a specialized Type 1+2 PV SPD for high-voltage solar infrastructures. With a Uc of 1500V DC, it manages an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). Featuring Up ≤ 5.0 kV, it is fully EN/IEC 61643-11 compliant. Designed to safeguard 1500V DC systems against both direct lightning impacts and induced surges.

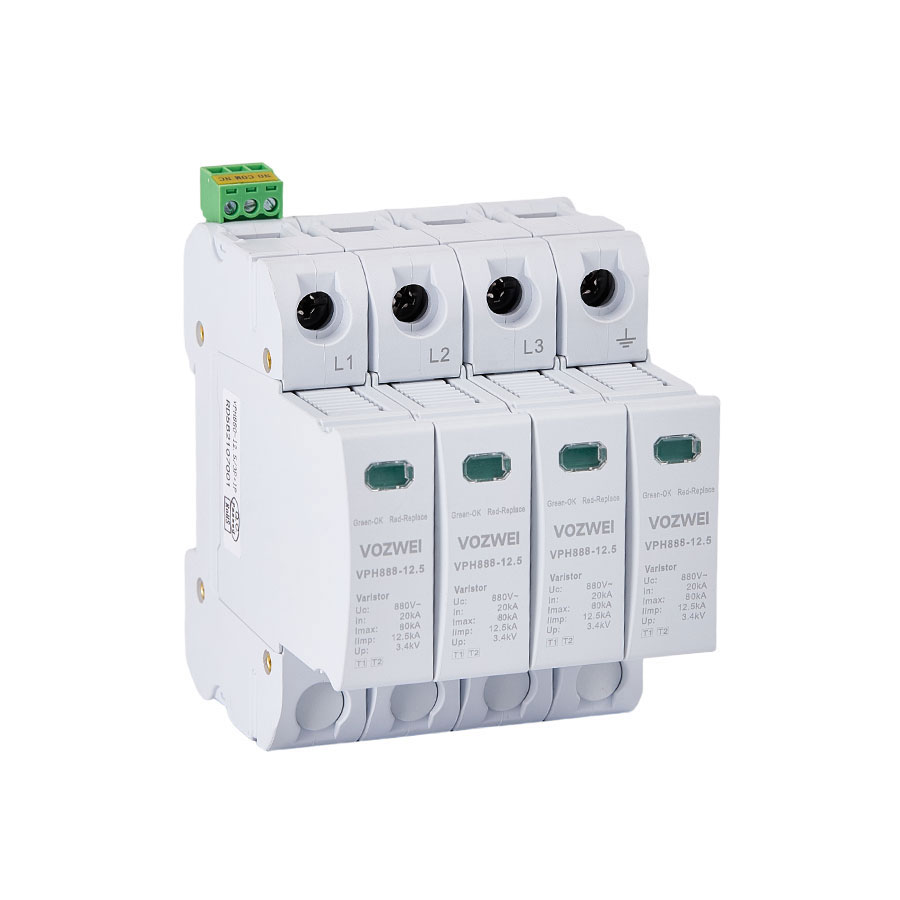

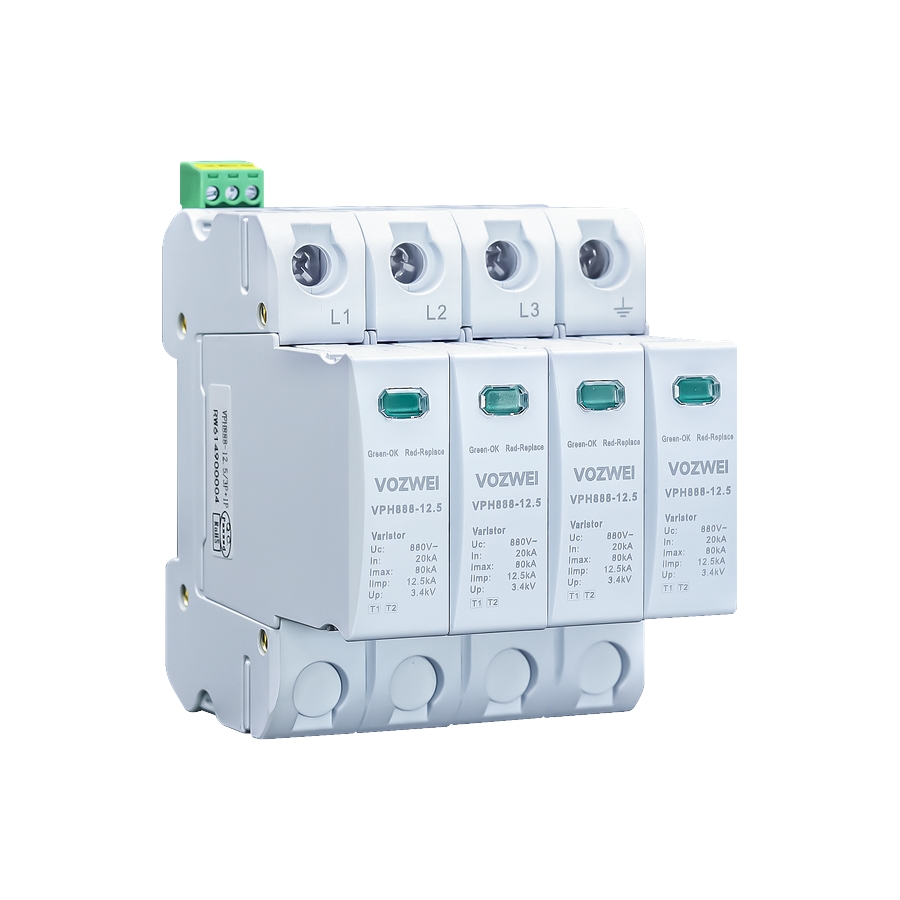

The VPH888-12.5 is a high-voltage Type 1+2 AC SPD designed for comprehensive lightning and surge protection. With a Uc of 880V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 80 kA (8/20 μs). Featuring Up ≤ 3.4 kV, it is fully EN/IEC 61643-11 compliant. Ideal for demanding PV AC systems and high-voltage industrial infrastructure.

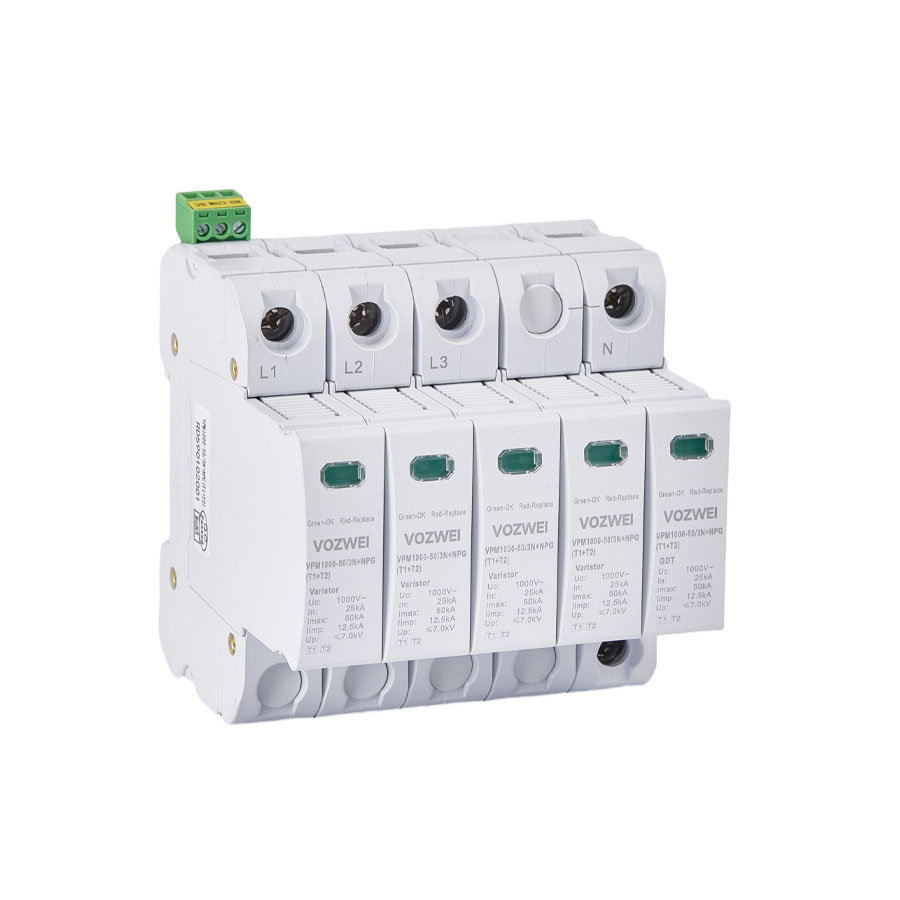

The VPM1000-50 is a premier Type 1+2 AC SPD for ultra-high voltage protection. Supporting Uc up to 1000V AC, it handles an Iimp of 12.5 kA (10/350 μs) and an Imax of 50 kA (8/20 μs). Featuring Up ≤ 7.0 kV, it is fully EN/IEC 61643-11 compliant. Engineered for maximum safety in large-scale PV AC-side and high-voltage industrial power systems.
The VPD750-40 is a professional Type 2 PV SPD optimized for solar energy protection. Featuring a Uc of 1000V DC, it handles a nominal discharge current (In) of 20 kA and a max capacity (Imax) of 40 kA (8/20 μs). With Up ≤ 3.2 kV, it ensures the safety of inverters and solar arrays. Fully EN/IEC 61643-11 compliant and designed for long-term outdoor reliability.
The VPD1000-40 is a high-voltage Type 2 PV SPD engineered for advanced solar protection. With an extended Uc of 1300V DC, it handles an In of 20 kA and an Imax of 40 kA (8/20 μs). Featuring Up ≤ 4.0 kV, it provides essential safety for high-string voltage inverters. Fully EN/IEC 61643-11 compliant and optimized for large-scale commercial solar farm reliability.
The VPD1500-40 is an ultra-high voltage Type 2 PV SPD built for the next generation of solar infrastructure. Supporting a Uc of 1800V DC, it handles an In of 20 kA and Imax of 40 kA (8/20 μs). Featuring Up ≤ 5.5 kV, it provides critical safety for 1500V DC systems. Fully EN/IEC 61643-11 compliant and ideal for large-scale utility solar plants.
The VPD2000-40 is a specialized Type 2 PV SPD designed for extreme-voltage DC applications. Supporting an industry-leading Uc of 2450V DC, it handles an In of 20 kA and an Imax of 40 kA (8/20 μs). Featuring Up ≤ 8.5 kV, it is fully EN/IEC 61643-11 compliant. Ideal for future-ready, high-voltage solar arrays and specialized industrial DC power distribution systems.

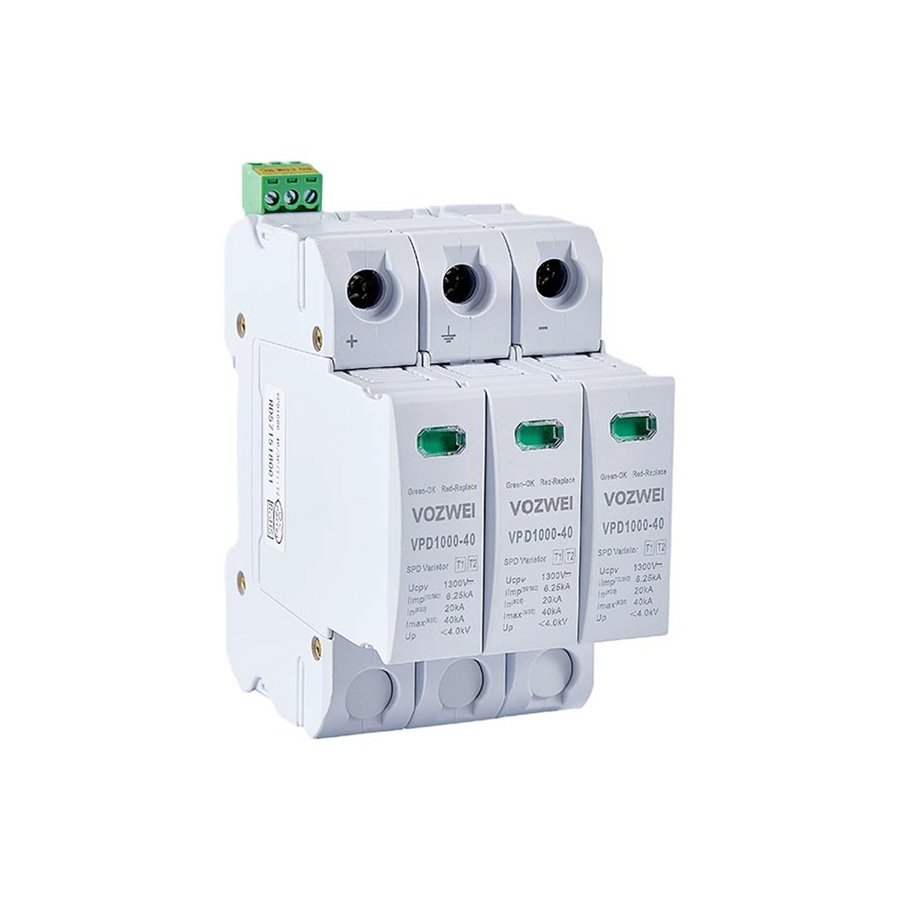

The VPD1000-40 is a high-voltage Type 1+2 PV SPD providing dual-layered lightning and surge defense. Featuring a Uc of 1300V DC, it handles an Iimp of 6.25 kA (10/350 μs) and an Imax of 40 kA (8/20 μs). With Up ≤ 4.0 kV, it is fully EN/IEC 61643-11 compliant. Optimized for high-string voltage solar systems requiring protection against direct and indirect lightning strikes.
Q: Which VOZWEI VPH, VPM and VPD SPD series are available?
A: VOZWEI offers AC, DC and signal SPDs under EN/IEC 61643-11. VPH is Type 1 (VPH385-30: Iimp 30kA 10/350μs, Up ≤ 1.9kV); VPM spans AC Type 2 and 1+2; VPD covers DC, from general DC such as VPD48-40 to PV DC up to Uc 2450V.
Q: What is the VOZWEI VPM385-40 (1U) rack-mountable SPD?
A: VOZWEI VPM385-40 (1U) is a Type 2 AC SPD for Uc 385V AC, built on a slim 1U chassis for rack mounting and rated In 20kA, Imax 40kA. The pluggable anti-detachment modules, fault indication and remote signaling suit high-density panels; the -1UN version adds network management.
Q: How do VOZWEI VPH Type 1 and VPM Type 1+2 differ?
A: VOZWEI VPH Type 1 SPDs like VPH385-30 are 10/350μs-tested for direct lightning at the main inlet. VOZWEI VPM Type 1+2 units (for example VPM1000-50 (T1+T2)) combine Type 1 and Type 2 in one device, with Iimp 12.5kA and Imax 50kA.
Q: What are the main differences between VOZWEI VPM and VPD families?
A: The VOZWEI VPM family is built for AC, covering Type 2 units from Uc 275V AC to 1000V AC and Type 1+2. The VOZWEI VPD family is the DC SPD line: general DC units such as VPD48-40, plus PV DC Type 2 and 1+2 from Uc 1000V to 2450V DC.
Q: Which VOZWEI VPD suits PV DC side applications?
A: Select a VOZWEI VPD by string voltage and protection type. For Type 2 only: VPD750-40 (Uc 1000V DC, 2P), VPD1000-40 (Uc 1300V DC), VPD1500-40 (Uc 1800V DC) or VPD2000-40 (Uc 2450V DC). For Type 1+2: VPD1000-40 or VPD1500-40 (T1+T2) with Iimp 6.25kA.
Q: What do In, Imax, Iimp and Up mean on VOZWEI VPM385-40?
A: On the VOZWEI VPM385-40, In is nominal 8/20μs discharge current handled repeatedly, Imax is maximum 8/20μs discharge current survived once, and Up is voltage protection level. Iimp is 10/350μs lightning impulse for Type 1/1+2 testing; VPM385-40 is In 20kA, Imax 40kA, Up ≤ 1.8kV.
Q: Which VOZWEI VPX05K05X and VP-05 SPDs suit signal lines?
A: VOZWEI VPX05K05X covers signal (Uc DC6V) and PoE (Uc DC60V) with Up L/L ≤ 40V (C2 8/20μs) and ≤ 20V (C3 1kV/μs), L/PE ≤ 300V. VP-05 has Up < 100V (K2), L-L ≤ 30V, L-PE ≤ 600V (K4); VP-24 has Up < 150V.
Q: Is a VOZWEI VPM SPD a replacement for a VOZWEI MCB?
A: No. A VOZWEI VPM SPD limits transient overvoltage but does not carry or interrupt load current, so it cannot replace a VOZWEI MCB or MCCB. It is installed in parallel with the circuit and needs upstream overcurrent protection, in most cases a backup fuse.
